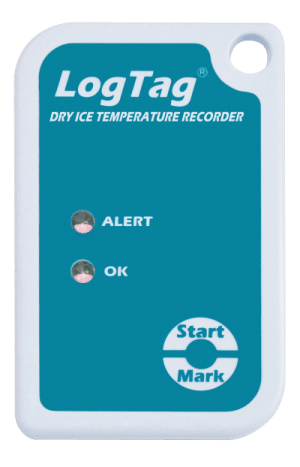

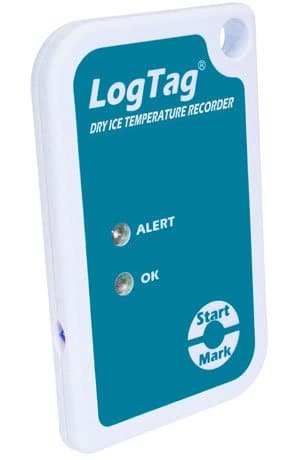

LogTag TRIL-8 Dry Ice Temperature Data Logger

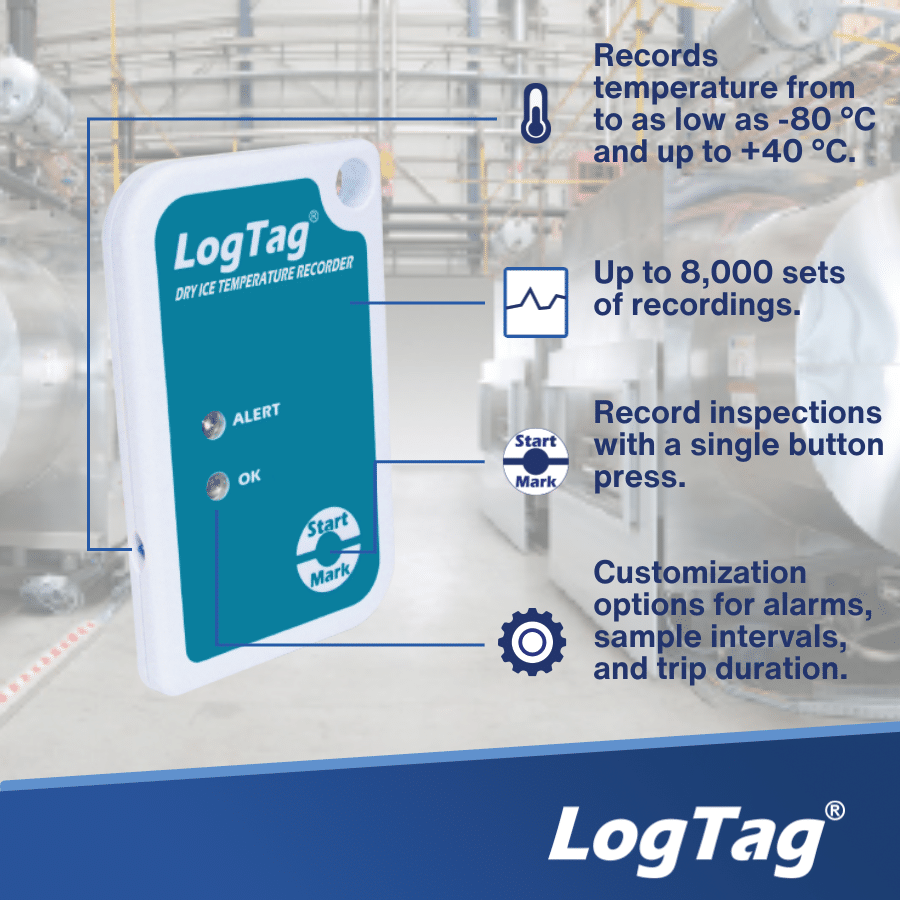

The LogTag TRIL-8 is a reusable, probe-free data logger designed to monitor temperature-sensitive products transported in packaging containing dry ice.
The logger measures temperatures from -80°C to +40°C and stores up to 8,031 time-stamped readings. Its compact design allows it to be placed directly inside the shipment without requiring an external probe.
- Direct temperature monitoring from -80°C to +40°C
- Designed for reusable dry ice shipment monitoring
- Stores 8,031 time-stamped temperature readings
Designed for Dry Ice Shipments
Monitor products transported in insulated packaging containing dry ice cooling agents.
No External Probe Required
Place the compact logger directly inside the shipment to record its surrounding temperature.
Configurable Alerts
Set high and low temperature limits to identify excursions from the required transport conditions.
Reusable Across Multiple Trips
Use the TRIL-8 across multiple shipments, subject to its cumulative low-temperature exposure limit.
The TRIL-8 is designed for monitoring temperature-sensitive products transported at low temperatures using dry ice.
Typical applications include:
- Pharmaceutical transportation
- Biopharmaceutical distribution
- Vaccine and clinical trial shipments
- Biological sample transportation
- Blood and organ transportation
- Chemical transportation
- Laboratory sample distribution
- Manufacturing and distribution
- Dry ice shipping containers
- Low-temperature cold chain monitoring
The logger is rated for a total accumulated exposure of up to 1,000 hours at -80°C across multiple trips.
The TRIL-8 provides self-contained temperature monitoring for dry ice shipments without requiring a separate external probe.
- Temperature measurement from -80°C to +40°C
- Compact, probe-free design
- Memory for 8,031 temperature readings
- Configurable sampling intervals from one minute to several hours
- Push-button or scheduled recording start
- Optional start delay
- Configurable high and low temperature alerts
- Flashing OK and ALERT status indicators
- Built-in real-time clock
- Time and date stamp for every reading
- Push-button inspection marking
- Full memory download typically completed in under five seconds
- IP65-rated polycarbonate enclosure
- Fixed low-temperature lithium battery
- Rated for 1,000 accumulated hours at -80°C
- Compatible with LogTag Analyzer software
- Recalibration available to improve accuracy for specific requirements

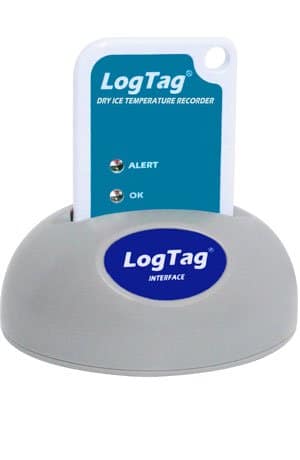

An LTI-HID LogTag interface cradle is required to configure the logger and download recorded data. The interface is available separately.
| Specification | TRIL-8 |
|---|---|
| Temperature measurement range | -80°C to +40°C |
| Operating temperature range | -80°C to +40°C |
| Storage temperature range | -20°C to +40°C |
| Temperature accuracy | Better than ±1°C from -30°C to +20°C; varies outside this range |
| Temperature resolution | Better than 0.1°C from -80°C to 0°C; varies at higher temperatures |
| Sensor response time | Typically less than five minutes in moving air |
| Recording capacity | 8,031 temperature readings |
| Sampling interval | Configurable from one minute to several hours |
| Start options | Push-button or scheduled start, with an optional delay |
| Environmental protection | IP65 |
| Low-temperature exposure | Up to 1,000 accumulated hours at -80°C across multiple trips |
| Battery | Fixed 3.6V low-temperature lithium battery |
| Size and weight | 86 x 54.5 x 8.6mm; 33g |
Temperature accuracy is better than ±1.2°C between -45°C and -30°C and between +20°C and +40°C. Accuracy is better than ±1.7°C between -80°C and -45°C.
Why Choose the LogTag TRIL-8?
The LogTag TRIL-8 provides a straightforward way to monitor products transported in dry ice without running a probe into the shipping container.
Its compact, self-contained design can be positioned directly alongside the shipment, while its specialist battery allows operation at temperatures as low as -80°C. Configurable recording intervals and alerts help adapt the logger to different products, routes and acceptance criteria.
The TRIL-8 can be reused across multiple trips and stores 8,031 readings for detailed analysis. Recorded data can be downloaded through a LogTag interface cradle and reviewed using LogTag Analyzer.
DOWNLOAD
LogTag TRIL-8 Technical Brochure
Download the manufacturer’s brochure for complete performance specifications, low-temperature exposure limits and operating information.
