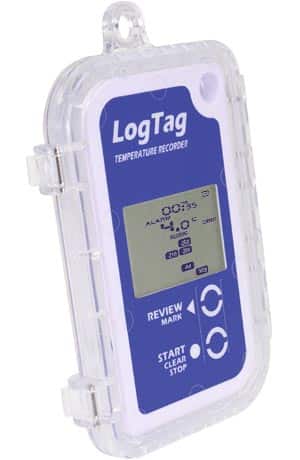

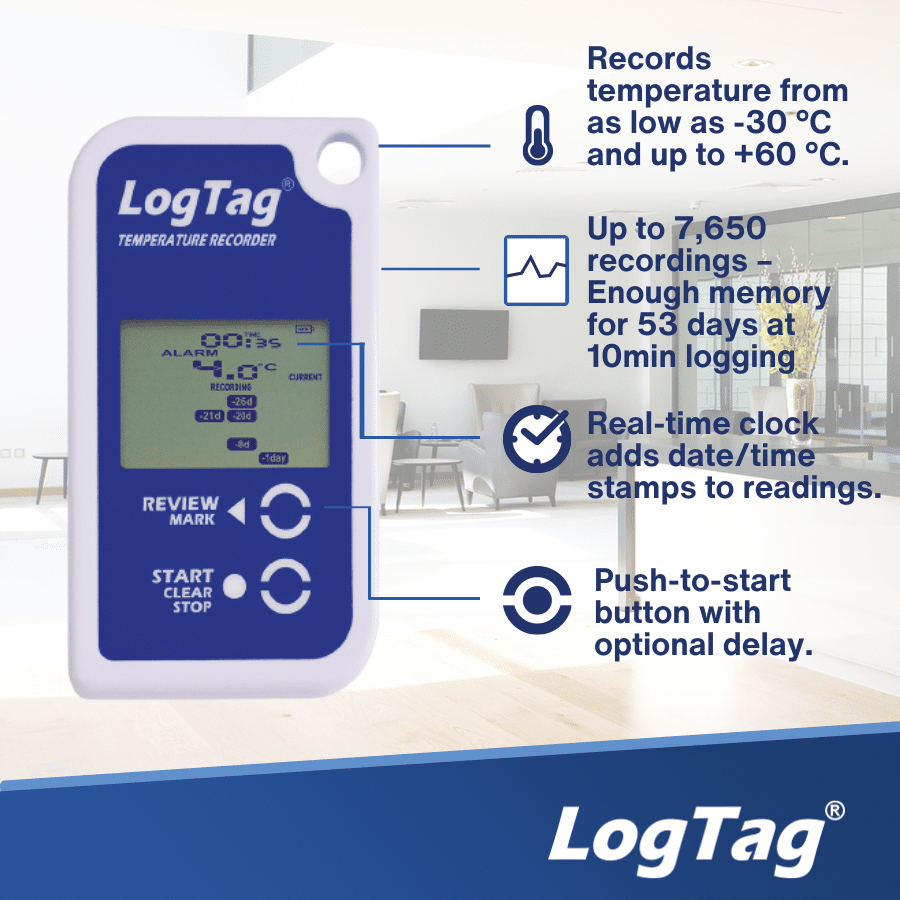

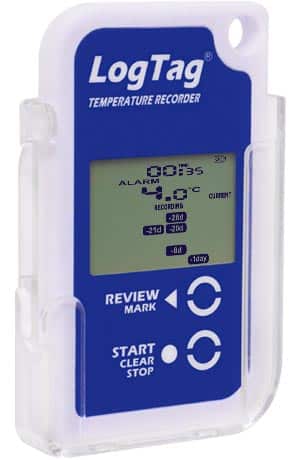

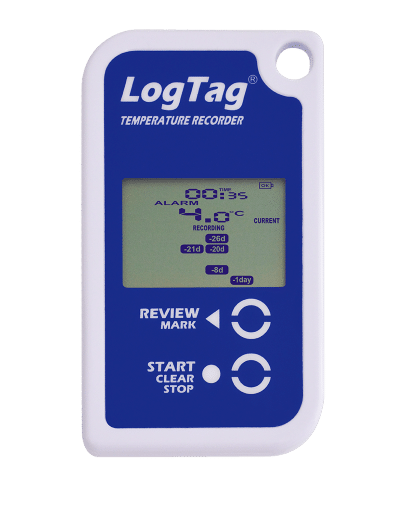

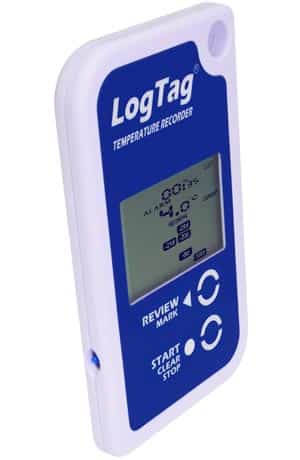

LogTag® TRID30-7F Temperature Data Logger
The LogTag TRID30-7F is a multi-use temperature data logger with an integrated display for monitoring refrigerators, cold rooms, storage areas and temperature-controlled transportation.
Users can view the current temperature alongside alarm and summary information for the previous 30 days without downloading the logger. Its internal memory stores up to 7,770 readings for detailed analysis and reporting.
- Temperature monitoring from −30°C to +60°C
- On-screen statistics and alarm history for up to 30 days
- Stores 7,770 time-stamped temperature readings
30-Day On-Screen History
Review daily minimum and maximum temperatures, alarm triggers and excursion durations directly on the display.
Immediate Status Checks
See the latest temperature and current recording status without connecting the logger to a computer.
Configurable Alerts
Set temperature limits to provide a clear visual warning when recorded conditions move outside the required range.
Detailed Downloadable Records
Download the complete dataset for charting, analysis, reporting and export using LogTag Analyzer.
The TRID30-7F is suited to static and transport applications where users need to check current conditions and recent temperature history directly from the logger.
Typical applications include:
- Laboratory refrigerators and freezers
- Pharmacy and medical refrigerators
- Vaccine storage and transportation
- Cold rooms and refrigerated storage
- Pharmaceutical and healthcare distribution
- Food storage and transportation
- Temperature-controlled containers
- Clinical and research laboratories
- Production and processing areas
Its 30-day display is particularly useful for equipment that requires regular manual temperature checks.
The TRID30-7F combines detailed temperature recording with an integrated display for quick review of current conditions, daily statistics and alarm history.
- Internal temperature measurement from −30°C to +60°C
- Integrated LCD showing the latest temperature reading
- Daily minimum and maximum temperatures for up to 30 days
- On-screen alarm trigger and excursion-duration statistics
- Memory for 7,770 time-stamped temperature readings
- Configurable sampling intervals from 30 seconds to one hour
- Push-button or scheduled recording start
- Optional start delay of up to 18 hours
- User-configurable high and low temperature alerts
- REC indicator confirming recording status
- Push-button inspection marking
- Built-in real-time clock
- Full memory download typically completed in under five seconds
- IP65-rated when mounted or suspended vertically
- Fixed battery providing approximately two years of normal operation
- Compatible with LogTag Analyzer software
An LTI-HID LogTag interface cradle is required to configure the logger and download recorded data. The interface is available separately.
| Specification | TRID30-7F |
|---|---|
| Temperature measurement range | −30°C to +60°C |
| Operating temperature range | −30°C to +60°C |
| Storage temperature range | −10°C to +40°C |
| Temperature accuracy | Better than ±0.5°C from −20°C to +40°C; better than ±0.8°C elsewhere |
| Temperature resolution | 0.1°C across the operating measurement range |
| Recording capacity | 7,770 temperature readings |
| Display history | Up to 30 days of minimum, maximum, alarm and excursion-duration statistics |
| Sampling interval | Configurable from 30 seconds to one hour |
| Start options | Push-button or scheduled start, with an optional delay of up to 18 hours |
| Environmental protection | IP65 when mounted or suspended vertically |
| Battery | Fixed CR2450 3V LiMnO₂ battery |
| Size and weight | 93 × 54.5 × 8.6mm; 43g |
Battery life is approximately two years of normal operation following one year of storage, based on six-minute logging, monthly downloads and limited daily display use.
Why Choose the LogTag TRID30-7F?
The LogTag TRID30-7F makes routine temperature checks easier by presenting current conditions and the previous 30 days of statistics directly on its integrated display.
Users can review minimum and maximum temperatures, alarm triggers and excursion durations without downloading the logger. This makes it particularly suitable for refrigerators, cold rooms and other locations where staff need to complete regular visual checks.
For more detailed investigation and reporting, the logger stores 7,770 time-stamped readings that can be downloaded using a LogTag interface cradle and analysed through LogTag Analyzer.
DOWNLOAD
LogTag TRID30-7F Technical Brochure
Download the manufacturer’s brochure for complete performance specifications, display functions and operating information.
