LogTag TREX-8 External Probe Temperature Data Logger
The LogTag TREX-8 is a compact, multi-use temperature data logger designed for use with interchangeable external probes.
Separating the probe from the recorder makes it suitable for monitoring inside refrigerators, freezers, storage areas, containers and other locations where the logger needs to remain accessible outside the monitored environment.
- External temperature measurement from −40°C to +99°C
- Stores 8,031 time-stamped readings
- Interchangeable ST100 external temperature probes
External Probe Monitoring
Position the temperature probe inside the monitored space while keeping the logger accessible outside it.
Wide Temperature Range
Measure temperatures from −40°C to +99°C across chilled, frozen and higher-temperature applications.
Configurable Alerts
Set high and low temperature limits to help identify excursions from the required operating range.
Simple Data Retrieval
Download recorded readings quickly for charting, analysis and reporting using LogTag Analyzer.
The TREX-8 is designed for applications where temperature must be measured remotely from the position of the recorder.
Typical applications include:
- Laboratory refrigerators and freezers
- Pharmacy and medical storage
- Cold rooms and refrigerated storage
- Cold chain transportation
- Food storage and distribution
- Environmental and stability chambers
- Temperature-controlled containers
- Production and processing equipment
- Temperature mapping exercises
Different ST100 probe styles and cable lengths are available to suit the equipment, monitored space and installation method.
The TREX-8 combines remote temperature measurement with flexible configuration, interchangeable probes and straightforward data retrieval.
- Interchangeable LogTag ST100 external temperature probes
- External probe measurement range from −40°C to +99°C
- Recorder operating range from −40°C to +85°C
- Memory for 8,031 time-stamped temperature readings
- Configurable sampling intervals from 30 seconds to 18 hours
- Push-button or scheduled recording start
- Optional start delay of up to 72 hours
- Configurable high and low temperature alerts
- Flashing OK and ALERT status indicators
- Built-in real-time clock
- Push-button inspection marking
- Typical probe response time below two minutes in moving air
- Full memory download typically completed in under five seconds
- IP61-rated polycarbonate enclosure
- Fixed battery providing approximately two to three years of normal use
- Compatible with LogTag Analyzer software
- High-quality gold-plated probe connector
- FDA food-contact-rated PTFE probe cable

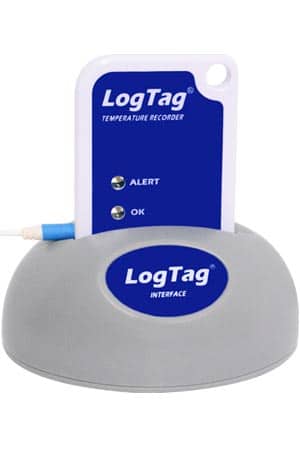

An LTI-HID interface cradle and compatible external probe are required and available separately.
| Specification | TREX-8 |
|---|---|
| External probe measurement range | −40°C to +99°C |
| Recorder operating range | −40°C to +85°C |
| Storage temperature range | −10°C to +55°C |
| Temperature accuracy | Better than ±0.5°C from −10°C to +40°C; varies outside this range |
| Recording capacity | 8,031 temperature readings |
| Sampling interval | Configurable from 30 seconds to 18 hours |
| Start options | Push-button or scheduled start, with an optional delay of up to 72 hours |
| Compatible probes | LogTag ST100 external temperature probes |
| Probe cable | FDA food-contact-rated PTFE coaxial cable |
| Standard cable lengths | 1.5m standard; 3m extended |
| Environmental protection | IP61 |
| Battery | Fixed CR2450 3V LiMnO₂ battery; typically 2–3 years of normal use |
Why Choose the LogTag TREX-8?
The LogTag TREX-8 offers an economical way to monitor temperatures remotely using an external probe, without requiring a complex continuous monitoring system.
Its interchangeable probe design makes it particularly useful for refrigerators, freezers and enclosed equipment where the sensing point and recorder need to be positioned separately. Configurable intervals, start options and alerts allow each logger to be prepared for a specific monitoring task.
Recorded data can be transferred using a LogTag interface cradle and reviewed in LogTag Analyzer, providing charts, statistics and exportable records for reporting or further investigation.
DOWNLOAD
LogTag TREX-8 Technical Brochure
Download the brochure for complete performance specifications, probe information and operating details.
