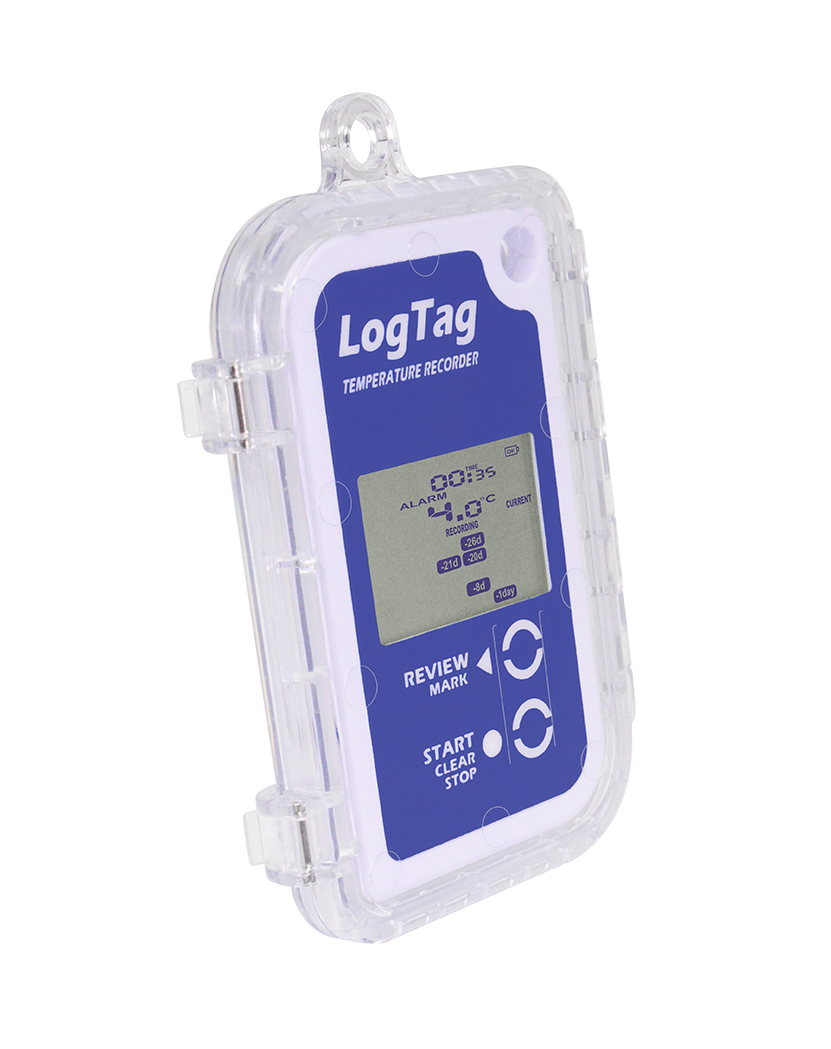

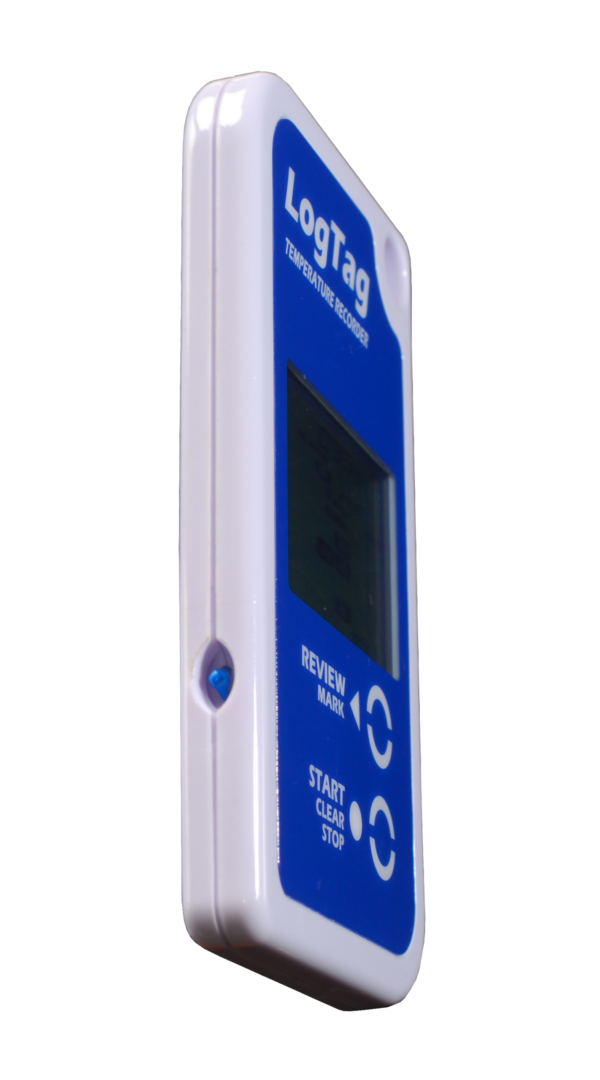

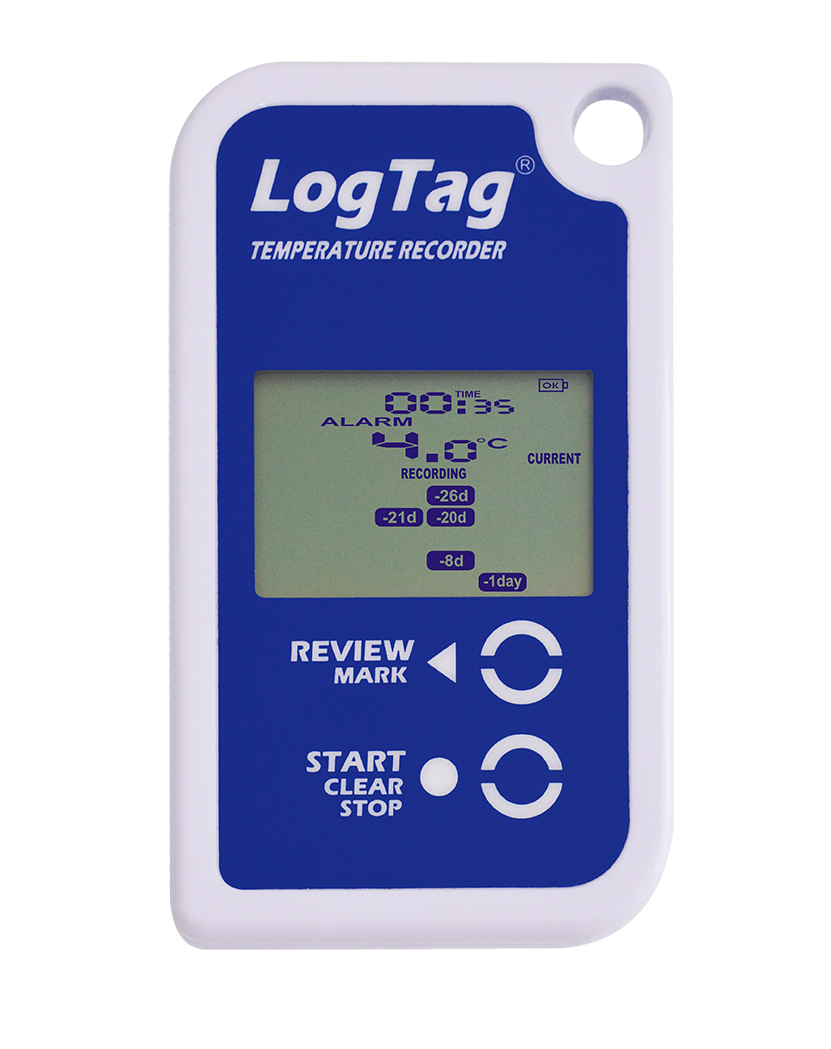

LogTag TRID30-7R Temperature Data Logger
The LogTag TRID30-7R is a reusable temperature data logger with an integrated 30-day display and a user-replaceable battery.
Designed for refrigerators, cold rooms, storage areas and temperature-controlled transportation, it allows users to review the latest temperature, daily statistics and previous alarm events without downloading the data.
- Temperature monitoring from -30°C to +60°C
- On-screen statistics and alarm history for up to 30 days
- User-replaceable battery for continued use
Replaceable Battery
Extend the operational life of the logger by replacing its CR2032 battery when required.
30-Day On-Screen History
Review daily minimum and maximum temperatures, alarm triggers and excursion durations directly on the display.
Immediate Status Checks
Check the latest temperature and recording status without connecting the logger to a computer.
Detailed Temperature Records
Download the complete dataset for charting, analysis and reporting using LogTag Analyzer.
The TRID30-7R is suited to static and transport applications where users need immediate access to current conditions and recent temperature history.
Typical applications include:
- Laboratory refrigerators and freezers
- Pharmacy and medical refrigerators
- Vaccine storage and transportation
- Cold rooms and refrigerated storage
- Pharmaceutical and healthcare distribution
- Food storage and transportation
- Temperature-controlled containers
- Clinical and research laboratories
- Production and processing areas
Its replaceable battery makes the logger particularly suitable for ongoing monitoring programmes where devices will be reused over multiple recording cycles.
The TRID30-7R combines detailed temperature recording with a 30-day display, configurable alarms and a replaceable battery.
- Internal temperature measurement from -30°C to +60°C
- Integrated LCD showing the latest temperature reading
- Daily minimum and maximum temperatures for up to 30 days
- On-screen alarm trigger and excursion-duration statistics
- Memory for 7,650 time-stamped temperature readings
- Configurable sampling intervals from 30 seconds to one hour
- Push-button or scheduled recording start
- Optional start delay of up to 18 hours
- User-configurable high and low temperature alerts
- REC indicator confirming recording status
- Push-button inspection marking
- Built-in real-time clock
- Full memory download typically completed in under five seconds
- IP65-rated when mounted or suspended vertically
- User-replaceable CR2032 battery
- Compatible with LogTag Analyzer software

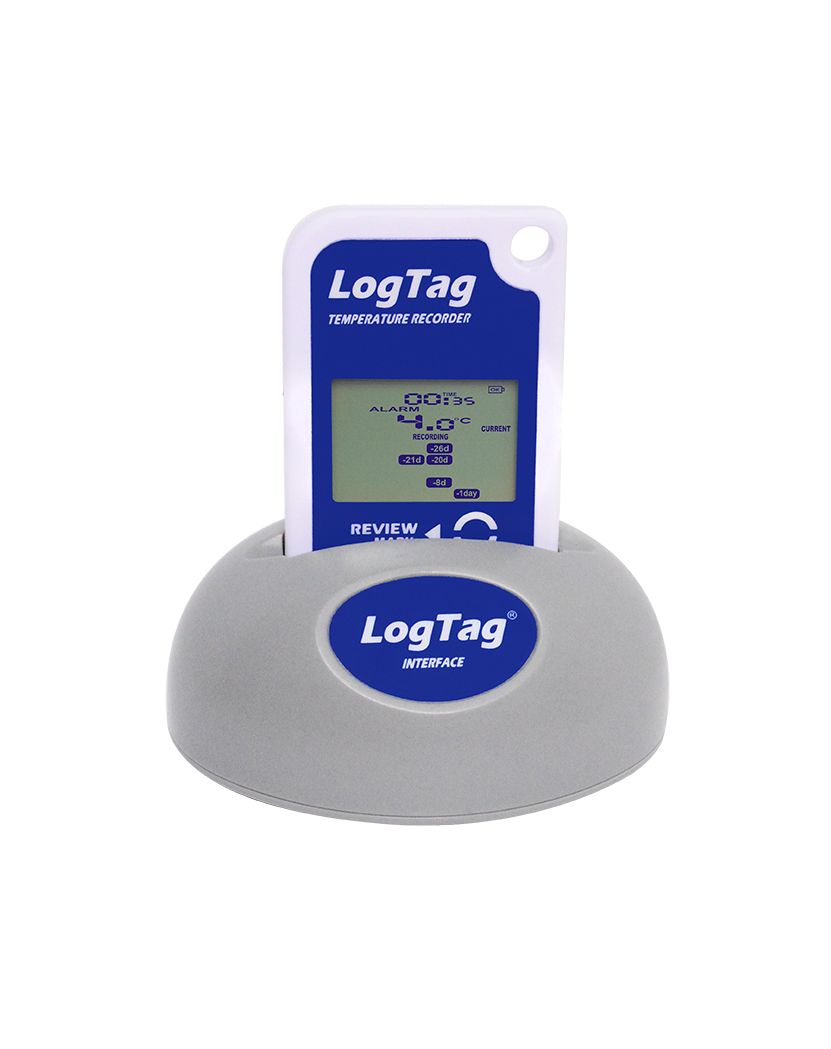

An LTI-HID LogTag interface cradle is required to configure the logger and download recorded data. The interface is available separately.
| Specification | TRID30-7R |
|---|---|
| Temperature measurement range | -30°C to +60°C |
| Operating temperature range | -30°C to +60°C |
| Storage temperature range | -10°C to +40°C |
| Temperature accuracy | Better than ±0.5°C from -20°C to +40°C; better than ±0.8°C elsewhere |
| Temperature resolution | 0.1°C across the operating measurement range |
| Recording capacity | 7,650 temperature readings |
| Display history | Up to 30 days of minimum, maximum, alarm and excursion-duration statistics |
| Sampling interval | Configurable from 30 seconds to one hour |
| Start options | Push-button or scheduled start, with an optional delay of up to 18 hours |
| Environmental protection | IP65 when mounted or suspended vertically |
| Battery | User-replaceable CR2032 3V LiMnO2 battery |
| Size and weight | 93 x 54.5 x 8.6mm; 41g |
The battery provides approximately one year of normal operation following one year of storage, based on six-minute logging, monthly downloads and limited daily display use.
Why Choose the LogTag TRID30-7R?
The LogTag TRID30-7R provides an accessible way to monitor temperature while giving users immediate visibility of current conditions and recent performance.
Its display presents daily minimum and maximum temperatures, alarm triggers and excursion durations for up to 30 days. This makes it particularly useful for refrigerators, cold rooms and other applications requiring regular visual checks.
Unlike the fixed-battery TRID30-7F, the TRID30-7R uses a replaceable battery, allowing the logger to remain in service across multiple monitoring programmes. Detailed readings can be downloaded through a LogTag interface cradle for analysis and reporting.
DOWNLOAD
LogTag TRID30-7R Technical Brochure
Download the manufacturer’s brochure for complete performance specifications, display functions and battery information.
