Kambic Humidity Chambers
[22 Models]Kambic Humidity Chambers deliver precise control of temperature and relative humidity for laboratories and manufacturers carrying out environmental testing, stability studies and product qualification.
Designed to simulate real-world conditions with exceptional accuracy, the range provides reliable and repeatable performance for industries where environmental conditions directly influence product quality, safety and compliance.
Available in Standard Temperature (+5°C to +180°C), Low Temperature (-40°C to +180°C) and Ultra Low Temperature (-75°C to +180°C) configurations, Kambic Humidity Chambers are available in chamber volumes from 50L to 1000L, allowing you to select the ideal solution for your testing requirements.
- Temperature ranges from +5°C to +180°C or -75°C to +180°C
- Relative humidity control from 10% to 98% RH
- Standard, Low Temperature and Ultra Low Temperature models available
Wide Temperature Range
Choose from standard, low temperature and ultra-low temperature humidity chambers operating between +5°C and +180°C or -75°C and +180°C.
Precise Humidity Control
Maintain accurate environmental conditions with relative humidity control from 10% to 98% RH for repeatable testing.
Exceptional Stability
Industry-leading temperature and humidity stability deliver consistent, repeatable results for demanding laboratory and industrial applications.
Intelligent Process Control
Programmable PLC controls support ramping, cycling, timed programmes and remote communications for automated environmental testing.
Kambic Humidity Chambers are used across laboratories, research facilities and manufacturing environments for a wide range of environmental testing applications, including:
- Sample conditioning before testing
- Stability testing
- Environmental simulation
- Accelerated ageing
- Product qualification testing
- Material testing
- Pharmaceutical stability studies
- Electronics testing
- Automotive component testing
- Aerospace qualification
- Packaging testing
- Sensor and data logger calibration
Kambic Humidity Chambers are used across laboratories, research facilities and manufacturing environments for a wide range of environmental testing applications, including:
- Stability testing
- Environmental simulation
- Accelerated ageing
- Product qualification testing
- Material testing
- Pharmaceutical stability studies
- Electronics testing
- Automotive component testing
- Aerospace qualification
- Packaging testing
- Sensor and data logger calibration
- Sample conditioning before testing
Standard Temperature Chambers

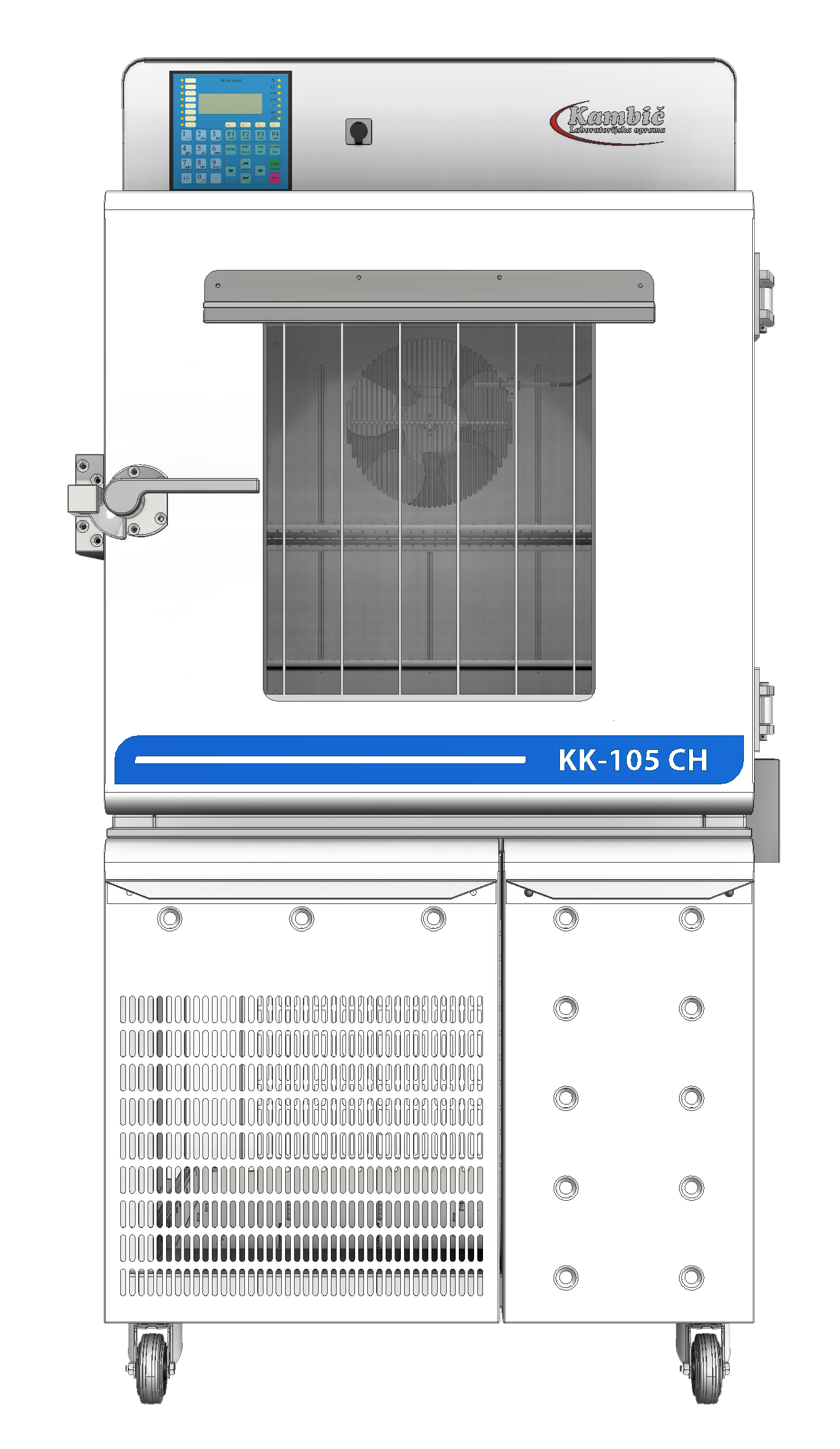

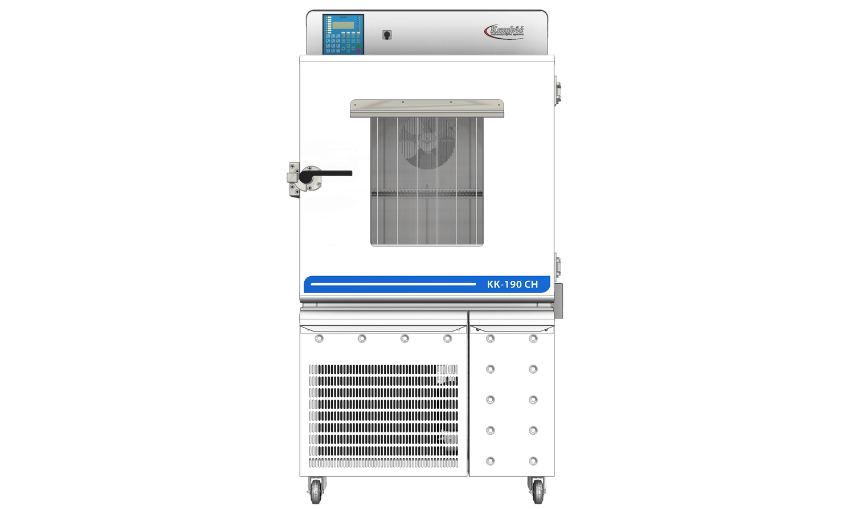

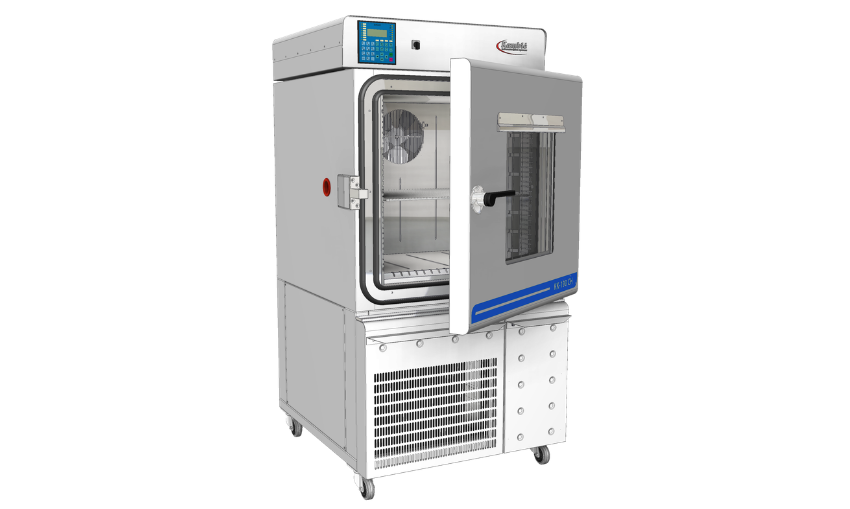

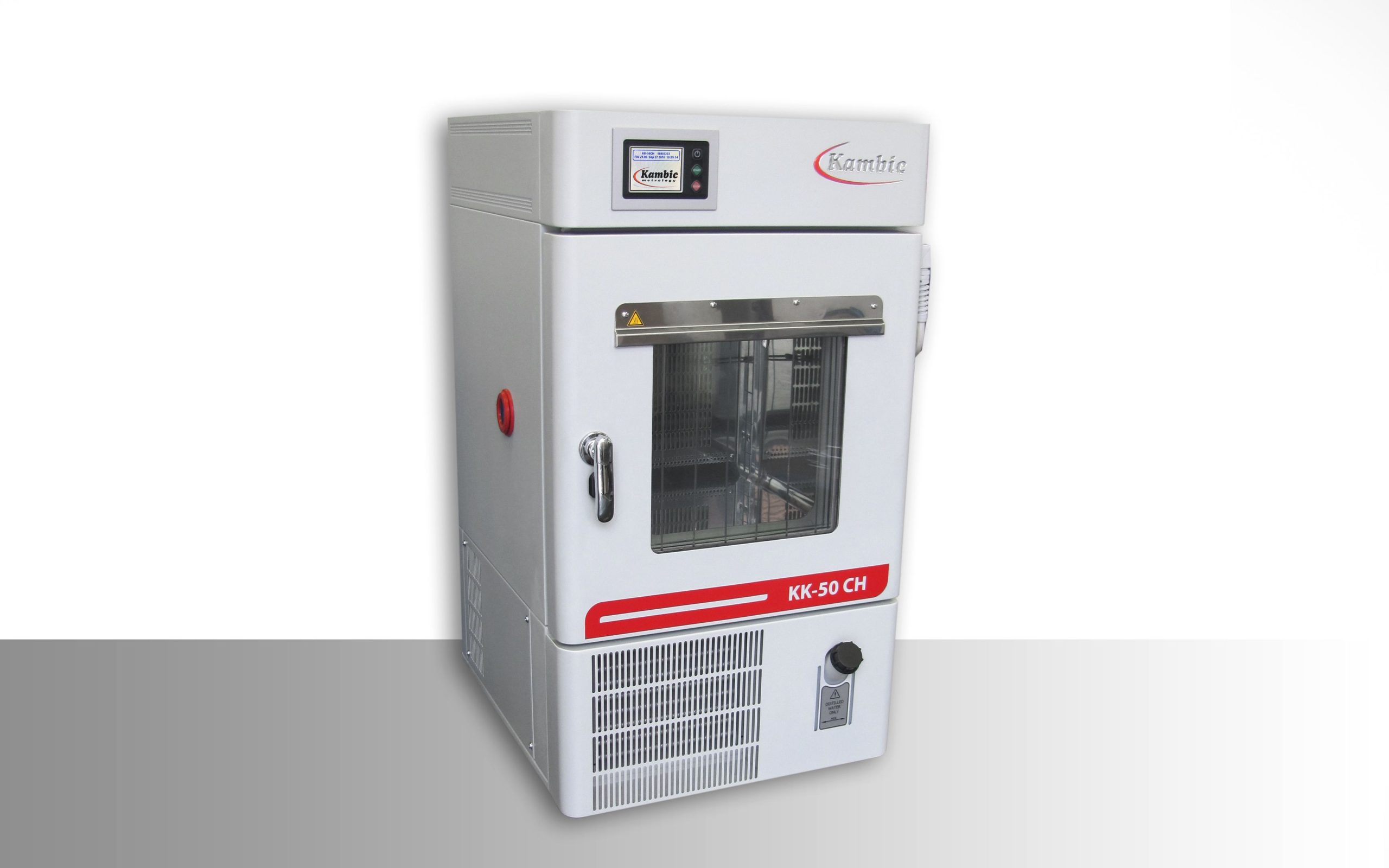

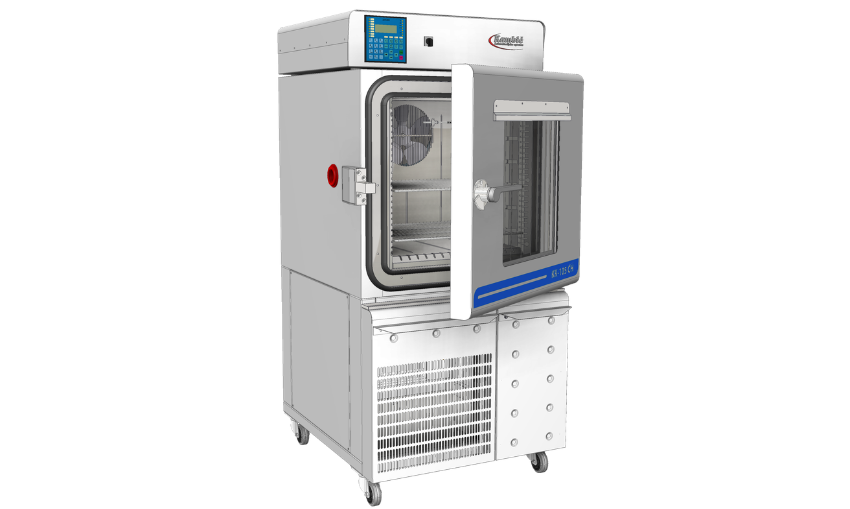

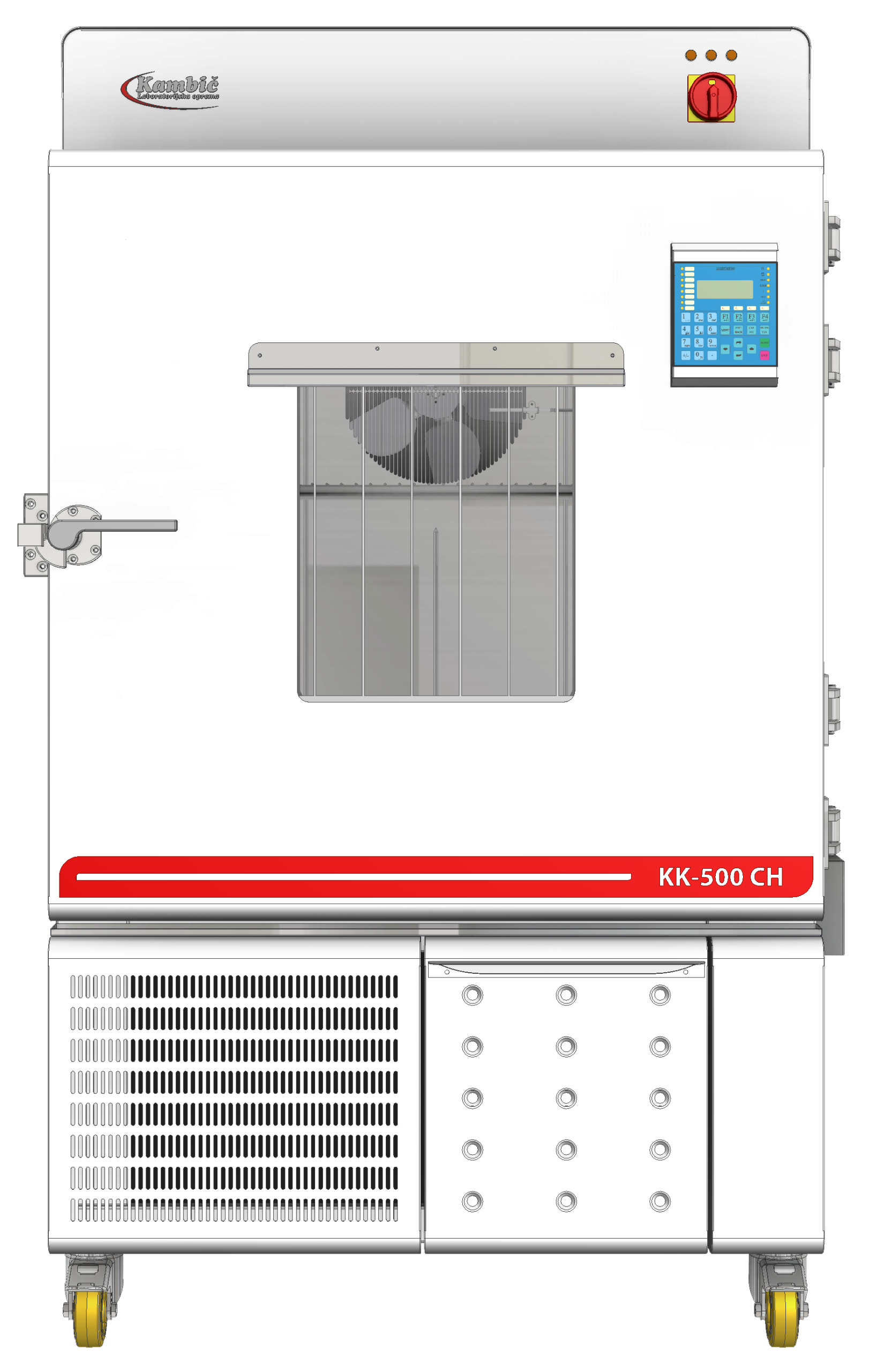

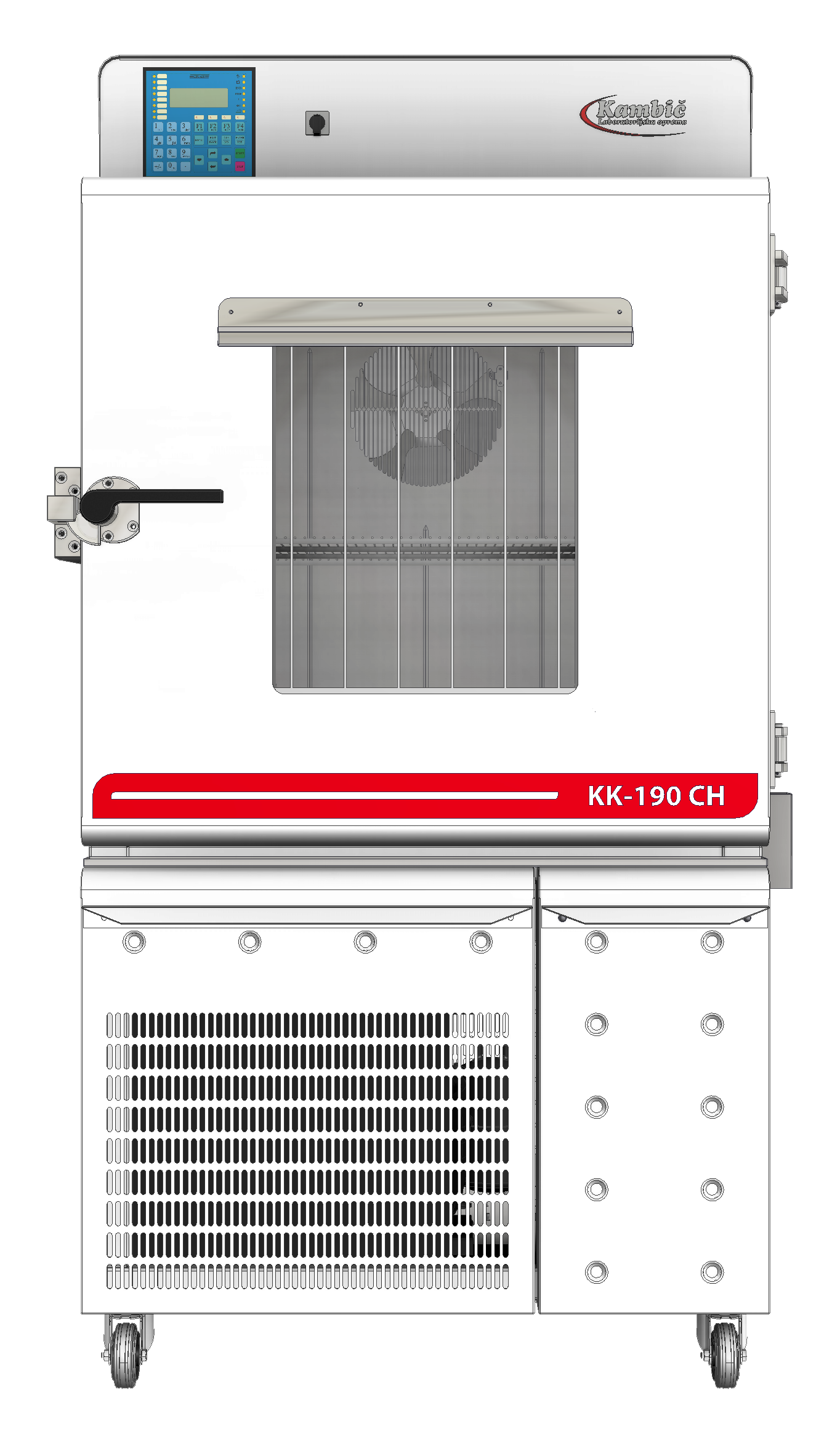

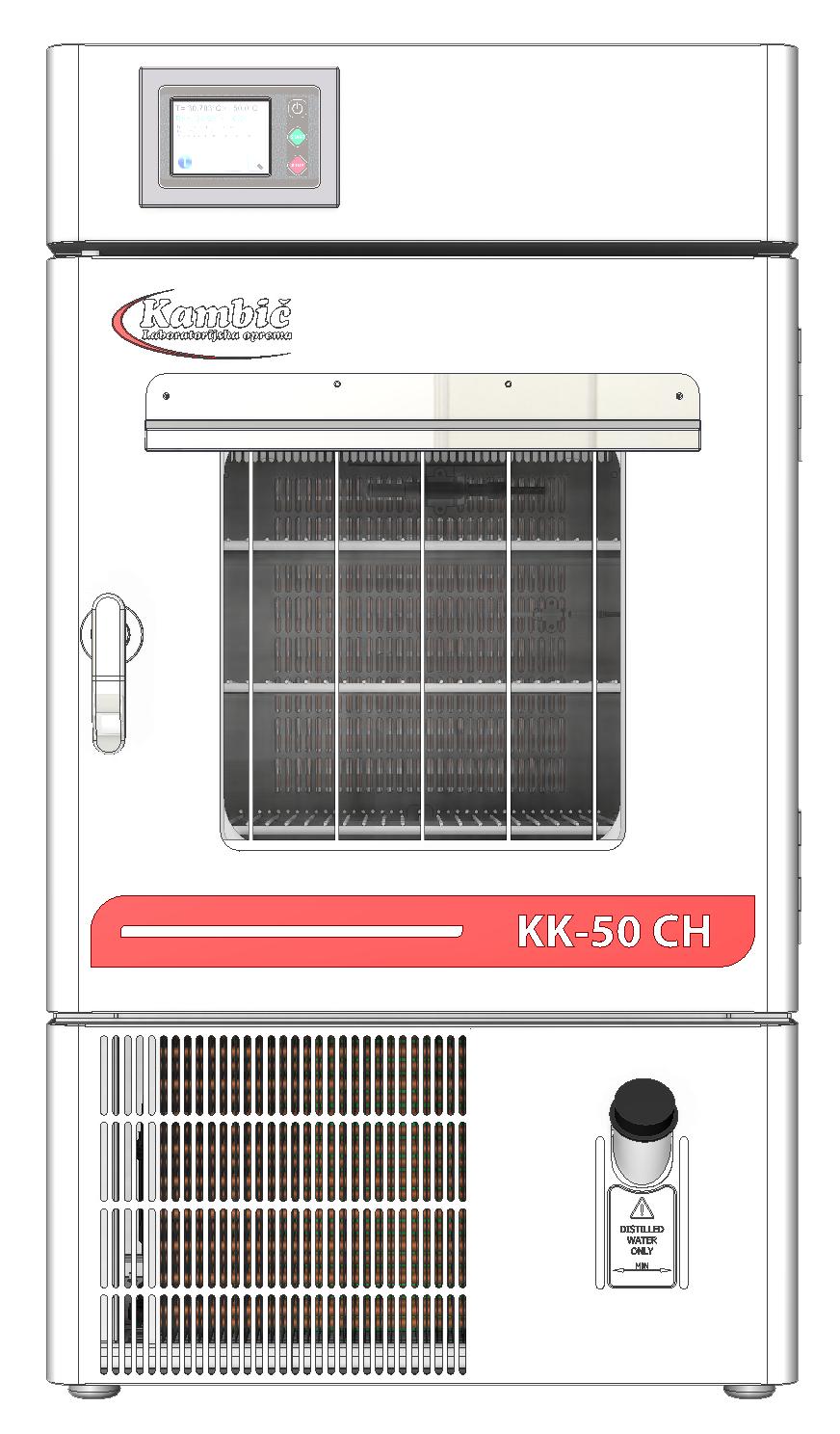

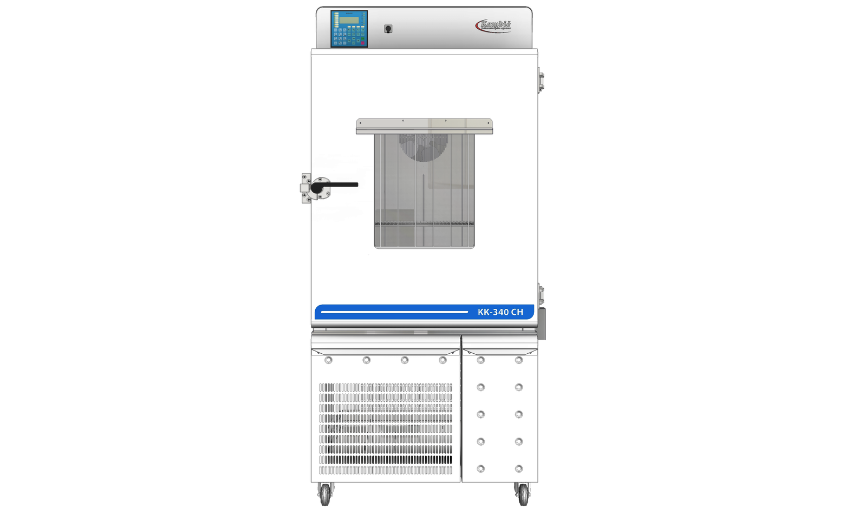

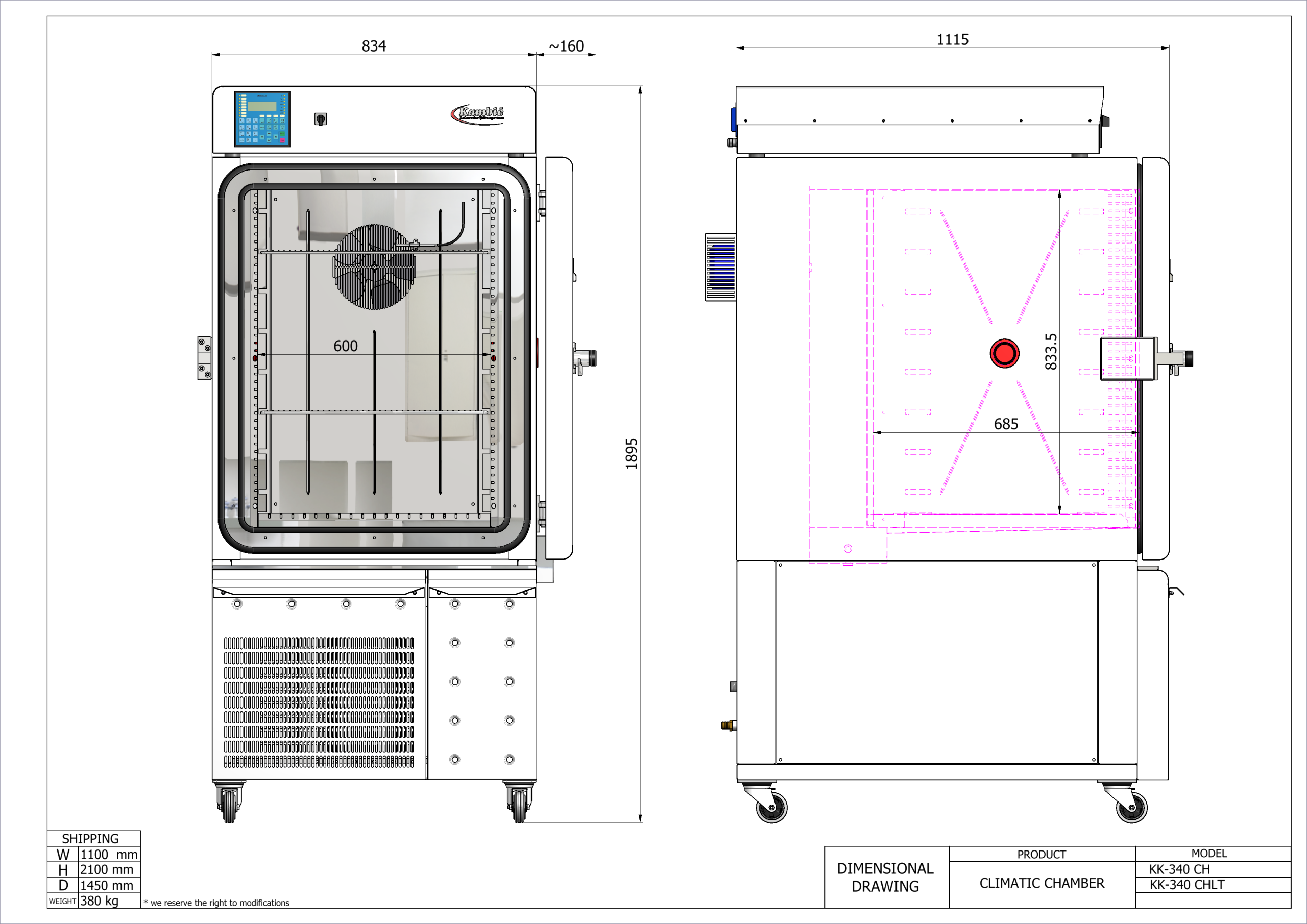

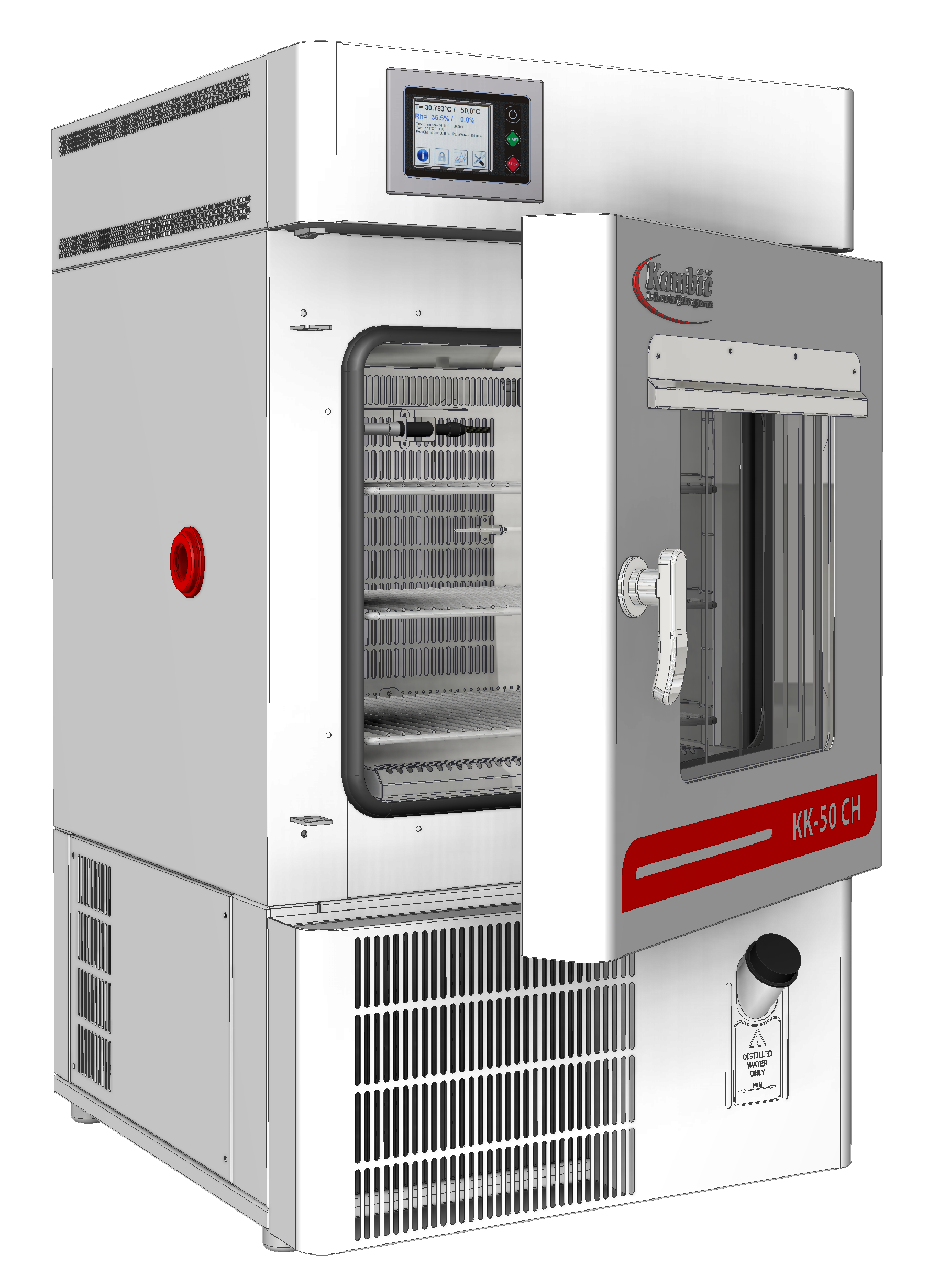

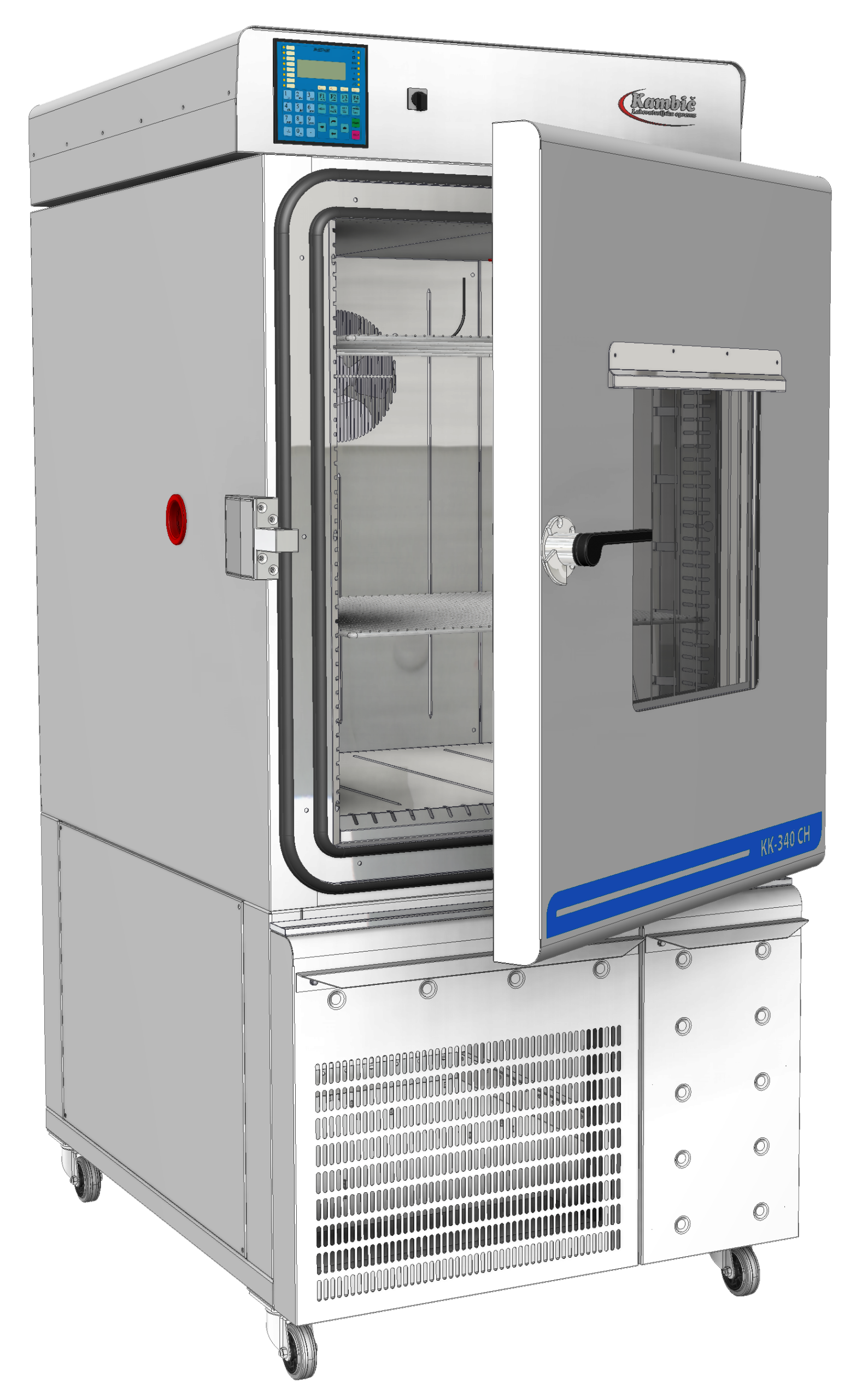

| Specification | KK-50 CH | KK-105 CH | KK-190 CH | KK-340 CH | KK-500 CH | KK-1000 CH |
|---|---|---|---|---|---|---|

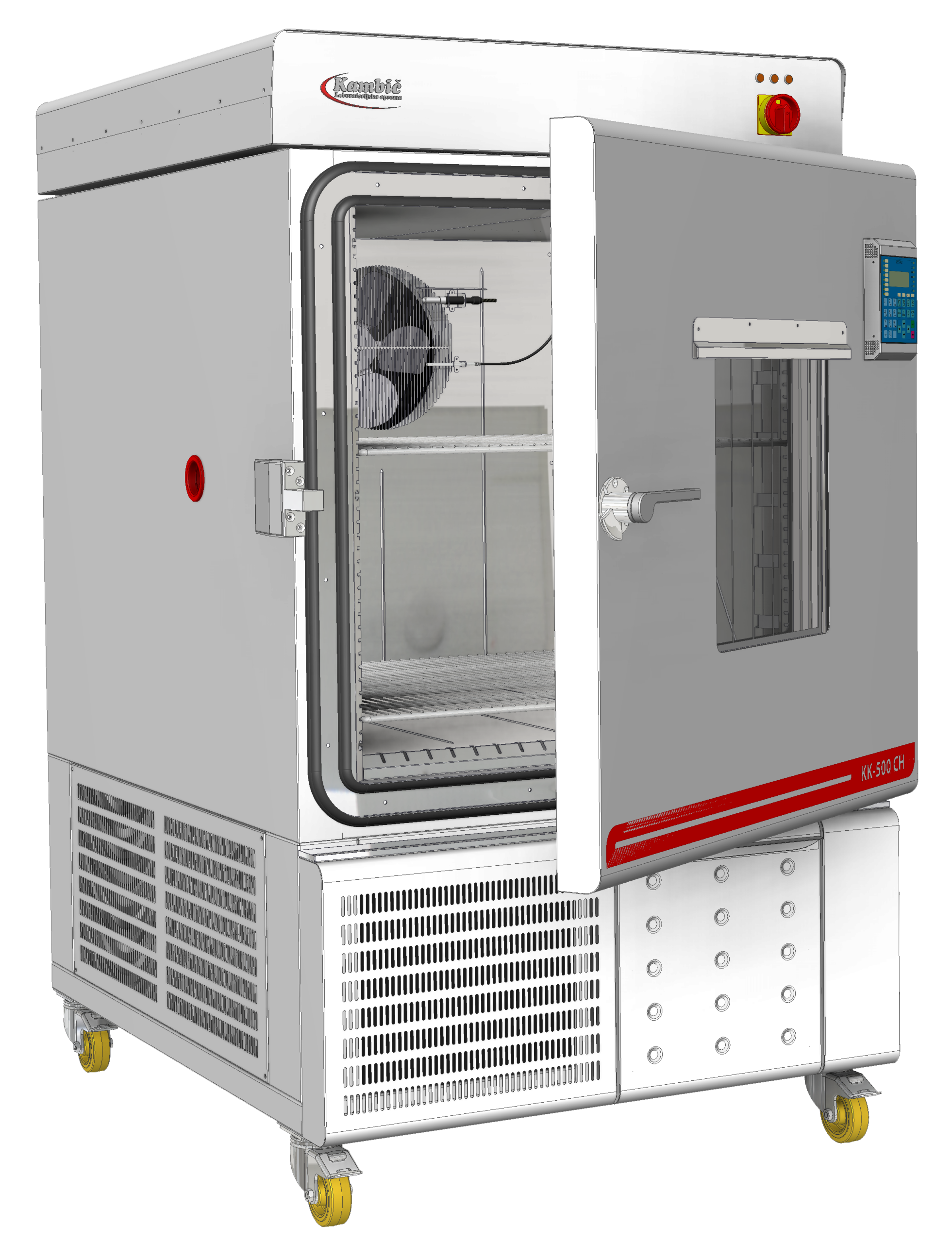

| Volume | 50 L | 105 L | 190 L | 340 L | 500 L | 1,000 L |
| Temperature range | +5°C to +180°C | +5°C to +180°C | +5°C to +180°C | +5°C to +180°C | +5°C to +180°C | +5°C to +180°C |
| Relative humidity range | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH |

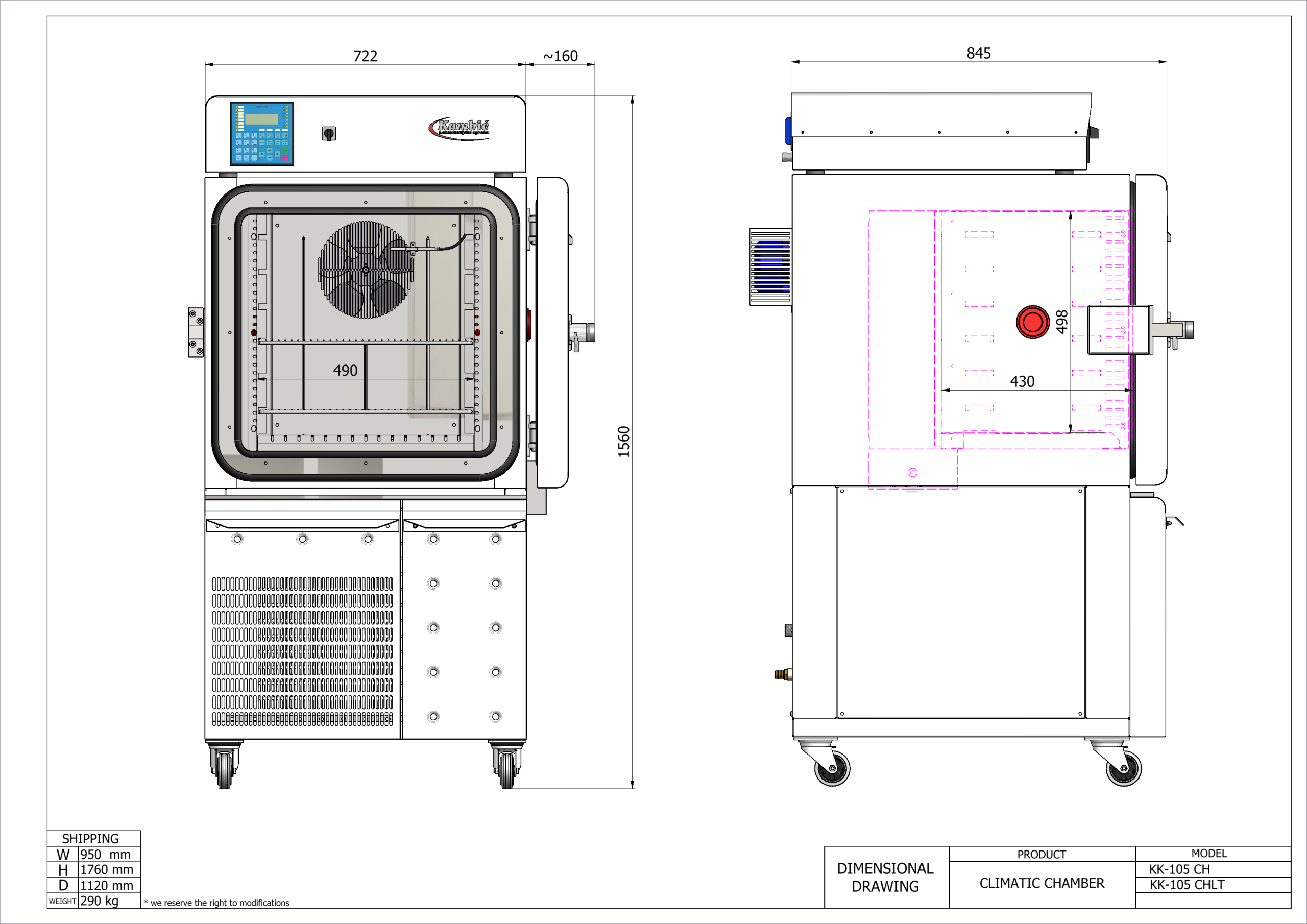

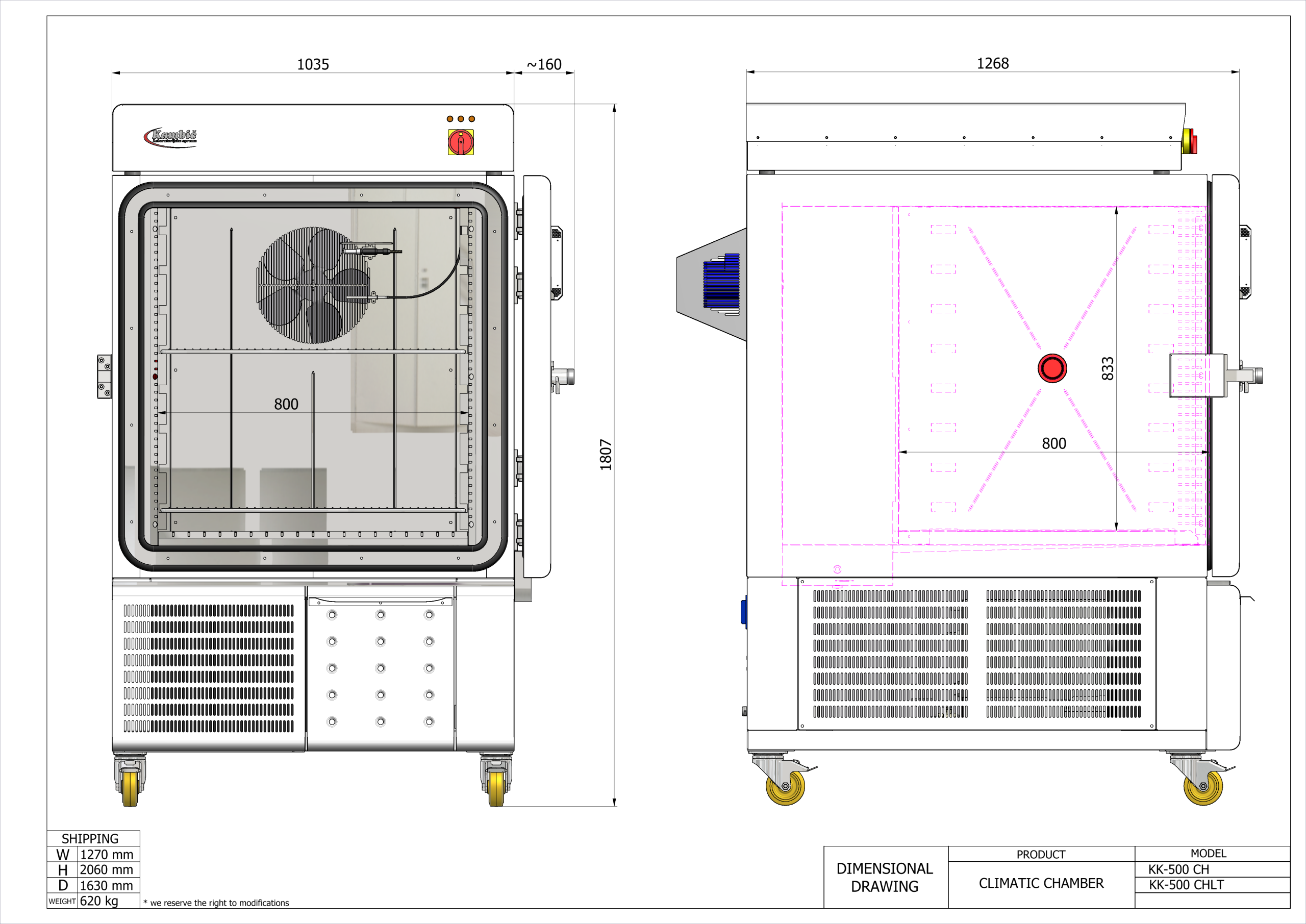

| External dimensions (W×H×D) | 570 × 1,035 × 645 mm | 725 × 1,560 × 845 mm | 834 × 1,675 × 930 mm | 835 × 1,895 × 1,115 mm | 1,035 × 1,810 × 1,270 mm | 1,235 × 1,930 × 1,495 mm |
| Internal dimensions (W×H×D) | 400 × 375 × 350 mm | 490 × 498 × 430 mm | 600 × 610 × 510 mm | 600 × 830 × 685 mm | 800 × 800 × 800 mm | 1,000 × 1,000 × 1,000 mm |
| Maximum load | 30 kg | 60 kg | 80 kg | 100 kg | 150 kg | 200 kg |
| Temperature stability | ±0.05°C at 50°C/50% RH ±0.05°C at 90°C/90% RH ±0.2°C at 180°C | ±0.05°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.3°C at 180°C | ±0.06°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.3°C at 180°C | ±0.06°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C | ±0.06°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C | ±0.05°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.3°C at 180°C |
| Temperature uniformity | ±0.4°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.6°C at 180°C | ±0.3°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.8°C at 180°C | ±0.4°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±2.0°C at 180°C | ±0.3°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.5°C at 180°C | ±0.3°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.6°C at 180°C | ±0.4°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.8°C at 180°C |
| Wattage | 2,300 W | 3,200 W | 3,600 W | 3,600 W | 9,000 W | 12,000 W |
| Relative humidity stability | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.6% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH |
Low Temperature Chambers

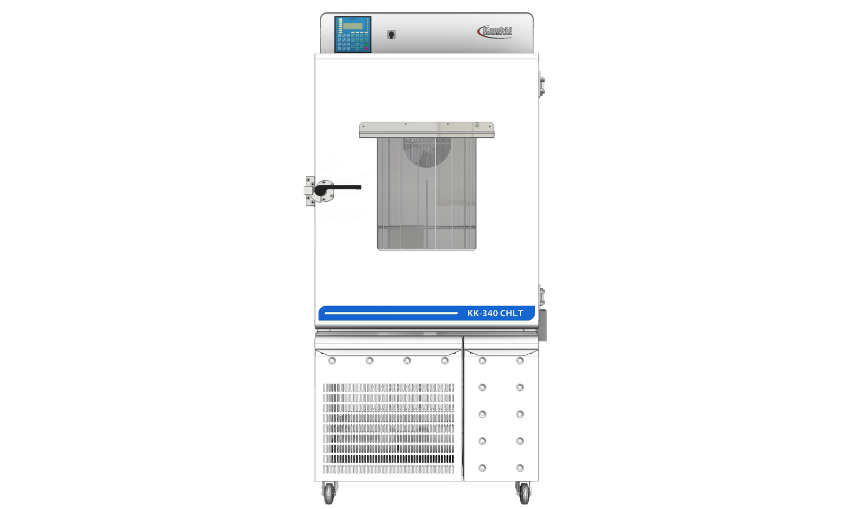

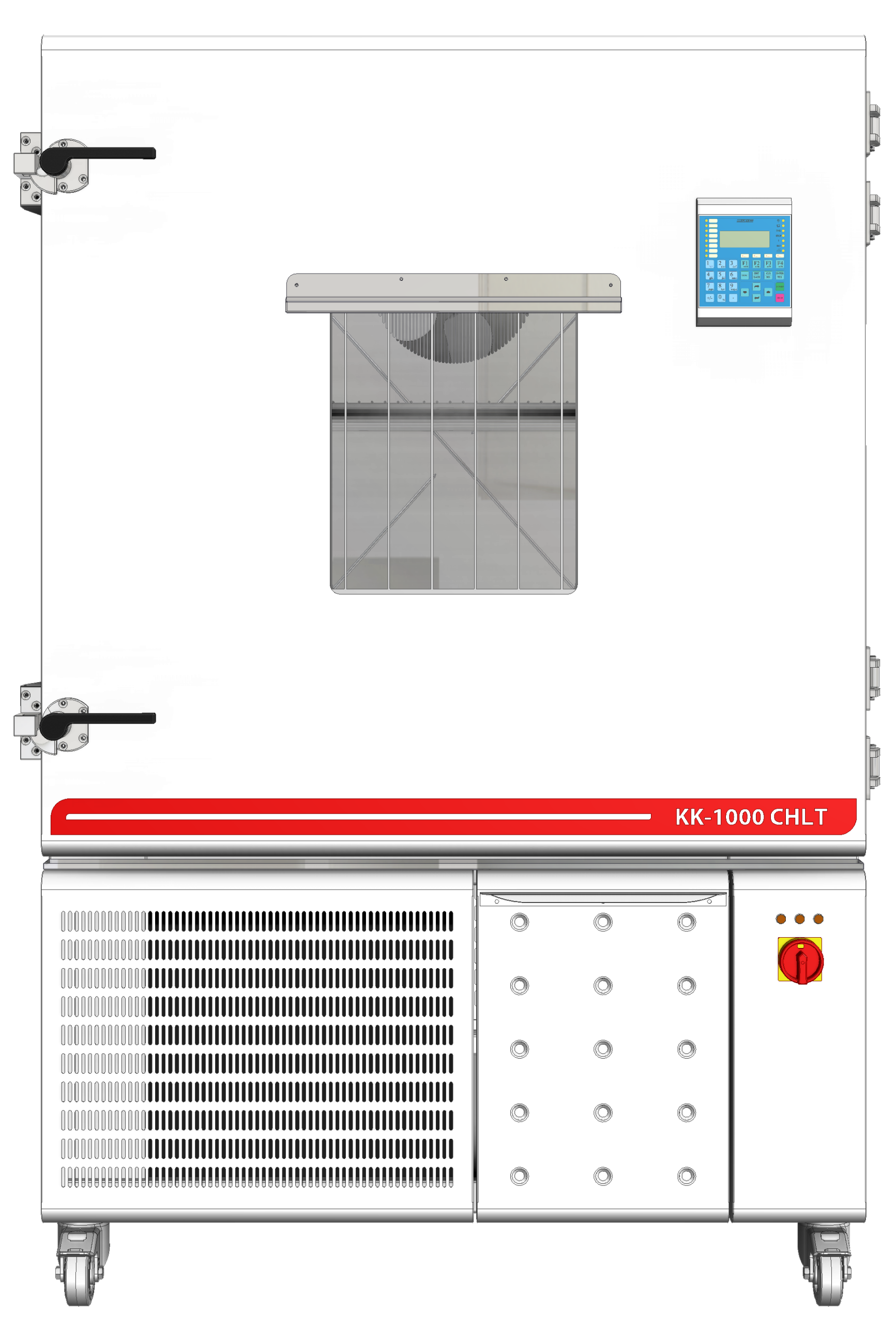

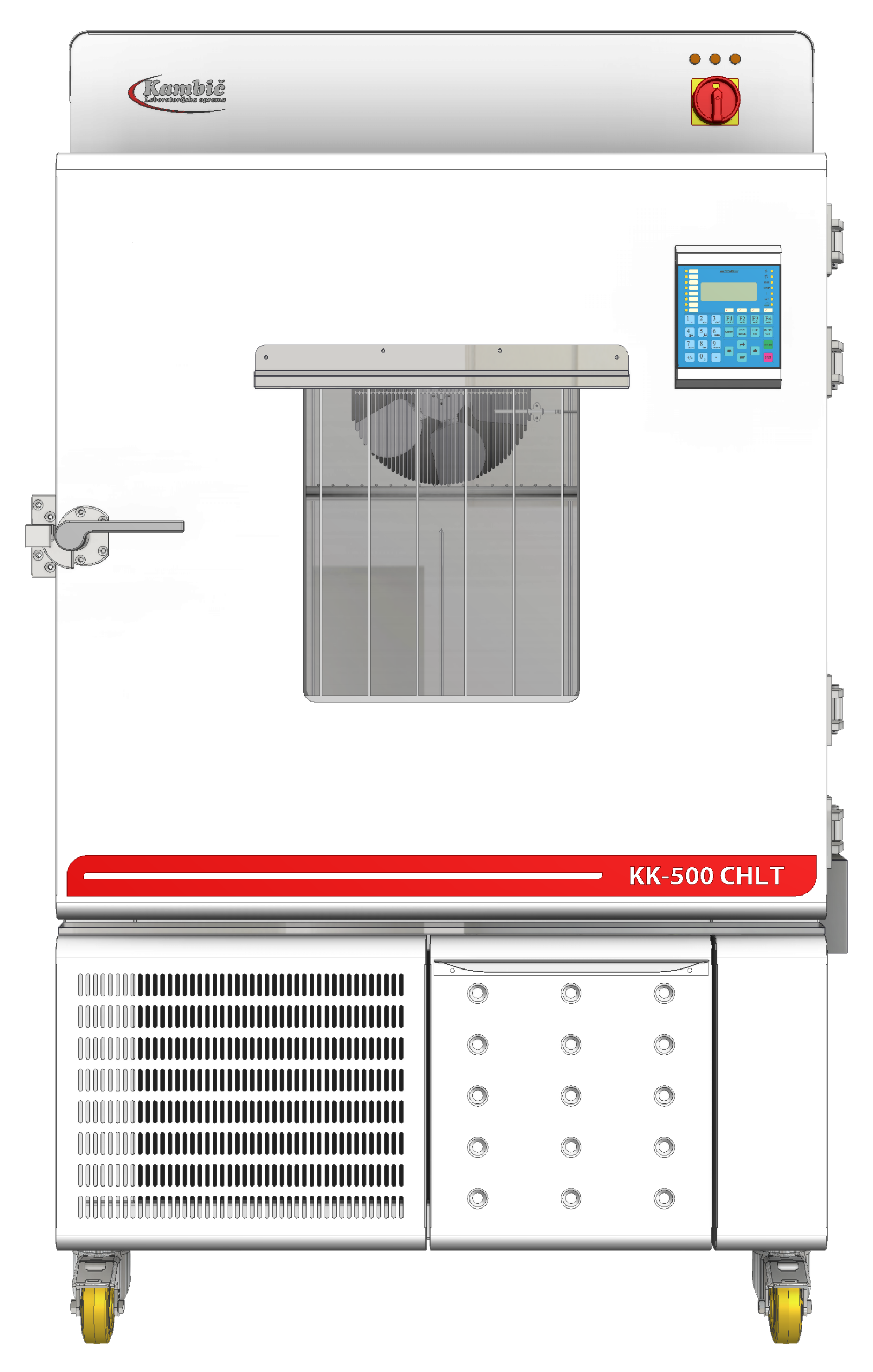

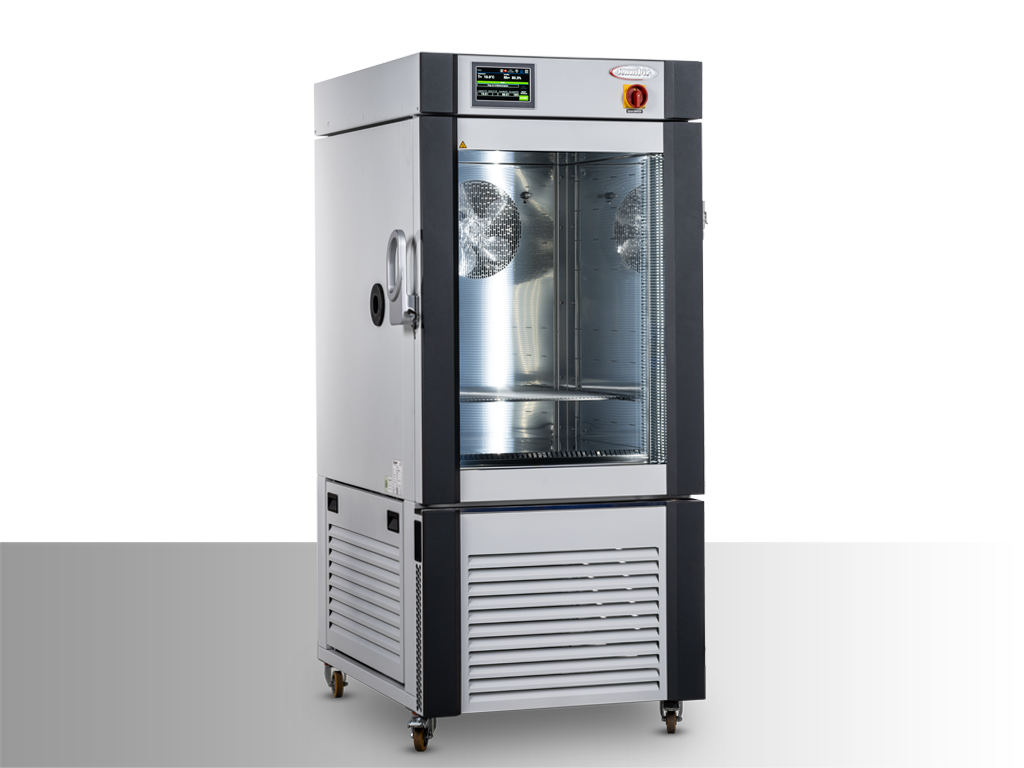

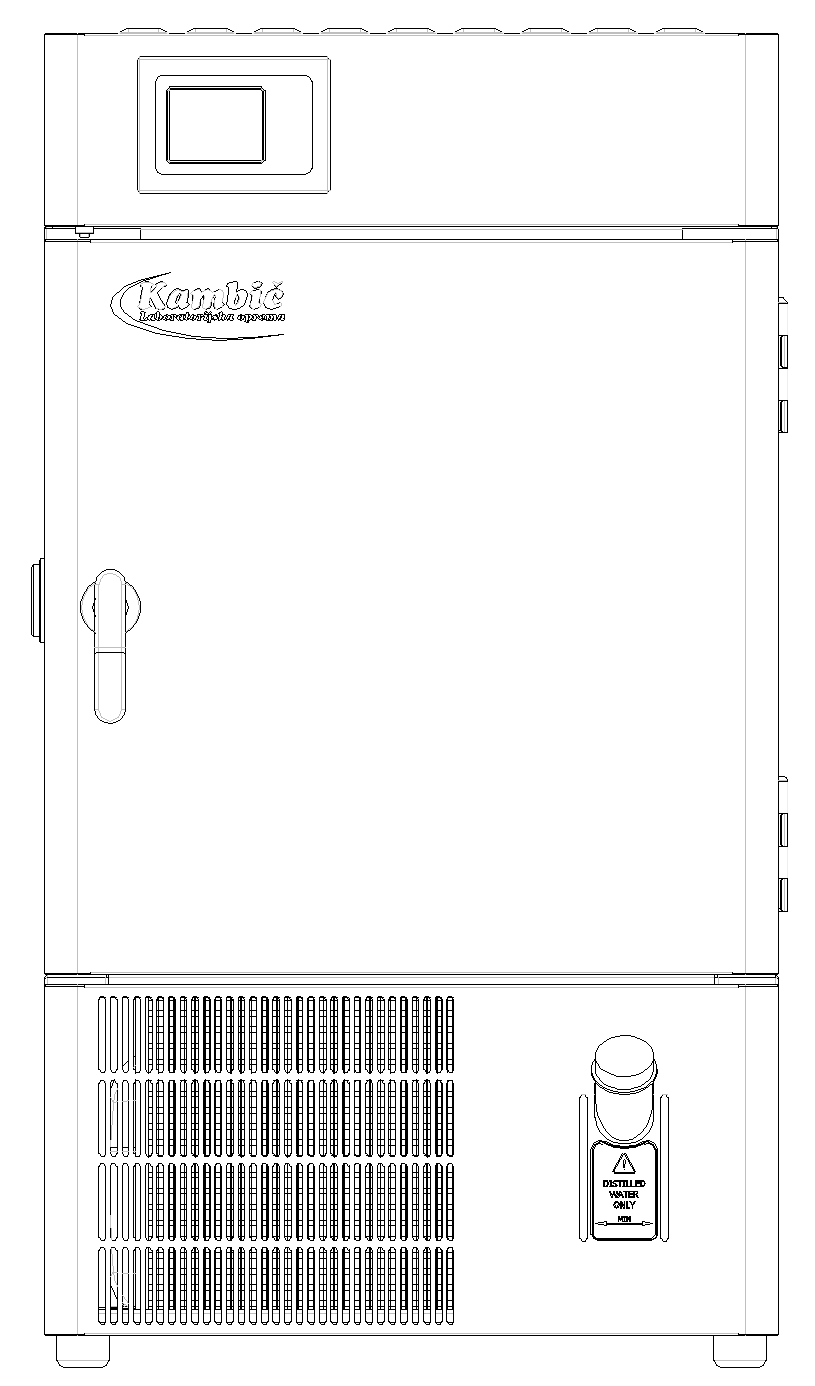

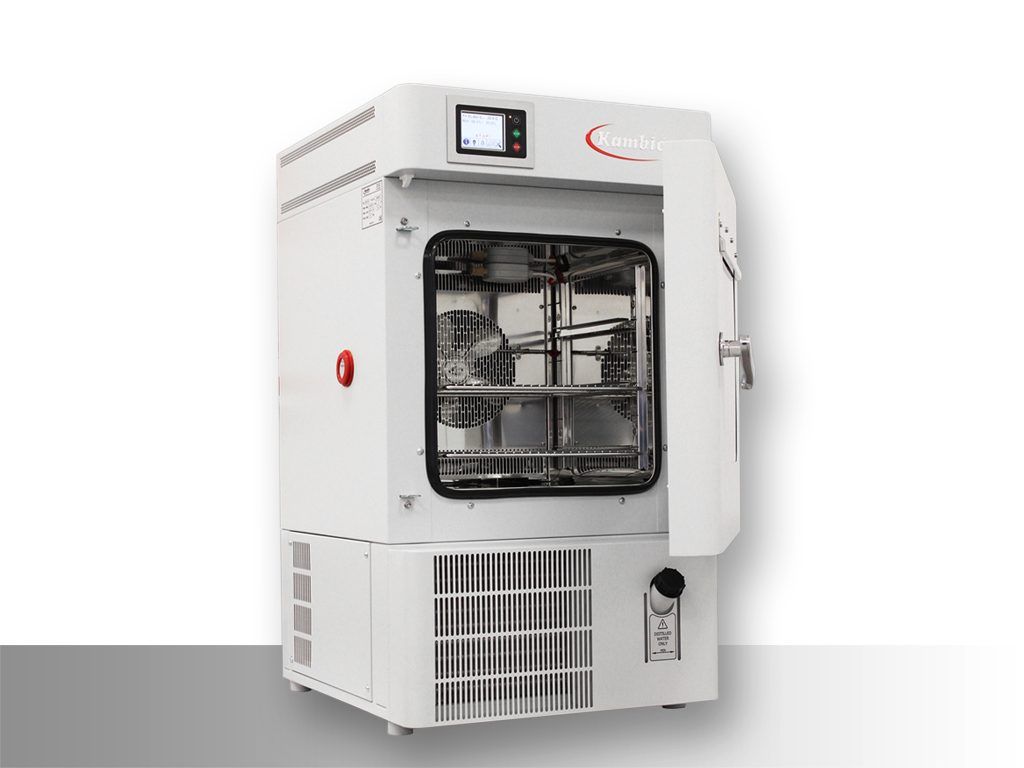

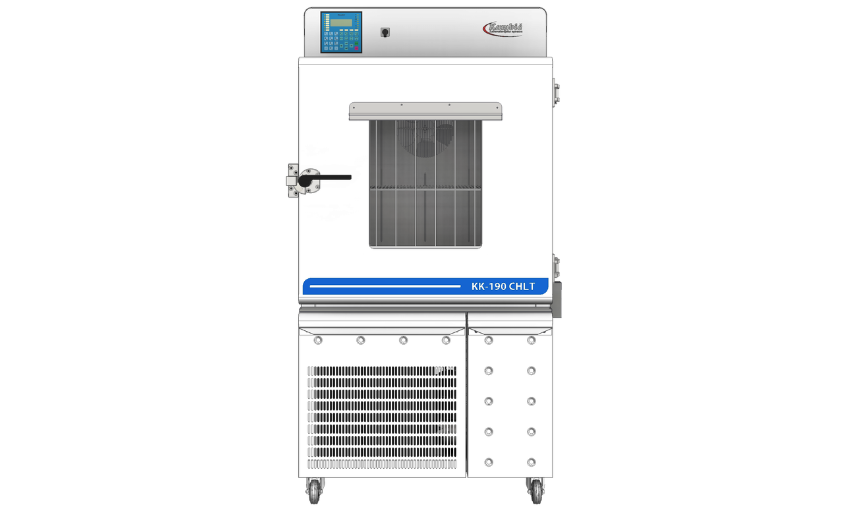

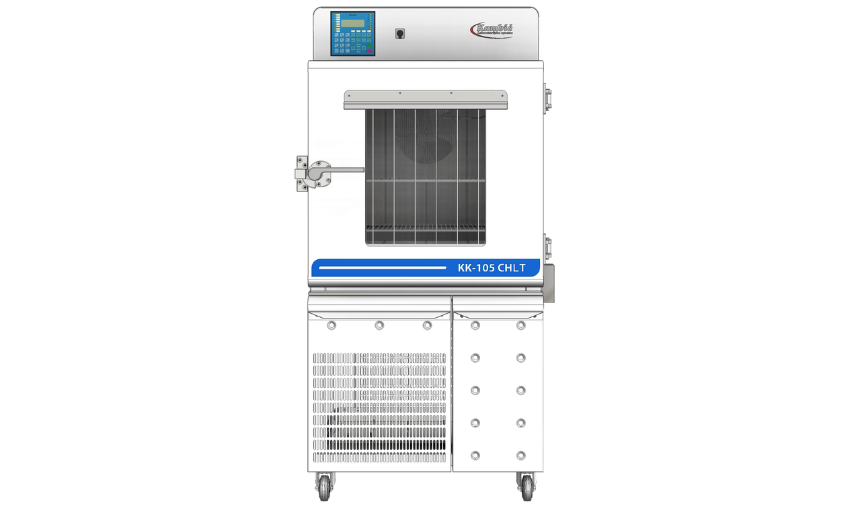

| Specification | KK-50 CHLT | KK-105 CHLT | KK-190 CHLT | KK-340 CHLT | KK-500 CHLT | KK-1000 CHLT |
|---|---|---|---|---|---|---|
| Volume | 50 L | 105 L | 190 L | 340 L | 500 L | 1,000 L |
| Temperature range | −40°C to +180°C | −40°C to +180°C | −40°C to +180°C | −40°C to +180°C | −40°C to +180°C | −40°C to +180°C |
| Relative humidity range | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH |

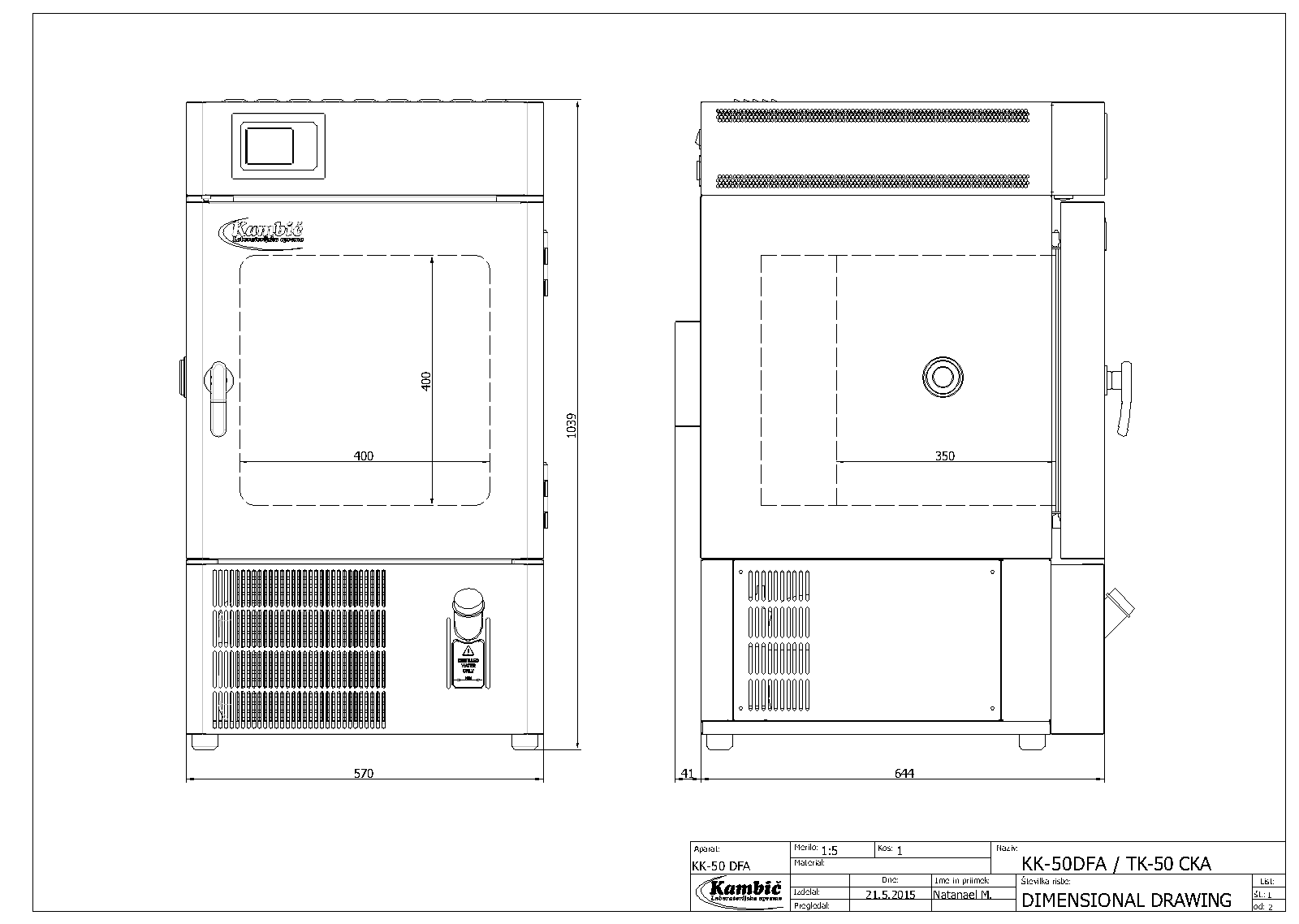

| External dimensions (W×H×D) | 570 × 1,035 × 645 mm | 725 × 1,560 × 845 mm | 834 × 1,675 × 930 mm | 835 × 1,895 × 1,115 mm | 1,035 × 1,810 × 1,270 mm | 1,235 × 1,930 × 1,495 mm |
| Internal dimensions (W×H×D) | 400 × 375 × 350 mm | 490 × 498 × 430 mm | 600 × 610 × 510 mm | 600 × 830 × 685 mm | 800 × 800 × 800 mm | 1,000 × 1,000 × 1,000 mm |
| Maximum load | 30 kg | 60 kg | 80 kg | 100 kg | 150 kg | 200 kg |
| Temperature stability | ±0.2°C at −40°C ±0.05°C at 50°C/50% RH ±0.05°C at 90°C/90% RH ±0.2°C at 180°C | ±0.4°C at −40°C ±0.08°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.3°C at 180°C | ±0.5°C at −40°C ±0.08°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C | ±0.5°C at −40°C ±0.08°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C | ±0.5°C at −40°C ±0.06°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C | ±0.5°C at −40°C ±0.05°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C |
| Temperature uniformity | ±1.0°C at −40°C ±0.4°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.5°C at 180°C | ±1.0°C at −40°C ±0.3°C at 50°C/50% RH ±0.3°C at 90°C/90% RH ±2.0°C at 180°C | ±1.0°C at −40°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH ±1.8°C at 180°C | ±1.0°C at −40°C ±0.3°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.5°C at 180°C | ±0.7°C at −40°C ±0.3°C at 50°C/50% RH ±0.4°C at 90°C/90% RH ±1.5°C at 180°C | ±0.7°C at −40°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH ±1.5°C at 180°C |
| Wattage | 2,300 W | 3,200 W | 3,600 W | 3,600 W | 9,000 W | 12,000 W |
| Relative humidity stability | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.6% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH |
Ultra-Low Temperature Chambers

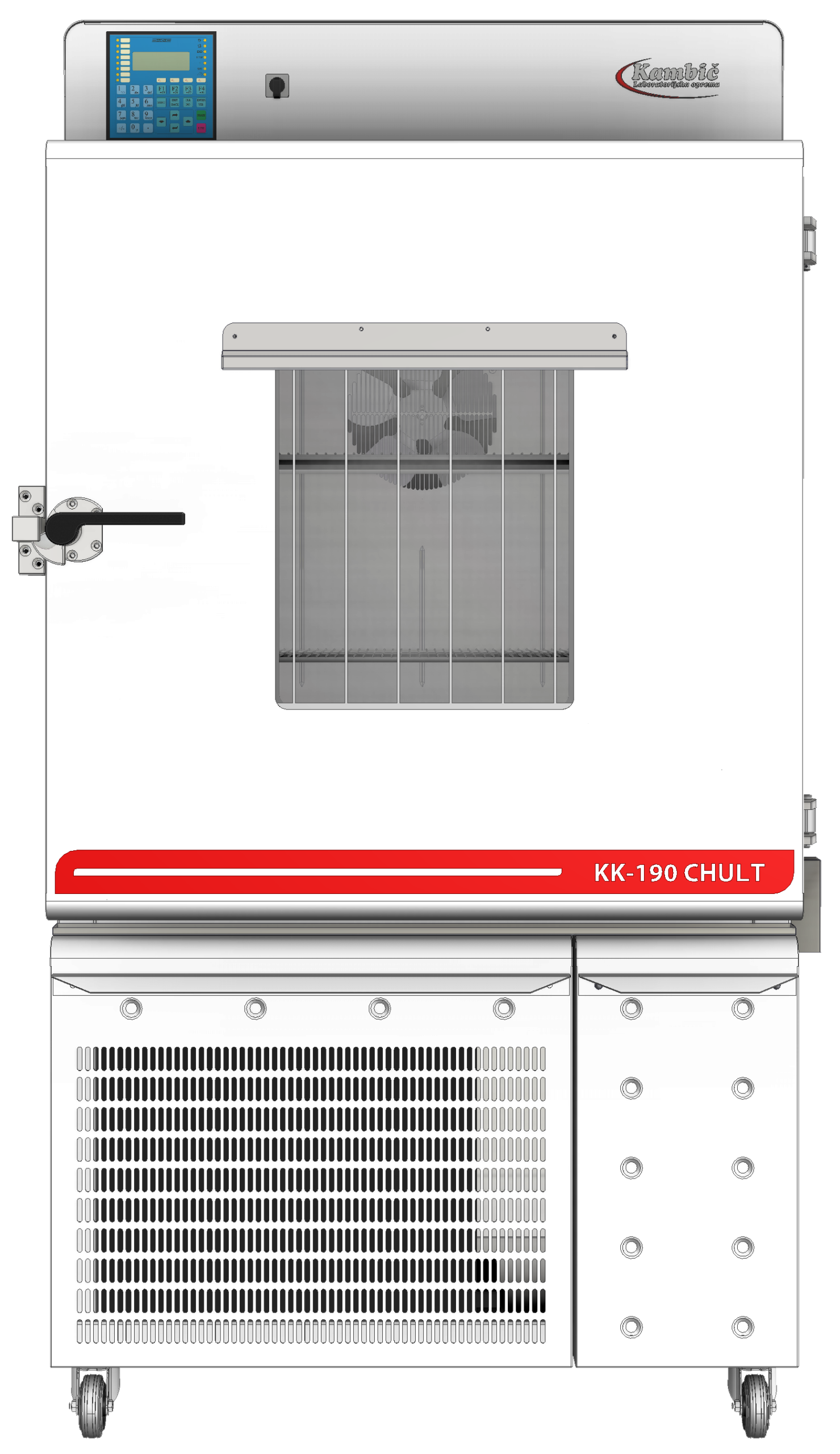

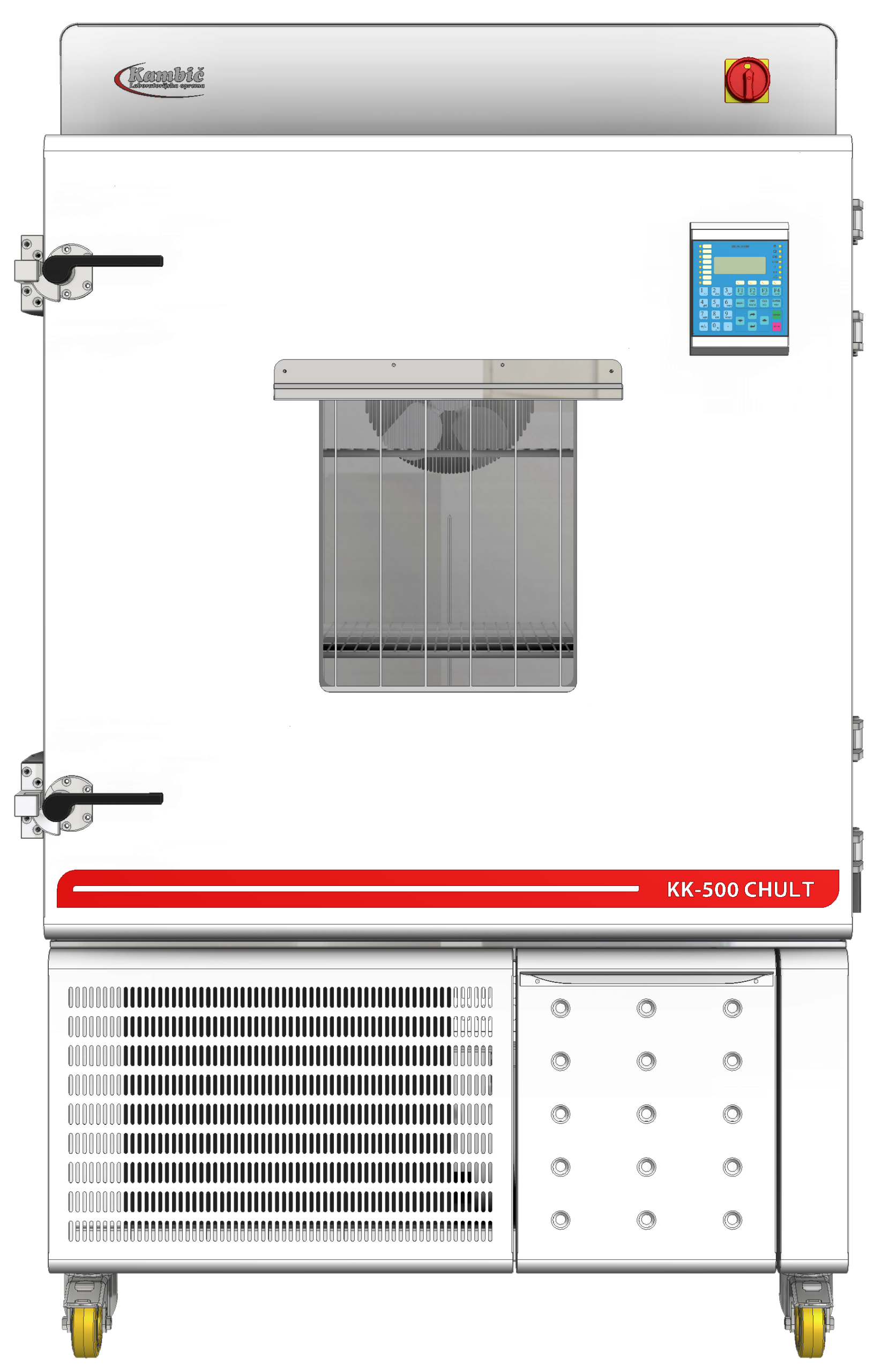

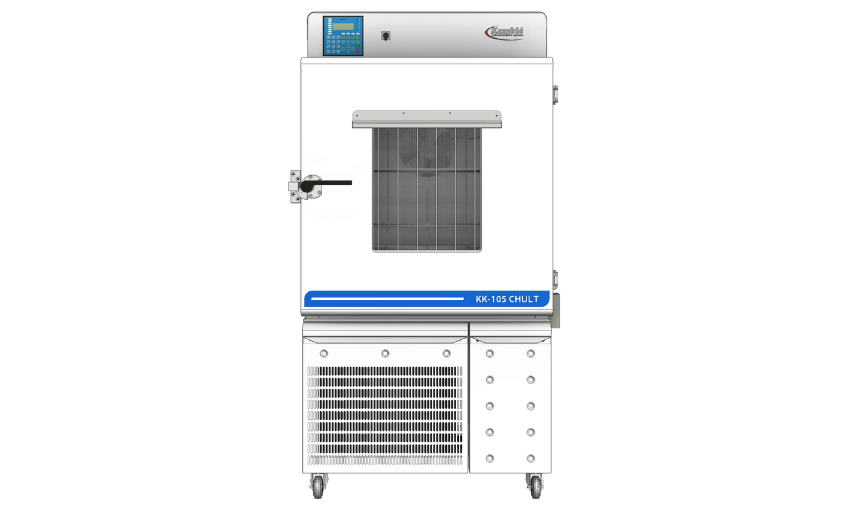

| Specification | KK-105 CHULT | KK-190 CHULT | KK-340 CHULT | KK-500 CHULT | KK-1000 CHULT |
|---|---|---|---|---|---|
| Volume | 105 L | 190 L | 340 L | 500 L | 1,000 L |
| Temperature range | −75°C to +180°C | −75°C to +180°C | −75°C to +180°C | −75°C to +180°C | −75°C to +180°C |
| Relative humidity range | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH | 10% to 98% RH |

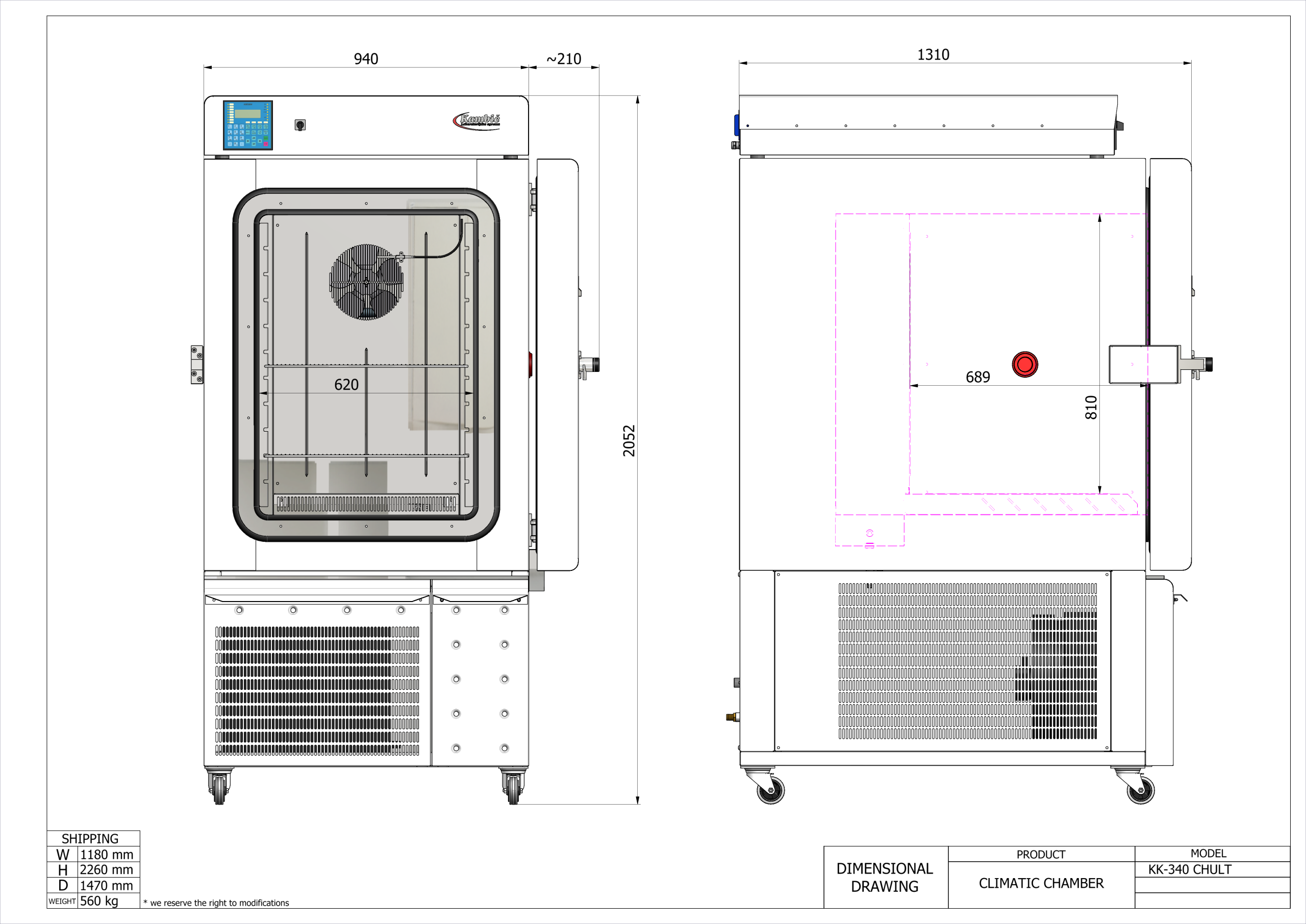

| External dimensions (W×H×D) | 850 × 1,715 × 1,100 mm | 940 × 1,830 × 1,125 mm | 940 × 2,052 × 1,310 mm | 1,165 × 1,985 × 1,640 mm | 1,375 × 2,070 × 1,900 mm |
| Internal dimensions (W×H×D) | 530 × 500 × 460 mm | 620 × 590 × 515 mm | 620 × 810 × 690 mm | 870 × 800 × 800 mm | 1,070 × 1,000 × 1,000 mm |
| Maximum load | 60 kg | 80 kg | 100 kg | 150 kg | 200 kg |
| Temperature stability | ±1.0°C at −75°C ±0.08°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.2°C at 180°C | ±1.0°C at −75°C ±0.08°C at 50°C/50% RH ±0.08°C at 90°C/90% RH ±0.4°C at 180°C | ±1.0°C at −75°C ±0.08°C at 50°C/50% RH ±0.08°C at 90°C/90% RH ±0.2°C at 180°C | ±1.0°C at −75°C ±0.1°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.1°C at 180°C | ±1.0°C at −75°C ±0.1°C at 50°C/50% RH ±0.1°C at 90°C/90% RH ±0.1°C at 180°C |
| Temperature uniformity | ±1.5°C at −75°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH ±1.5°C at 180°C | ±1.2°C at −75°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH ±1.7°C at 180°C | ±1.2°C at −75°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH ±1.7°C at 180°C | ±1.0°C at −75°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH | ±1.0°C at −75°C ±0.5°C at 50°C/50% RH ±0.5°C at 90°C/90% RH |
| Wattage | 5,500 W | 6,500 W | 7,500 W | 13,000 W | 12,000 W |
| Relative humidity stability | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±0.5% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±1.0% at 90°C/90% RH | ±0.5% at 50°C/50% RH ±1.0% a |
THE WITHNELL WAY
Why Choose Kambic Humidity Chambers?
Kambic Humidity Chambers are engineered for organisations that demand accurate, repeatable environmental testing.
Whether you’re carrying out pharmaceutical stability studies, accelerated ageing, material testing or environmental simulation, the range delivers exceptional temperature and humidity control across a wide operating range.
Available in standard, low temperature and ultra-low temperature configurations, Kambic chambers combine robust construction, intelligent controls and excellent metrology performance to provide dependable results in laboratories, research facilities and manufacturing environments.
Supported by Withnell Sensors, you’ll also benefit from expert technical advice, installation support and ongoing service throughout the life of your chamber.
DOWNLOAD
Explore the Kambic Humidity Chamber Brochures
Download the brochures for technical specifications, model comparisons and configuration options.
Service & Maintenance
Preventative maintenance, equipment health checks and repair support for Haier Biomedical, FARRAR and Kambic equipment supplied by Withnell Sensors.
- Inspecting doors, handles, gaskets and seals
- Checking backup batteries and electrical components
- Inspecting pipework and testing for refrigerant leaks
- Removing ice and cleaning key components
- Completing operational and safety checks
