Kambic Calibration Climatic Chambers
[3 Models]Kambic calibration climatic chambers provide exceptionally stable temperature and humidity environments for the calibration of temperature sensors, humidity sensors, data loggers and other precision instrumentation.
Designed specifically for metrology laboratories, calibration facilities and research organisations, the range delivers outstanding temperature uniformity, humidity control and repeatability to support highly accurate calibration procedures.
With models ranging from compact laboratory chambers to larger humidity-controlled systems, Kambic calibration climatic chambers combine advanced touchscreen controls, programmable test profiles and excellent environmental stability to meet the demands of modern calibration laboratories.
- Precision temperature and humidity calibration
- Designed for metrology and ISO 17025 laboratories
- World-class stability and uniformity
Exceptional Stability
Deliver highly stable temperature and humidity conditions for repeatable, traceable calibration performance.
World-Class Metrology Performance
Engineered specifically for calibration laboratories requiring outstanding measurement accuracy and environmental control.
Intelligent Touchscreen Control
Modern touchscreen controllers with programmable profiles, graphing, Ethernet and USB connectivity simplify chamber operation and data management.
Designed for Calibration
Purpose-built for calibrating temperature sensors, humidity sensors and data loggers with convenient cable access ports and heated observation windows.
Kambic calibration climatic chambers are designed for laboratories requiring precise environmental conditions for calibration, testing and validation.
Typical applications include:
- Temperature sensor calibration
- Relative humidity sensor calibration
- Data logger calibration
- Environmental sensor calibration
- ISO 17025 laboratories
- Calibration laboratories
- Metrology facilities
- Instrument verification
- Product development
- Research laboratories
The combination of exceptional temperature stability and precise humidity control makes these chambers ideal for laboratories performing high-accuracy environmental calibration.
Kambic calibration climatic chambers are engineered to deliver dependable environmental control while remaining easy to operate and maintain.
Key features include:
- Temperature and humidity calibration
- Excellent temperature stability and uniformity
- Mixed-flow humidity control
- Heated observation window
- Fully stainless-steel chamber
- Side access ports for probes and cables
- Touchscreen controller
- Ethernet and USB communications
- Programmable temperature profiles
- Historical graphing and data logging
- Automatic humidity control
- Heavy-duty insulated construction
- Heated doors to minimise condensation
- Height-adjustable stainless shelves
- Quiet operation
- Key-lock security

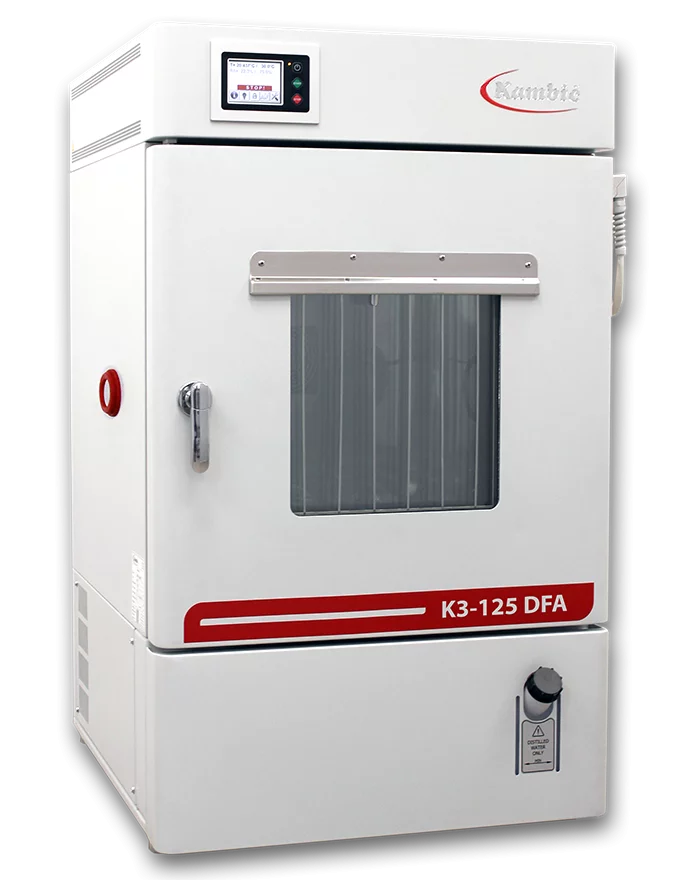

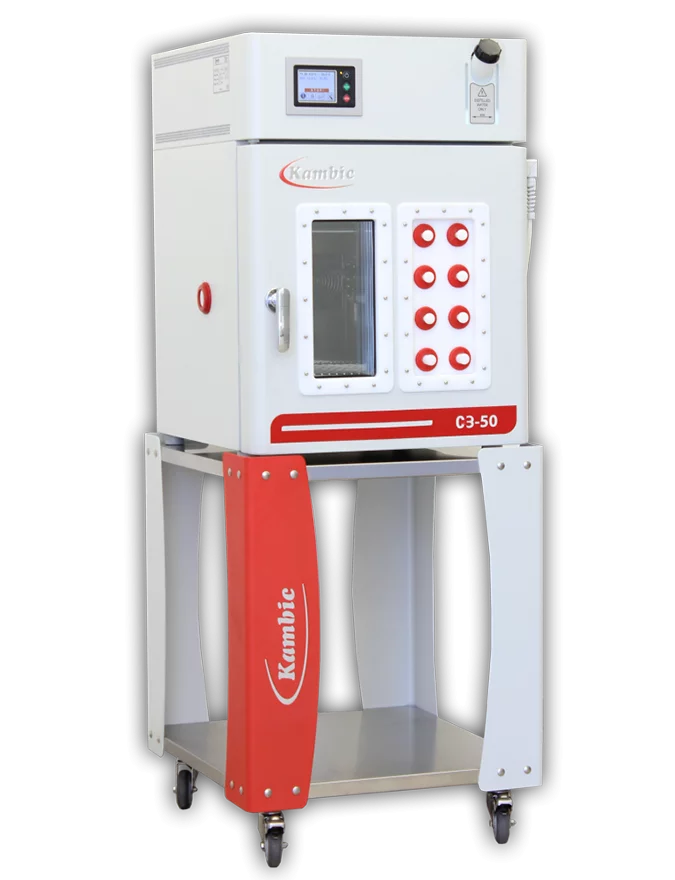

| Specification | C3-50 | K3-125 DFA | K3-90 |
|---|---|---|---|
| Volume | 57 L | Approx. 112 L | Approx. 90 L |
| Temperature range | +10°C to +55°C | -5°C to +60°C | -5°C to +60°C |
| Relative humidity range | 5% to 95% RH | 5% to 95% RH | 5% to 95% RH |
| Temperature stability* | ±0.02°C | ±0.05°C | ±0.05°C |
| Temperature uniformity* | 0.5°C | ±0.25°C | ±0.25°C |
| Relative humidity stability* | ±0.2% RH | ±0.3% RH | ±0.3% RH |
| External dimensions (W × H × D) | 570 × 800 × 615 mm | 670 × 1,140 × 920 mm | 650 × 1,223 × 793 mm |
| Internal dimensions (W × H × D) | 400 × 400 × 360 mm | 500 × 450 × 500 mm | 480 × 460 × 411 mm |
| Power supply | 230 V / 50–60 Hz | 230 V / 50–60 Hz | 230 V / 50–60 Hz |
| Weight | Approx. 79 kg | Approx. 145 kg | Approx. 195 kg |
Why Choose Kambic Calibration Climatic Chambers?
Kambic calibration climatic chambers are purpose-built for laboratories where precision, repeatability and traceability are essential.
By delivering exceptionally stable temperature and humidity conditions, they provide the confidence required for accurate calibration of sensors, data loggers and environmental monitoring equipment.
The range combines robust chamber construction with intelligent touchscreen controls, programmable environmental profiles and comprehensive connectivity, allowing laboratories to perform consistent, repeatable calibration procedures with minimal operator intervention.
Supported by the technical expertise of Withnell Sensors, Kambic chambers offer a dependable solution for metrology, calibration and research laboratories looking to achieve the highest standards of environmental control.
DOWNLOAD
Download Kambic Calibration Climatic Chambers Brochures
Choose the calibration climatic chamber that best suits your application and download the complete technical specifications.
