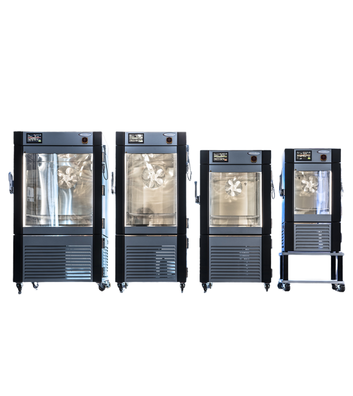

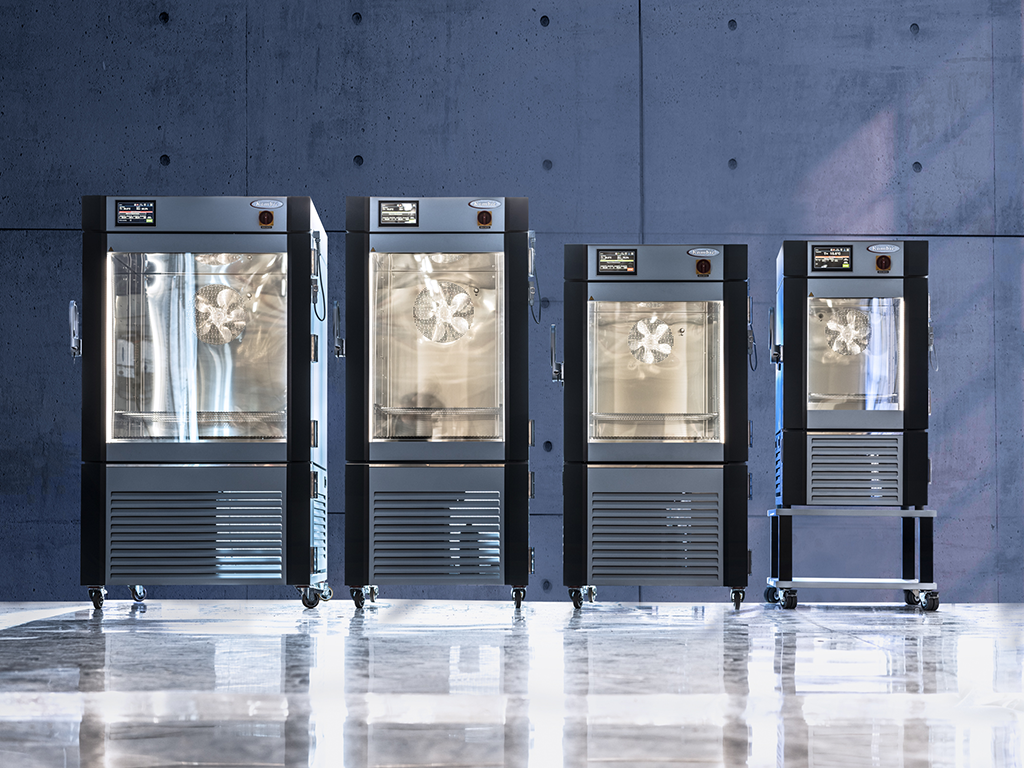

Kambic Temperature Chambers
[23 Models]Kambic Temperature Chambers provide precise, repeatable temperature control for product testing, material testing, environmental simulation and calibration.
Available in 23 models across five specialist ranges, the chambers cover operating temperatures from +5°C to +180°C through to -75°C to +180°C, with options for rapid thermal cycling and capacities from 68 L to 1000 L.
Designed for laboratories, manufacturers and research organisations, the Kambic range combines outstanding temperature stability, intelligent touchscreen controls and robust stainless-steel construction to deliver dependable thermal testing for demanding applications.
- 23 models across five specialist temperature chamber ranges
- Temperature ranges from +5°C to +180°C down to -75°C to +180°C
- Chamber capacities from 68 L to 1000 L
Wide Temperature Range
Choose from heating-only, low-temperature, ultra-low temperature and rapid thermal cycling chambers covering operating temperatures from +5°C to +180°C through to -75°C to +180°C.
Precision Temperature Control
Advanced PID control technology delivers exceptional temperature stability and chamber uniformity for accurate, repeatable testing.
Intelligent Chamber Control
A modern 7-inch touchscreen controller provides programmable temperature profiles, Ethernet and USB connectivity, data logging and remote monitoring.
Built for Demanding Applications
Fully insulated construction, stainless-steel interiors, heated observation windows and high-performance airflow ensure dependable long-term operation.
Kambic Temperature Chambers are designed for laboratories and manufacturers requiring precise environmental control for testing and product development.
Typical applications include:
- Product qualification testing
- Material testing
- Environmental simulation
- Accelerated ageing
- Thermal cycling
- Electronics testing
- Automotive component testing
- Aerospace testing
- Sensor calibration
- Data logger calibration
- Research and development
- Quality assurance
- Manufacturing validation
With a wide range of operating temperatures and chamber sizes, Kambic Temperature Chambers support everything from routine laboratory testing through to demanding industrial environmental simulation.
Kambic Temperature Chambers combine precision temperature control with robust engineering and intuitive operation.
Key features include:
- Heavy-duty lockable castors
- 23 models across five chamber ranges
- Operating temperatures from +5°C to +180°C or -75°C to +180°C
- Chamber capacities from 68 L to 1000 L
- High-performance PID temperature control
- 7-inch capacitive touchscreen controller
- Fully programmable temperature profiles
- Ethernet and USB connectivity
- KK-Tool PC software
- Real-time graphing and data logging
- Stainless-steel chamber interior
- Heated observation window with LED lighting
- Adjustable stainless-steel shelving
- Variable-speed internal air circulation
- Heavy-duty insulated construction
- Dual over-temperature protection
- Access ports for probes and sensors
Standard-Temperature Chambers
Temperature range: +5°C to +180°C

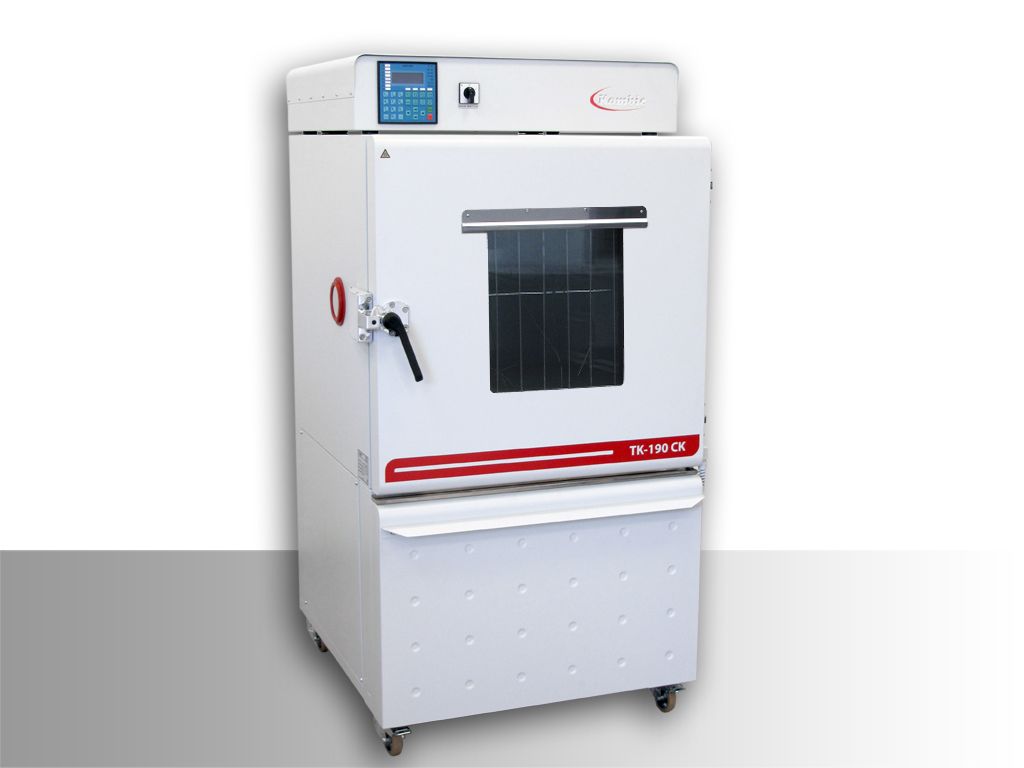

| Specification | TK-68 CK | TK-190 CK | TK-340 CK | TK-500 CK | TK-1000 CK |
|---|---|---|---|---|---|
| Volume | 68 L | 190 L | 340 L | 500 L | 1,000 L |
| External dimensions (W × H × D) | 650 × 1,233 × 796 mm | 835 × 1,661 × 951 mm | 835 × 1,881 × 1,126 mm | 1,035 × 1,880 × 1,381 mm | 1,235 × 1,928 × 1,578 mm |
| Internal dimensions (W × H × D) | 410 × 475 × 350 mm | 600 × 615 × 510 mm | 600 × 835 × 685 mm | 800 × 835 × 800 mm | 1,000 × 1,035 × 1,000 mm |
| Maximum load | 40 kg | 80 kg | 100 kg | 150 kg | 200 kg |
Low-Temperature Chambers
Temperature range: -40°C to +180°C
| Specification | TK-68 CKLT | TK-190 CKLT | TK-340 CKLT | TK-500 CKLT | TK-1000 CKLT |
|---|---|---|---|---|---|
| Volume | 68 L | 190 L | 340 L | 500 L | 1,000 L |
| External dimensions (W × H × D) | 650 × 1,233 × 796 mm | 835 × 1,661 × 951 mm | 835 × 1,881 × 1,126 mm | 1,035 × 1,880 × 1,381 mm | 1,235 × 1,928 × 1,579 mm |
| Internal dimensions (W × H × D) | 410 × 475 × 350 mm | 600 × 615 × 510 mm | 600 × 835 × 685 mm | 800 × 835 × 800 mm | 1,000 × 1,035 × 1,000 mm |
| Maximum load | 40 kg | 80 kg | 100 kg | 150 kg | 200 kg |
Ultra-Low-Temperature Chambers
Temperature range: -75°C to +180°C
| Specification | TK-105 CKULT | TK-190 CKULT | TK-340 CKULT | TK-500 CKULT | TK-1000 CKULT |
|---|---|---|---|---|---|
| Volume | 105 L | 190 L | 340 L | 500 L | 1,000 L |
| External dimensions (W × H × D) | 850 × 1,715 × 1,100 mm | 940 × 1,830 × 1,125 mm | 940 × 2,052 × 1,310 mm | 1,165 × 1,985 × 1,640 mm | 1,375 × 2,070 × 1,900 mm |
| Internal dimensions (W × H × D) | 530 × 500 × 460 mm | 620 × 590 × 515 mm | 620 × 810 × 690 mm | 870 × 800 × 800 mm | 1,070 × 1,000 × 1,000 mm |
| Maximum load | 60 kg | 80 kg | 100 kg | 150 kg | 200 kg |
Ultra-Fast Cooling Chambers
Temperature range: -40°C to +180°C
| Specification | TK-340 CKLT UF | TK-500 CKLT UF | TK-1000 CKLT UF |
|---|---|---|---|
| Volume | 340 L | 500 L | 1,000 L |
| External dimensions (W × H × D) | 835 × 1,986 × 1,576 mm | 1,035 × 1,956 × 1,693 mm | 1,235 × 2,156 × 1,891 mm |
| Internal dimensions (W × H × D) | 670 × 900 × 685 mm | 870 × 870 × 800 mm | 1,070 × 1,070 × 1,000 mm |
| Heating rate | 10°C/min | 7.5°C/min | 8°C/min |
| Cooling rate | 10°C/min | 10°C/min | 10°C/min |
Fast Heating and Cooling Chambers
Temperature range: -40°C to +180°C
| Specification | TK-340 CKLT F | TK-500 CKLT F | TK-1000 CKLT F |
|---|---|---|---|
| Volume | 340 L | 500 L | 1,000 L |
| External dimensions (W × H × D) | 835 × 1,986 × 1,576 mm | 1,035 × 1,956 × 1,693 mm | 1,235 × 2,156 × 1,891 mm |
| Internal dimensions (W × H × D) | 670 × 900 × 685 mm | 870 × 870 × 800 mm | 1,070 × 1,070 × 1,000 mm |
| Heating rate | 5°C/min | 5°C/min | 5°C/min |
| Cooling rate | 5°C/min | 5°C/min | 5°C/min |
Why Choose Kambic Temperature Chambers?
Kambic Temperature Chambers are designed to provide accurate, repeatable thermal testing across a wide variety of laboratory and industrial applications.
Whether you require routine product conditioning, environmental simulation, accelerated ageing or rapid thermal cycling, the range offers a solution tailored to your testing requirements.
With 23 models available across five specialist chamber ranges, Kambic provides the flexibility to select the right combination of operating temperature, chamber capacity and heating or cooling performance.
Advanced touchscreen controls, programmable temperature profiles and robust chamber construction ensure dependable long-term performance, while the technical expertise of Withnell Sensors helps you specify the ideal chamber for your application.
