Kambic Commercial Freeze Dryers & Freeze Drying Machines
The Kambic LIOSMART 100 is an industrial-scale commercial freeze dryer developed for controlled, repeatable production across food, pharmaceutical manufacturing and research applications.
Its configurable shelf system provides between two and ten shelves, offering a total usable area from 1.44 m² to 7.2 m². A 100 kg ice condenser capacity supports demanding production cycles, while programmable process control helps maintain consistent conditions throughout each batch.
Available for standalone installation or integration into a clean-room wall, the LIOSMART 100 can be configured around the process, facility and production requirements of each application.
- 100 kg ice condenser capacity per 24 hours
- Configurable shelf area from 1.44 m² to 7.2 m²
- Standalone or clean-room wall installation
High Capacity Freeze Drying
Designed for commercial production with a condenser capacity of 100 kg of ice per 24 hours.
Flexible Shelf Configuration
Configurable shelf system with 2 to 10 shelves, providing between 1.44 m² and 7.2 m² of drying area.
Programmable Process Control
PLC-based controls with programmable freeze drying cycles, process visualisation and reporting for repeatable production.
Distribution or Reception
Food-grade AISI 304 stainless steel chamber designed for reliable operation and easy cleaning.
Commercial Food Production
Preserve suitable fruit, vegetables, ingredients and prepared products while retaining product structure and extending storage life.
Pharmaceutical Manufacturing
Support controlled freeze-drying processes for suitable pharmaceutical products where repeatability, monitoring and process documentation are essential.
Research and Development
Develop, test and refine freeze-drying cycles before transferring successful processes into larger-scale production.
Pilot and Contract Production
Provide flexible capacity for pilot manufacturing, specialist batches and contract freeze-drying projects with changing production requirements.
100 kg Condenser Capacity
The integrated condenser can capture up to 100 kg of ice over 24 hours, supporting larger products and commercial batch sizes.
Wide Shelf Temperature Range
Shelf temperatures can be controlled from -40°C to +70°C to support the freezing, primary drying and secondary drying stages.
Flexible Shelf Configuration

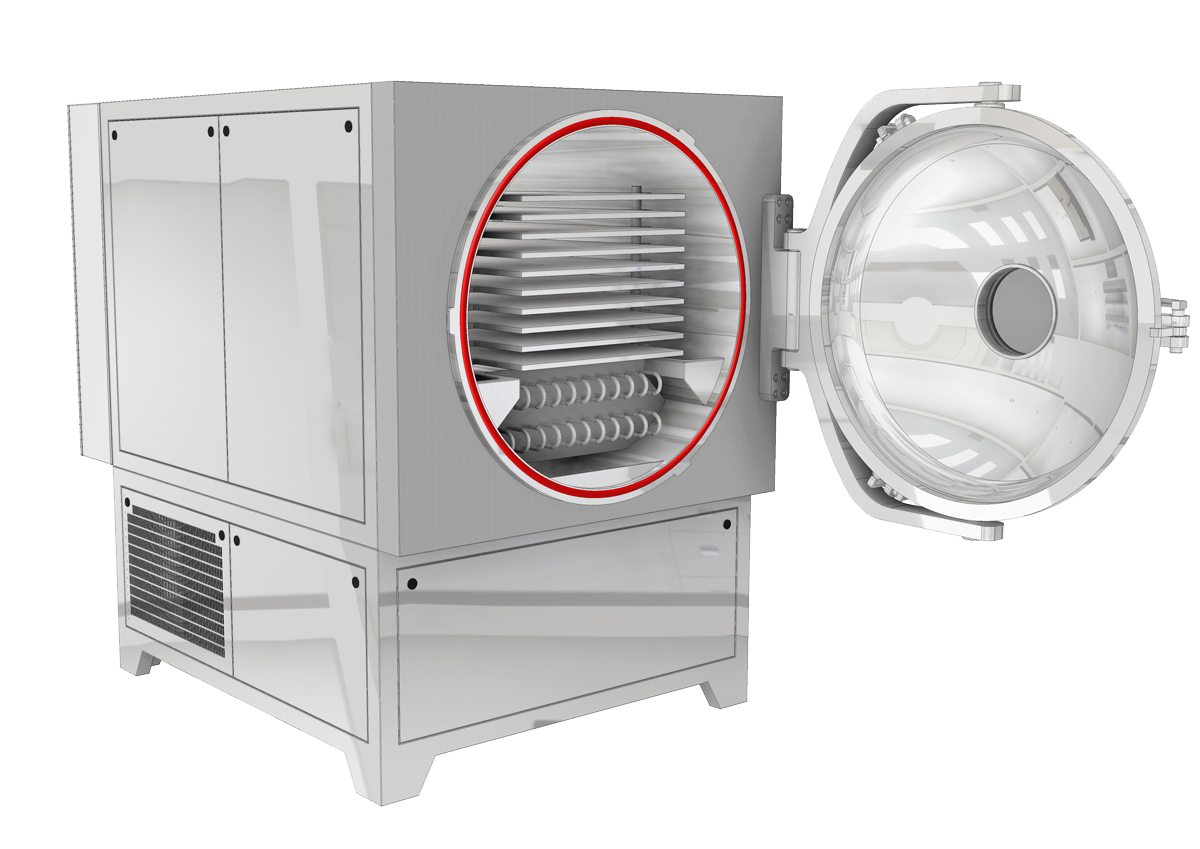

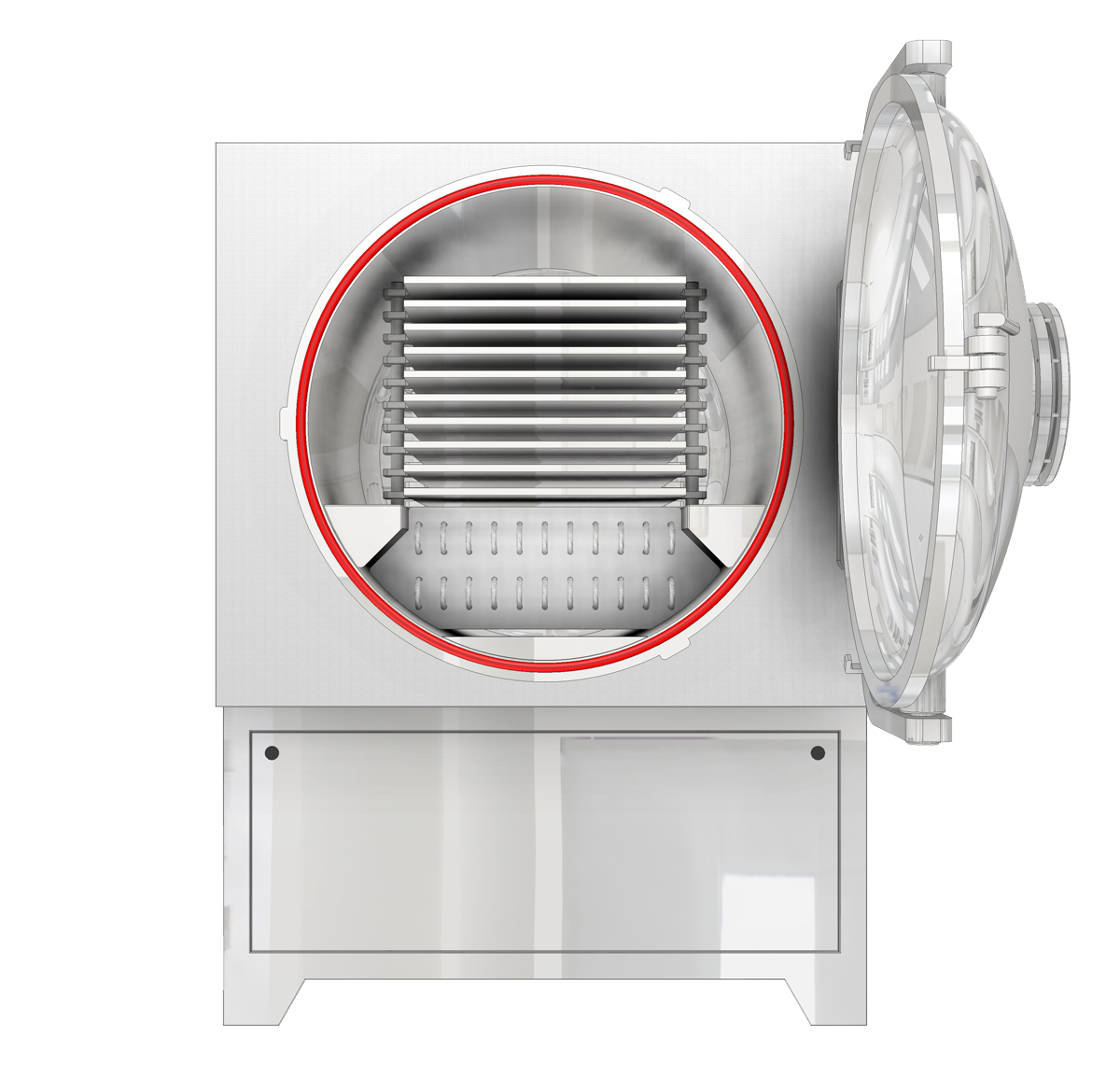

The chamber can accommodate between two and ten shelves, with a total shelf area ranging from 1.44 m² to 7.2 m².
Automated Process Control
PLC-based controls allow operators to program and manage each stage of the freeze-drying process, with cycle visualisation and historical reporting.
Controlled Vacuum System
Vacuum control and a Pirani gauge support accurate pressure monitoring throughout the drying cycle, with rotary-vane and dry-pump options available.
Fast Condenser Defrost
The integrated defrost system reduces turnaround time between batches without requiring an external hot-water supply.

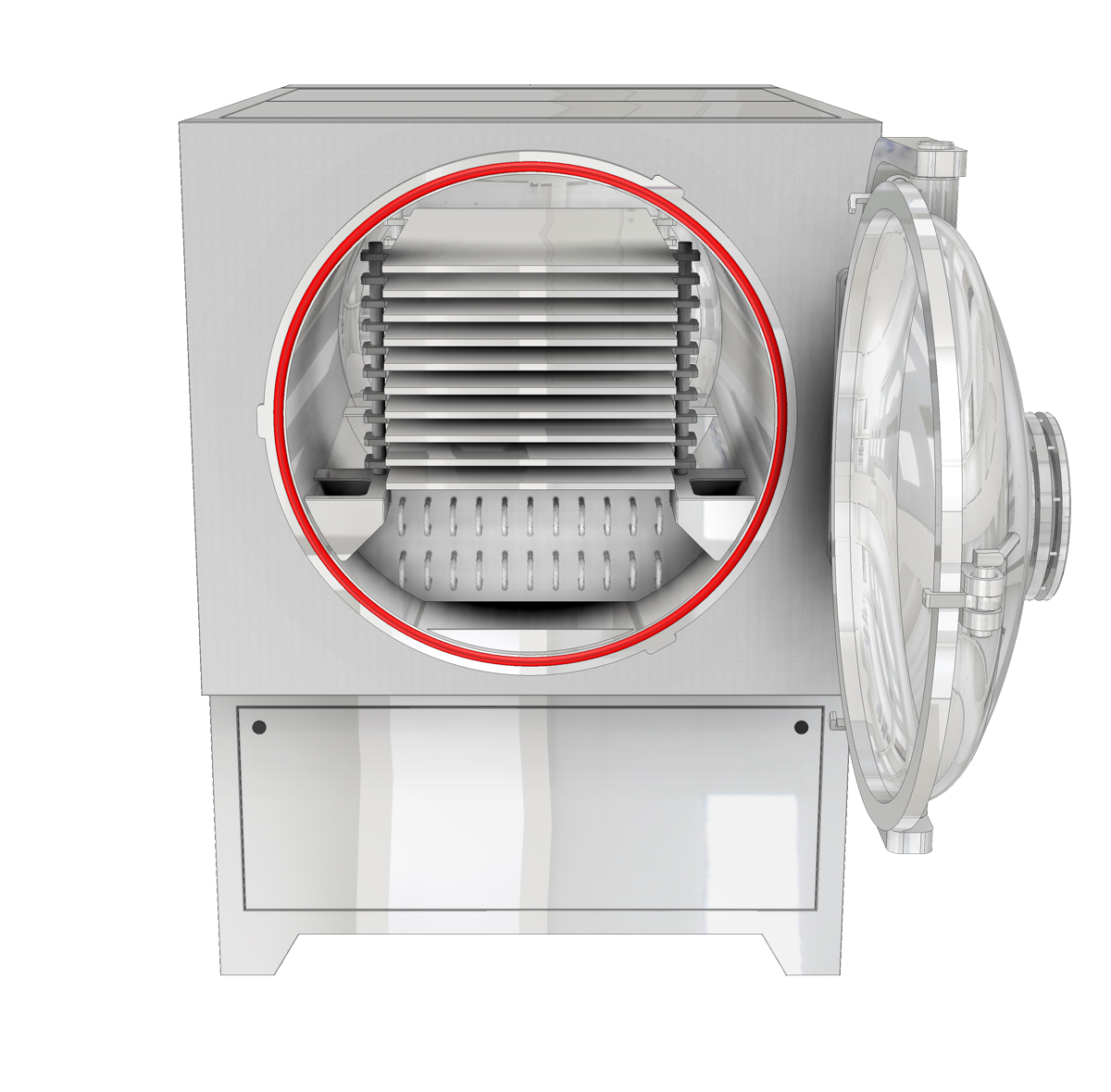

Clear Process Visibility

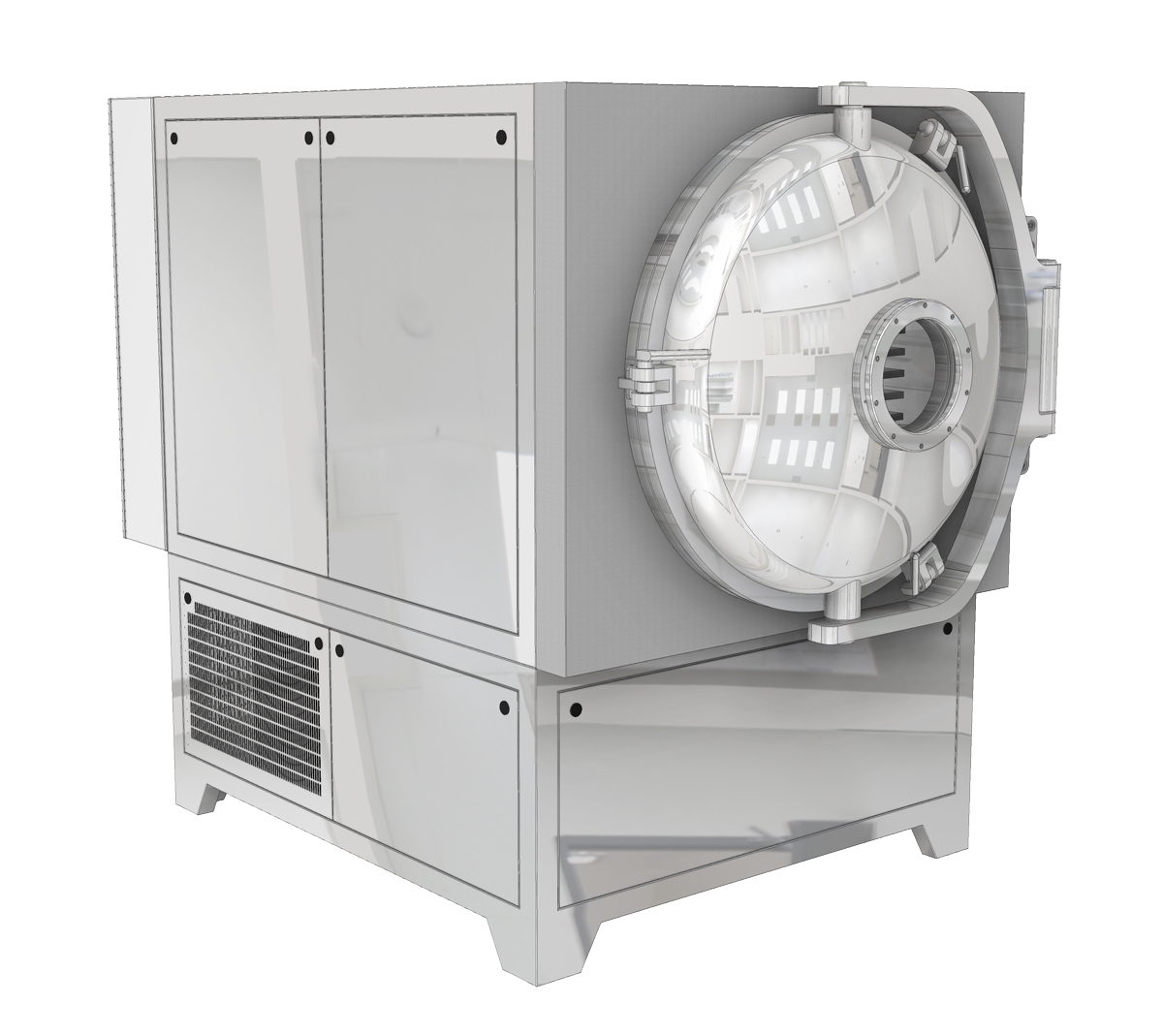

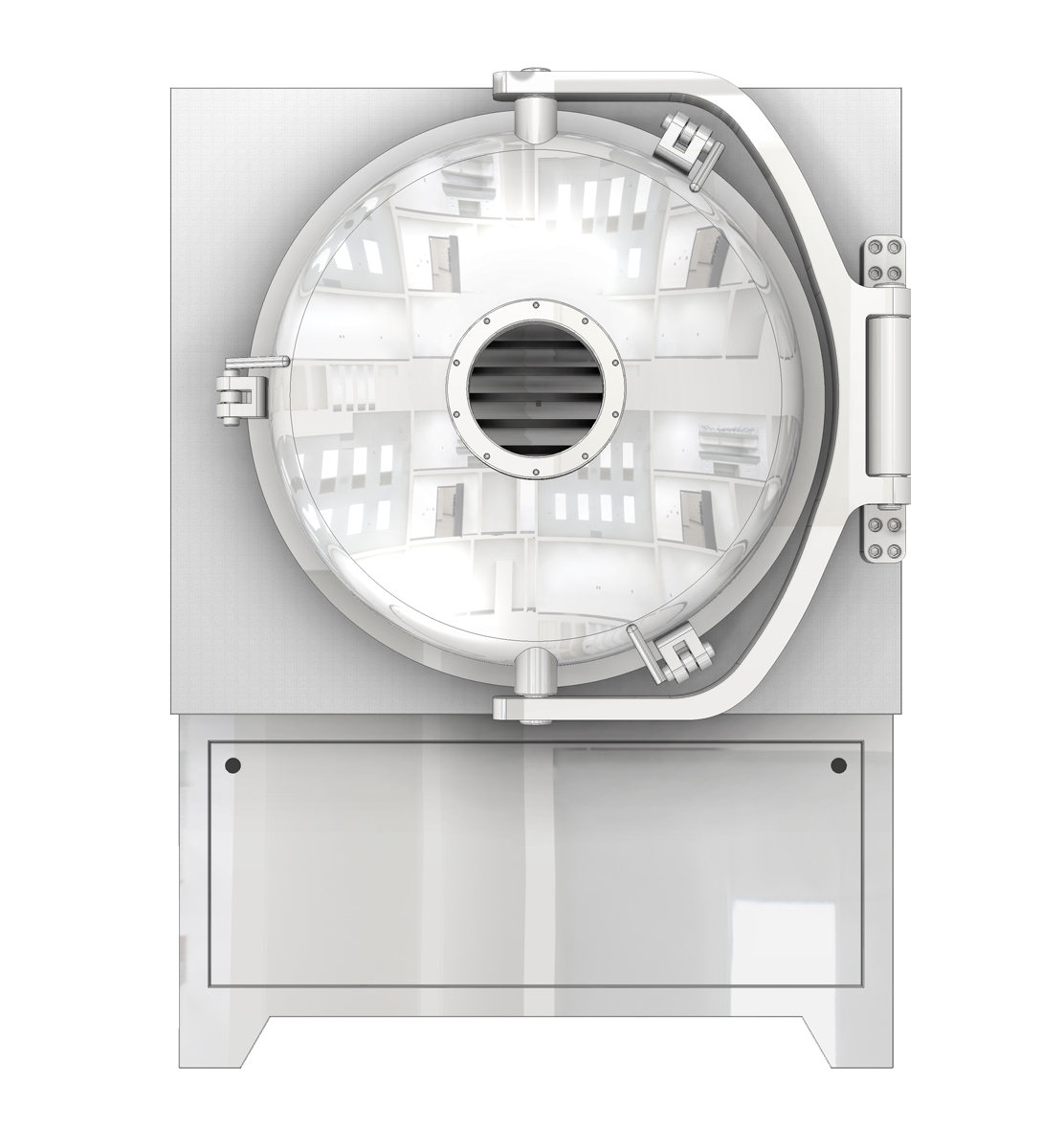

A large observation window allows operators to monitor the product and process without opening the chamber.
Flexible Installation

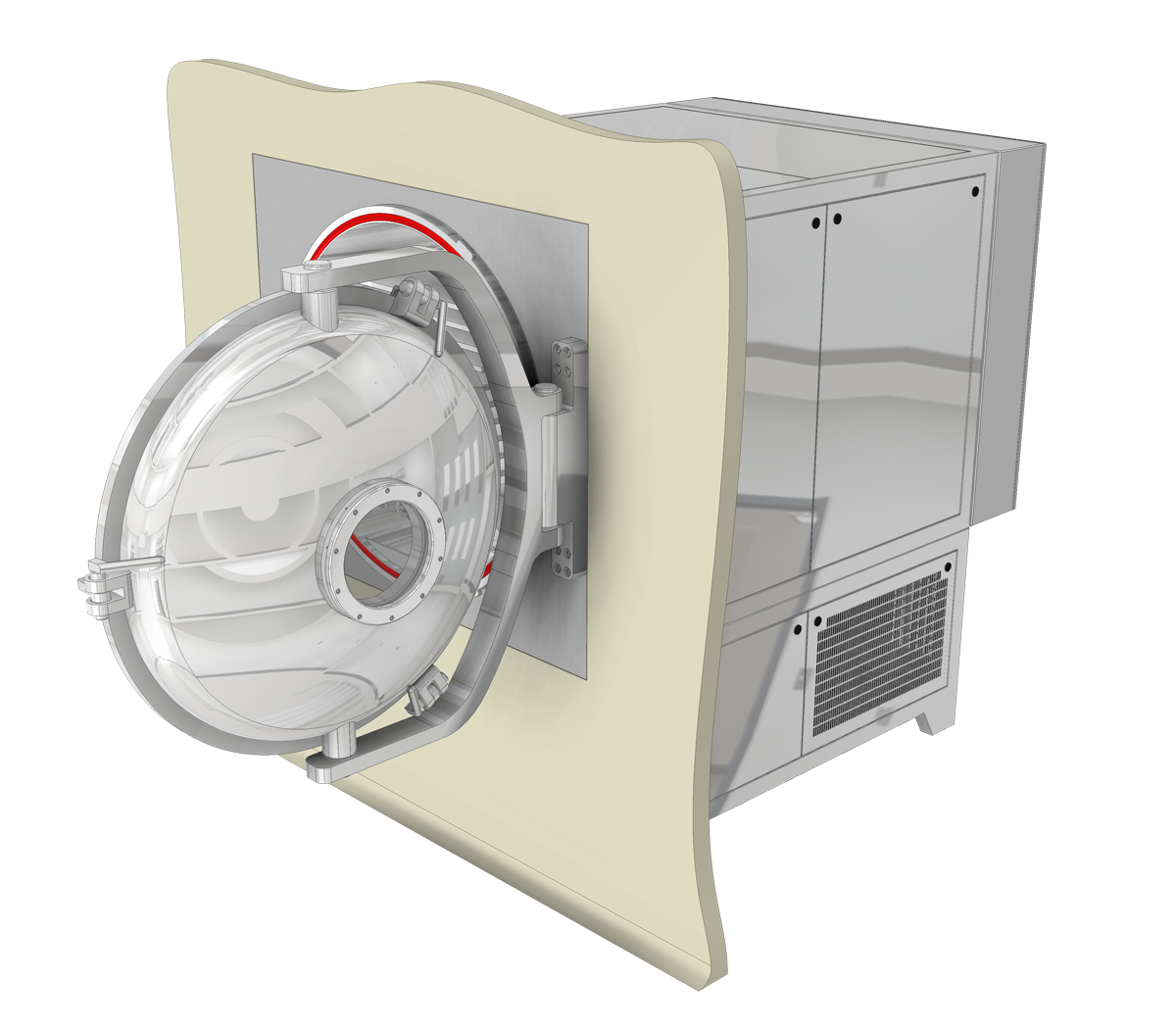

The front-facing design supports conventional standalone use or installation through a clean-room wall where process separation is required.
The Kambic Liosmart 100 is designed to provide flexible commercial freeze drying capacity for a wide variety of production environments.
| Specification | LIOSMART 100 |
|---|---|
| Maximum Condenser Capacity | 100 kg of ice per 24 hours |
| Condenser Temperature | -50°C |
| Shelf Temperature Range | -40°C to +70°C |
| Number of Shelves | Configurable from 2 to 10 |

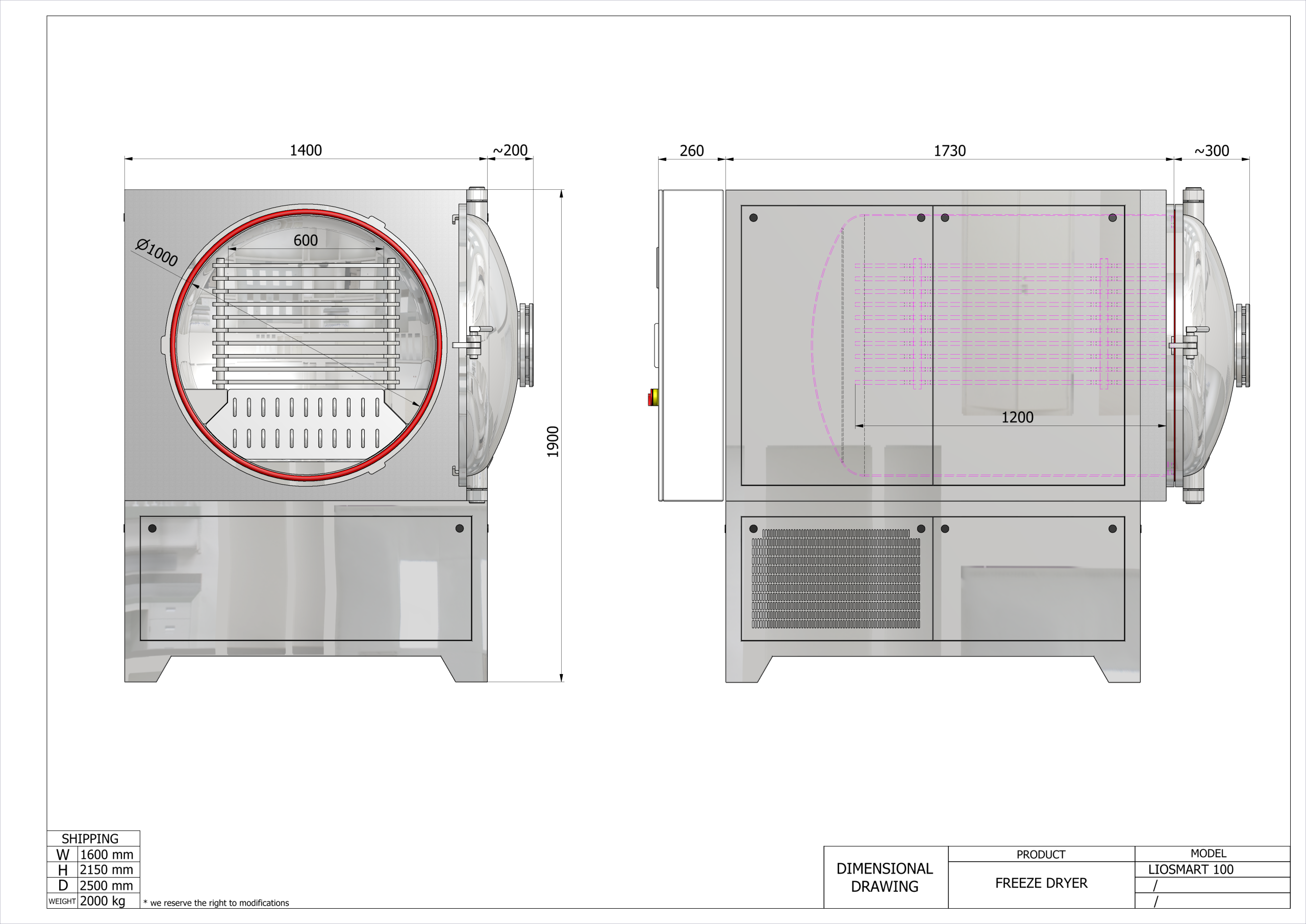

| Shelf Dimensions | 600 × 1,200 mm |
| Total Shelf Area | 1.44 m² with 2 shelves; 7.2 m² with 10 shelves |
| Shelf Cooling Rate | +20°C to -20°C in under 60 minutes |
| Chamber Dimensions | Ø1,000 × 1,300 mm |
| External Dimensions (W × D × H) | 1,400 × 1,800 × 1,900 mm |
| Product-Contact Construction | Polished AISI 304 stainless steel |
| Vacuum Capacity | 80 m³/hour; rotary-vane or dry-pump options |
| Power Supply | 3 × 400 V, 50 Hz, 15 kW |
Why Choose Kambic Commercial Freeze Dryers?
The LIOSMART 100 combines commercial processing capacity with the flexibility to configure the equipment around individual products and production requirements.
Its selectable shelf configuration makes it possible to balance available surface area against product height. Programmable control, vacuum monitoring and process reporting support the development of repeatable production cycles and provide clearer oversight of each batch.
Polished stainless-steel product-contact surfaces support routine cleaning, while the large observation window allows visual process monitoring. Standalone and clean-room installation options also allow the equipment to be integrated into different production environments.
Withnell Sensors can help specify the most suitable shelf, tray, vacuum-pump and installation configuration for your application. Installation, technical advice and ongoing support are also available.
DOWNLOAD
Explore the LIOSMART 100 Brochure
Download the product brochure for detailed technical specifications, dimensions and available configuration options.
Service & Maintenance
Preventative maintenance, equipment health checks and repair support for Haier Biomedical, FARRAR and Kambic equipment supplied by Withnell Sensors.
- Inspecting doors, handles, gaskets and seals
- Checking backup batteries and electrical components
- Inspecting pipework and testing for refrigerant leaks
- Removing ice and cleaning key components
- Completing operational and safety checks
