Kambic Black Body Calibrators
[2 Models]Kambic Black Body Calibrators provide metrology-grade infrared calibration for thermal cameras, infrared thermometers and thermographic measurement equipment.
Combining a high-performance calibration bath with interchangeable precision black body cavities, they deliver exceptional temperature stability and uniformity for accurate, repeatable non-contact temperature calibration.
Available in two temperature ranges, the Kambic range is designed for calibration laboratories, manufacturers and testing facilities requiring traceable, high-accuracy infrared calibration across a wide range of operating temperatures.
- Designed for calibrating infrared thermometers and thermal cameras
- Precision black body cavities with metrology-grade performance
- Two temperature ranges from -20°C to +250°C
Metrology-Grade Accuracy
Exceptional temperature stability and uniformity for demanding calibration applications.

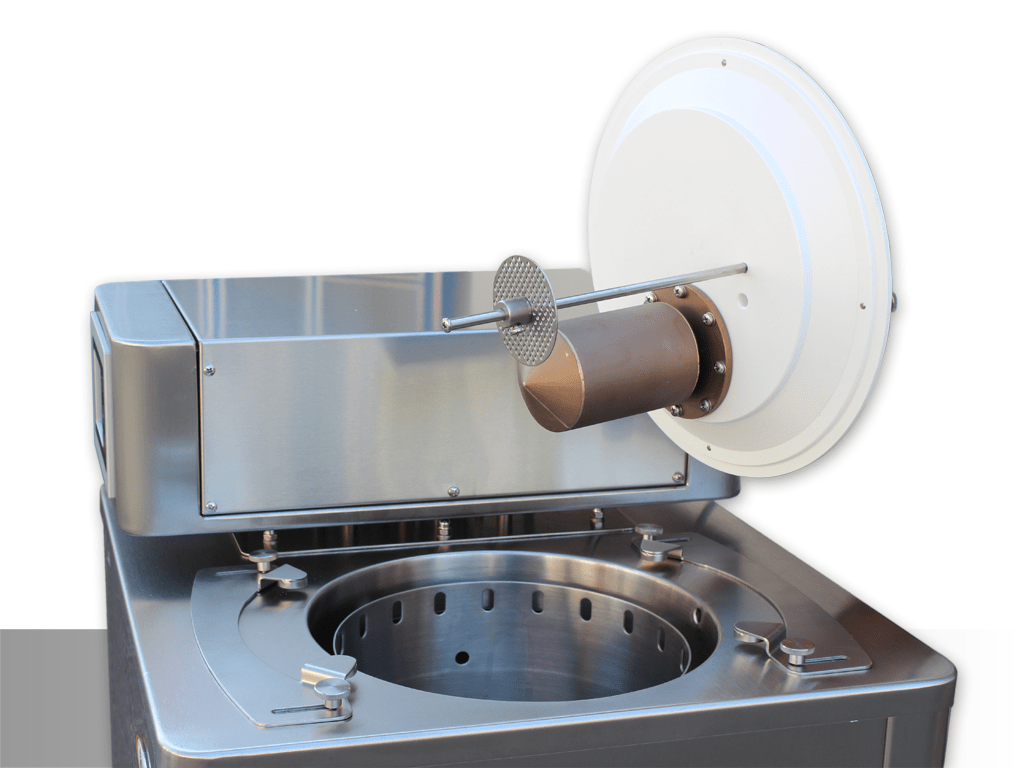

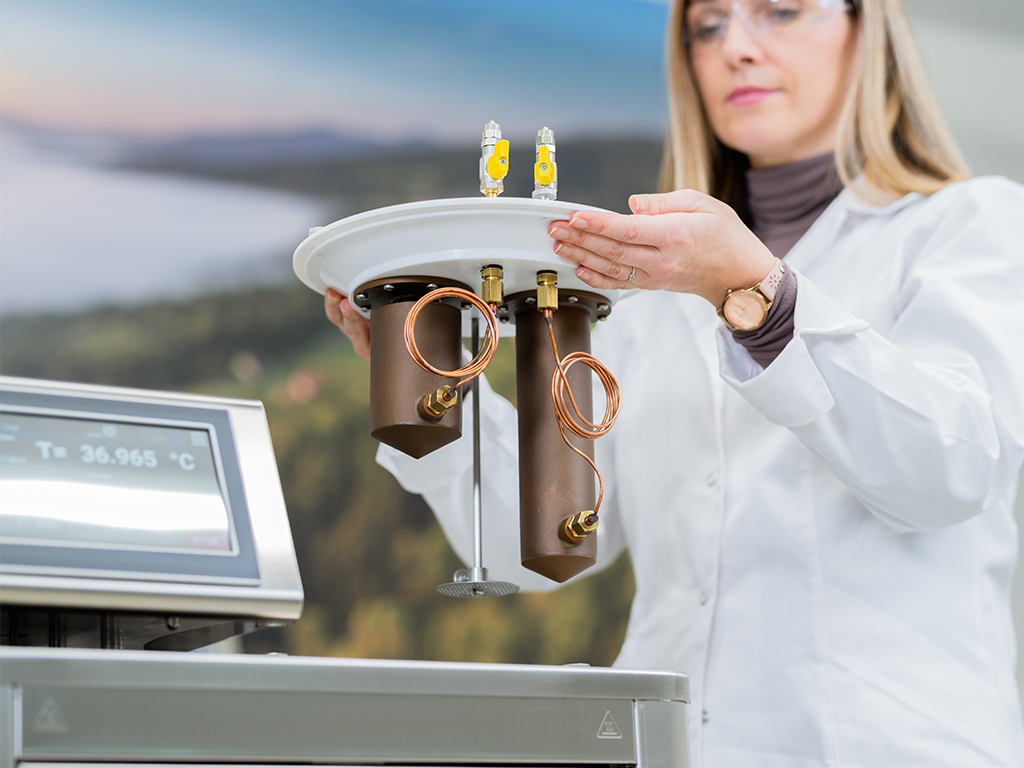

Precision Black Body Cavities
Interchangeable cavities manufactured to recognised international standards for accurate infrared calibration.
Advanced Temperature Control
7-inch touchscreen controller with Ethernet, USB connectivity and programmable operation.
Designed for Infrared Calibration
Purpose-built for calibrating infrared thermometers, thermal cameras and thermographic equipment.
Kambic Black Body Calibrators are designed for precision infrared calibration across a wide range of applications, including:
- Temperature measurement verification
- Infrared thermometer calibration
- Thermal camera calibration
- Thermographic equipment calibration
- Calibration laboratory testing
- ISO 17025 calibration laboratories
- Manufacturing quality assurance
- Process temperature verification
- Medical infrared thermometer calibration
- Industrial IR sensor calibration
- Metrology laboratories
- Research and development
Kambic Black Body Calibrators combine exceptional thermal performance with robust engineering for reliable infrared calibration.
Key features include:
- Optional ISO/IEC 17025 accredited evaluation report available
- Temperature ranges of +40°C to +250°C or -20°C to +130°C
- Temperature stability down to ±0.003°C
- Temperature uniformity of ±0.007°C

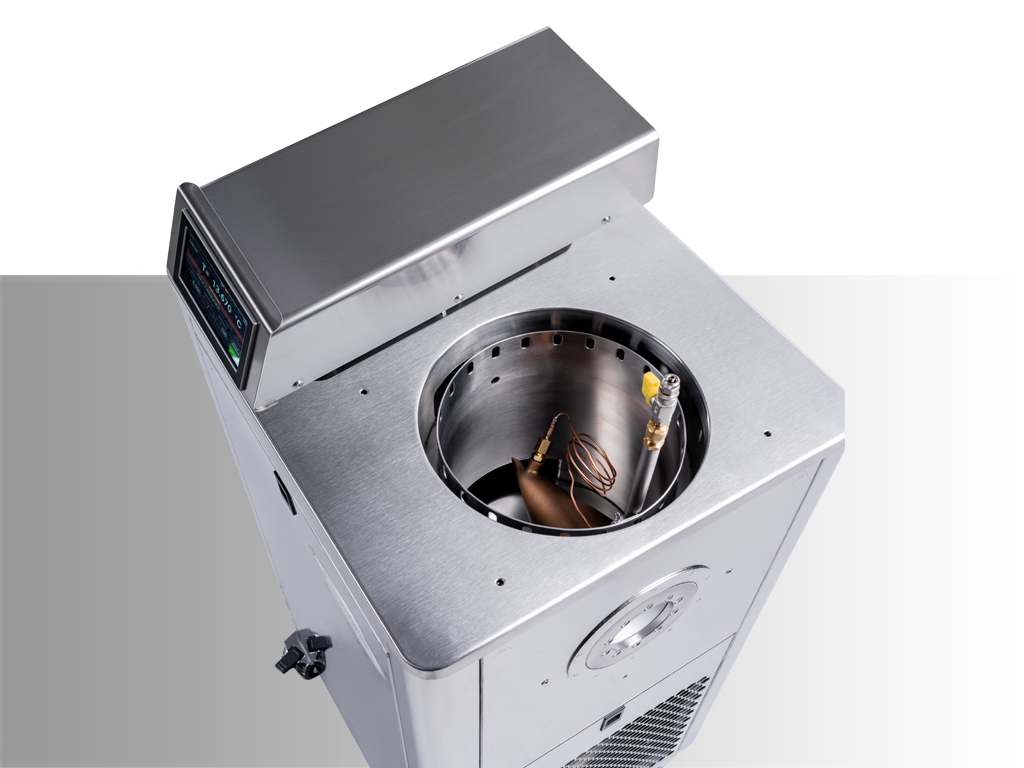

- Precision 15L calibration bath with unique vertical flow design

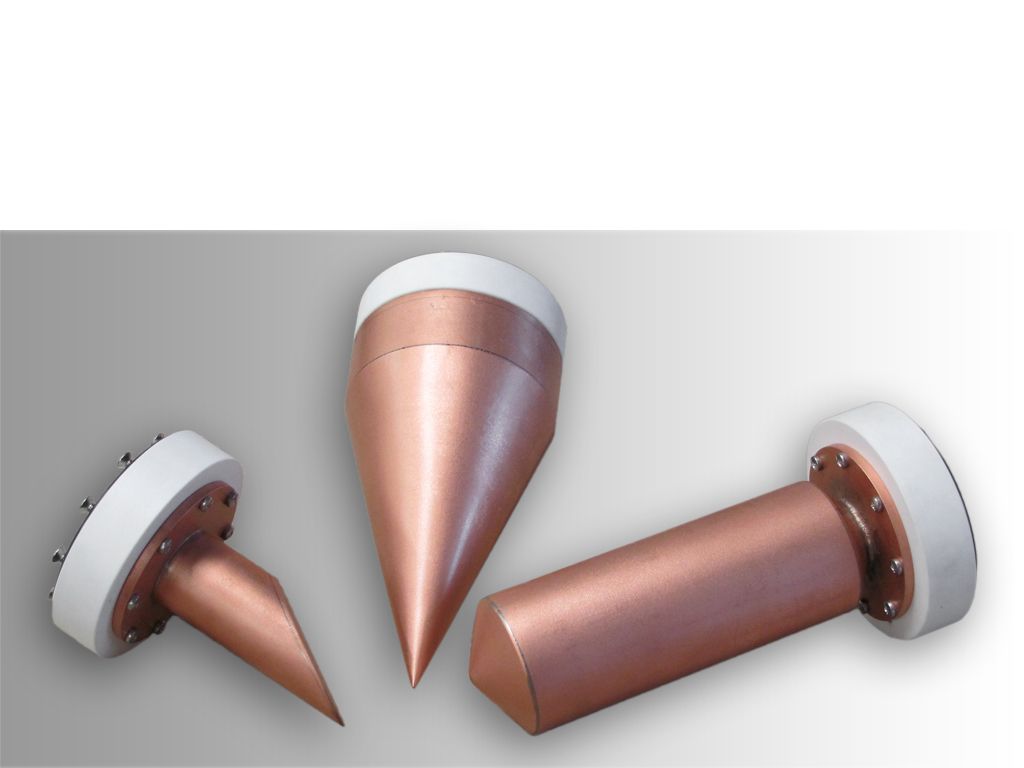

- Interchangeable black body cavities to ASTM, JIS and CEN standards
- 7-inch capacitive touchscreen controller
- Ethernet and USB communications as standard
- AISI 304 stainless steel construction with rounded hygienic corners
- Vertical probe fixture included as standard

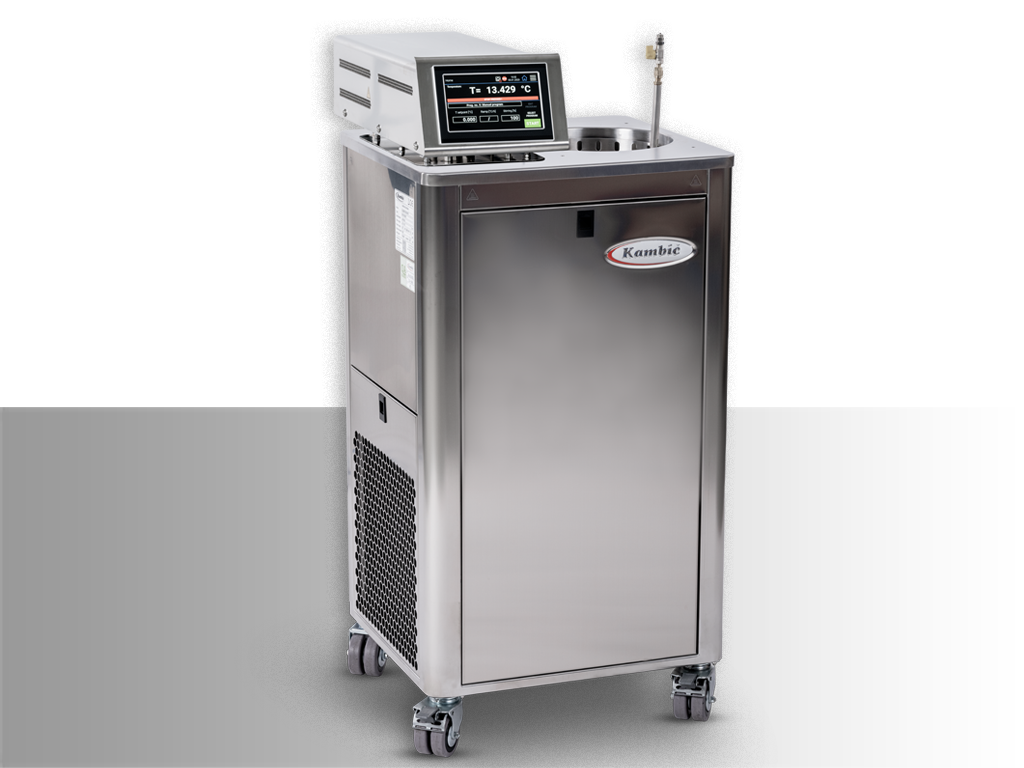

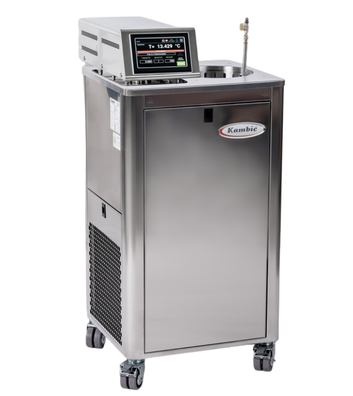

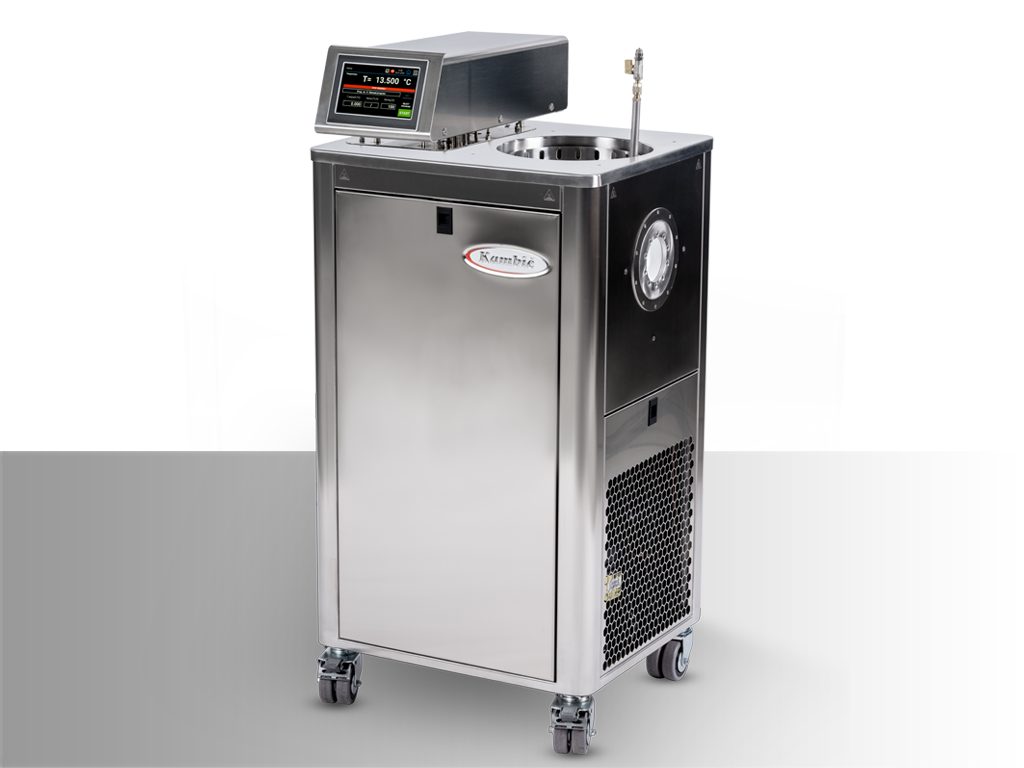

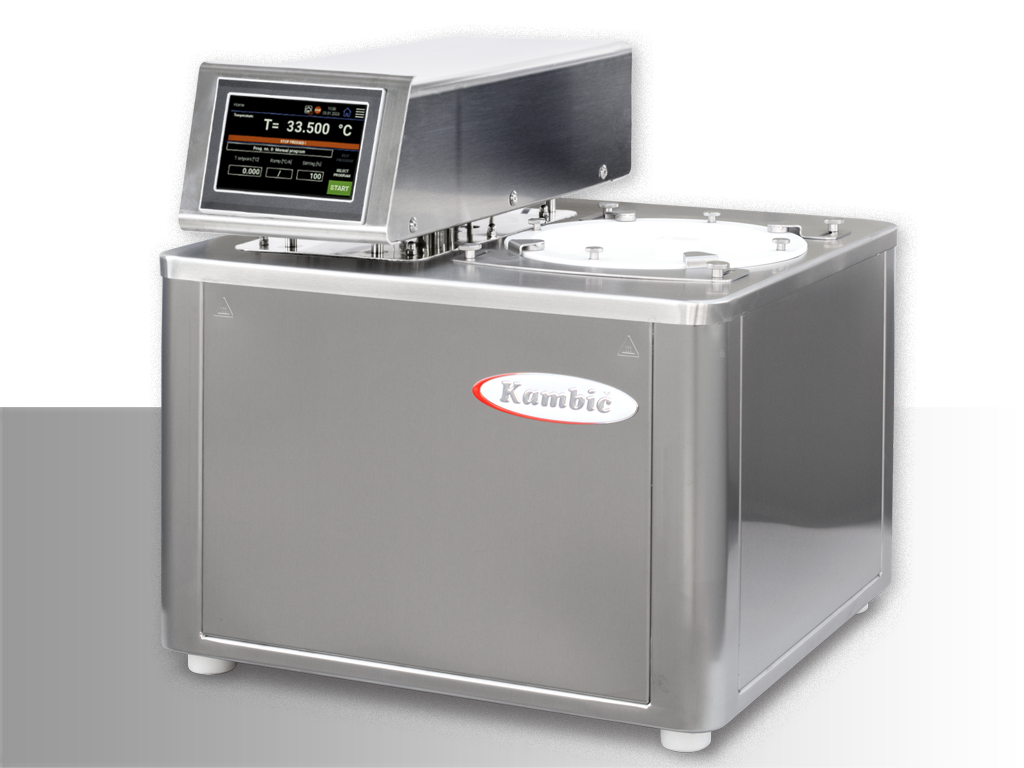

The Kambic Black Body Calibrator range includes two models covering both high and low temperature infrared calibration applications.
| Specification | OB-15/2 BB | OB-15/2 BB LT |
|---|---|---|
| Volume | 15 L | 15 L |
| Temperature range | +40°C to +250°C | -20°C to +130°C |
| External dimensions (W × H × D) | 530 × 1,090 × 470 mm | 530 × 1,090 × 470 mm |
| Internal dimensions (diameter × immersion depth) | 225 × 270 mm | 225 × 500 mm |
Both models provide 0.001°C display resolution, Ethernet and USB communications, and compatibility with a wide range of interchangeable black body cavities for different international calibration standards.
Why Choose Kambic Black Body Calibrators?
Accurate infrared temperature measurement depends on the quality of the reference source.
Kambic Black Body Calibrators combine a precision calibration bath with interchangeable black body cavities to create highly stable, uniform radiating surfaces for calibrating infrared thermometers and thermal imaging systems.
Designed for professional metrology laboratories and industrial calibration environments, the range delivers outstanding thermal performance, intuitive touchscreen operation and flexible cavity options to support a wide variety of international calibration standards.
Supported by Withnell Sensors, you’ll also benefit from expert application advice, installation support and ongoing technical assistance.
DOWNLOAD
Explore the Kambic Black Body Calibrator Brochure
Download the brochure for technical specifications, black body cavity options and available accessories.
Service & Maintenance
Preventative maintenance, equipment health checks and repair support for Haier Biomedical, FARRAR and Kambic equipment supplied by Withnell Sensors.
- Inspecting doors, handles, gaskets and seals
- Checking backup batteries and electrical components
- Inspecting pipework and testing for refrigerant leaks
- Removing ice and cleaning key components
- Completing operational and safety checks
Talk to a technical specialist
We are always on hand to offer expert and impartial advice and technical support.
