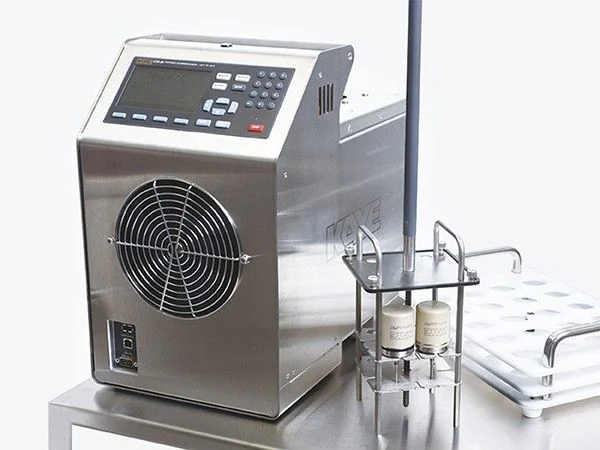

Kaye LTR Dry Block & Liquid Bath Temperature Calibrators
[2 Models]The Kaye LTR Dry Block & Liquid Bath Temperature Calibrators provide a versatile, all-in-one solution for temperature calibration and thermal validation. Designed specifically for pharmaceutical, biotechnology and life science applications, the LTR range combines the functionality of a dry block calibrator, liquid bath temperature calibrator and surface temperature calibrator in a single portable instrument.
Available as the Kaye LTR-140 and the advanced Kaye LTR-150, these multi-function calibrators enable fast, accurate calibration of thermocouples, RTDs, process sensors and validation equipment. Fully compatible with Kaye Validator AVS, Validator 2000, ValProbe, RF ValProbe and IRTD systems, the LTR series streamlines calibration workflows while maintaining the accuracy and traceability required in regulated industries.
- Dry block, liquid bath and surface calibration in one instrument
- Calibrate up to 48 thermocouples simultaneously (LTR-150)
- Compatible with Kaye Validator AVS, ValProbe and IRTD
- Fast heating and cooling for improved productivity
Three Calibration Functions
Operate as a dry block calibrator, liquid bath temperature calibrator or surface temperature calibrator using interchangeable inserts.
High Capacity Calibration
Calibrate up to 48 thermocouples at the same time, significantly reducing validation time.
Designed for Thermal Validation
Engineered specifically for pharmaceutical thermal validation, qualification and sensor verification.
Fully Integrated with Kaye Systems
Compatible with Kaye Validator AVS, Validator 2000, ValProbe, RF ValProbe and IRTD reference probes.
The Kaye LTR range is designed for accurate temperature calibration across pharmaceutical manufacturing, biotechnology facilities and regulated production environments.
Typical applications include:
- Thermocouple calibration
- RTD calibration
- Temperature sensor calibration
- Thermal validation
- Autoclave validation
- Steam-in-place (SIP) validation
- Freeze dryer validation
- Stability chamber qualification
- Environmental chamber qualification
- Process sensor verification
- Surface temperature calibration
- Calibration laboratory applications
- Pharmaceutical manufacturing
- Biotechnology production
- GMP validation
The Kaye LTR range combines multiple calibration technologies into a single instrument, delivering exceptional flexibility for both laboratory and field calibration.
- Available as LTR-140 and LTR-150
- Dry block, liquid bath and surface calibration functionality
- Operating range from -30°C to +150°C (model dependent)
- Fast heating and cooling performance
- Calibrate up to 48 thermocouples simultaneously (LTR-150)
- High stability of ±0.01°C
- Uniformity up to 0.1°C
- Large colour touchscreen display
- Compatible with thermocouples, RTDs, IRTD reference probes and ValProbe loggers
- Optional micro bath insert with magnetic stirrer
- Optional surface calibration insert
- Interchangeable inserts for specialist process probes
- Automatic calibration through Kaye Validator AVS and Validator 2000 software
- Stand-alone operation without requiring a PC
- USB, Ethernet and serial communications
- Universal 100–240 VAC power supply
The Kaye LTR range includes two models to suit different calibration requirements.
| Specification | LTR-140 | LTR-150 |
|---|---|---|
| Temperature Range | -25°C to +140°C or -40°C to +140°C | -30°C to +150°C |
| Calibration Functions | Dry Block | Dry Block, Liquid Bath & Surface |
| Maximum Thermocouples | Up to 18 | Up to 48 |
| Stability | Up to ±0.01°C | Up to ±0.01°C |
| Uniformity | Up to 0.1°C | Up to 0.1°C |
| Display | Digital | 7″ Colour Touchscreen |
| Interfaces | Validation Software | USB, Ethernet & Serial |
| Compatible With | Kaye Validation Systems | Validator AVS, Validator 2000, ValProbe, RF ValProbe & IRTD |
The LTR-150 can be configured with optional dry block inserts, micro bath kits, surface calibration inserts, thermocouple fixtures, silicone oil and transport cases, allowing it to adapt to a wide variety of thermal validation applications
Why Choose the Kaye LTR Range?
Traditional calibration systems often require separate dry blocks, liquid baths and surface calibrators to cover different applications. The Kaye LTR range combines all three calibration methods into a single, compact instrument, reducing equipment costs while improving efficiency for validation engineers.
Designed specifically for pharmaceutical thermal validation, the LTR series enables faster calibration, greater flexibility and seamless integration with existing Kaye validation systems.
Whether calibrating thermocouples, RTDs, ValProbe loggers or specialist process sensors, the Kaye LTR delivers the accuracy, traceability and productivity required in regulated environments.
Supported by Withnell Sensors, you’ll also benefit from expert technical advice, installation support, UKAS calibration services and ongoing maintenance throughout the life of your equipment.
DOWNLOAD
Explore the Kaye LTR Dry Block & Liquid Bath Calibrators Brochure
Download the Kaye LTR brochure for detailed technical specifications, calibration functions, available inserts, accessories and performance data.
