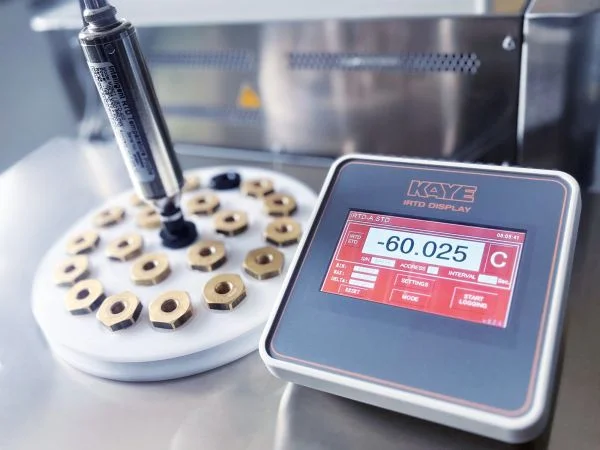

Kaye IRTD (Intelligent Resistant Temperature Device)

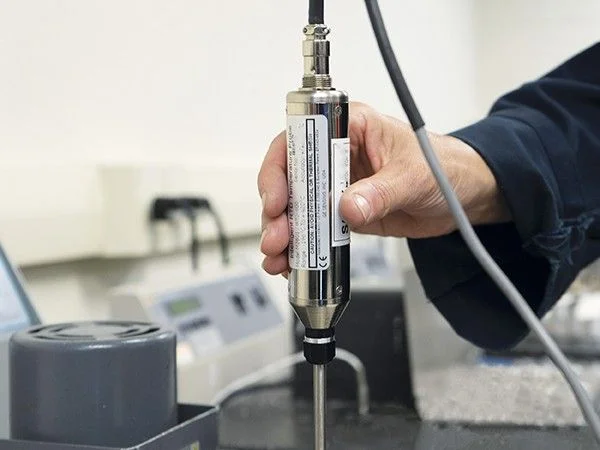

The Kaye IRTD (Intelligent Resistant Temperature Device) is a highly accurate, traceable temperature standard designed for thermal validation and sensor calibration. Unlike conventional reference probes, the Kaye IRTD combines a precision platinum RTD sensor with integrated electronics, allowing calibration data and temperature conversion to be managed within the probe itself for exceptional measurement accuracy and simplified calibration workflows.
Operating across an ultra-wide temperature range from -196°C to +420°C, the Kaye IRTD communicates directly with Kaye validation systems, automatically calculating sensor offsets during calibration while eliminating many of the common sources of measurement error associated with conventional reference probes.
- Temperature range -196°C to +420°C
- Accuracy of ±0.025°C
- Resolution of 0.001°C
- Direct integration with Kaye validation systems
Traceable Temperature Standard
A secondary reference temperature standard providing highly accurate, traceable temperature measurements for calibration and validation.
Integrated Intelligence
Calibration electronics are built directly into the probe, reducing errors associated with external measurement devices.
Exceptional Accuracy
Delivers measurement accuracy of ±0.025°C across an exceptionally wide operating range.
Simplified Sensor Calibration
Automatically compares sensors against the IRTD and calculates offsets during calibration, improving efficiency and consistency.
The Kaye IRTD is designed for high-accuracy temperature measurement and calibration across pharmaceutical, biotechnology and regulated manufacturing environments.
Typical applications include:
- Thermal validation

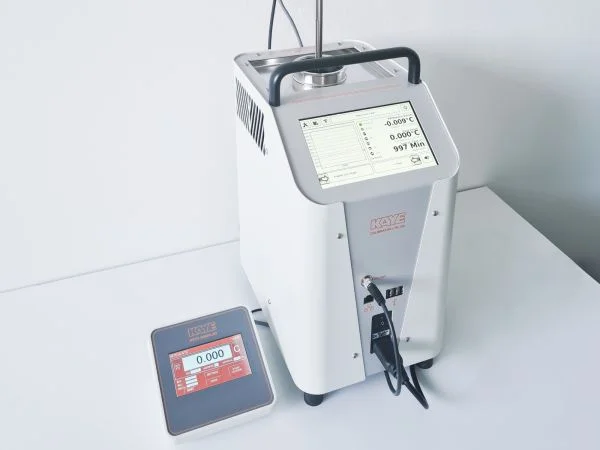

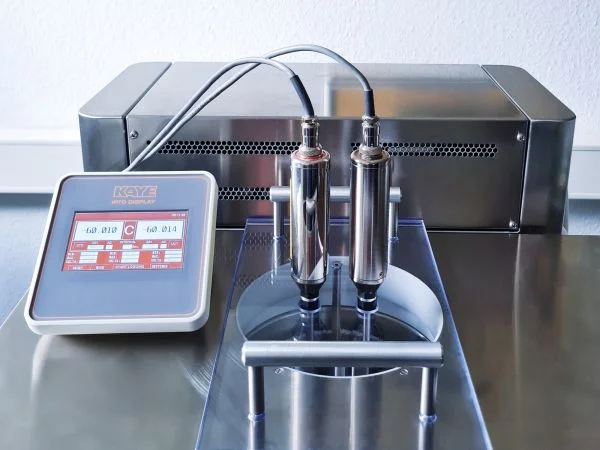

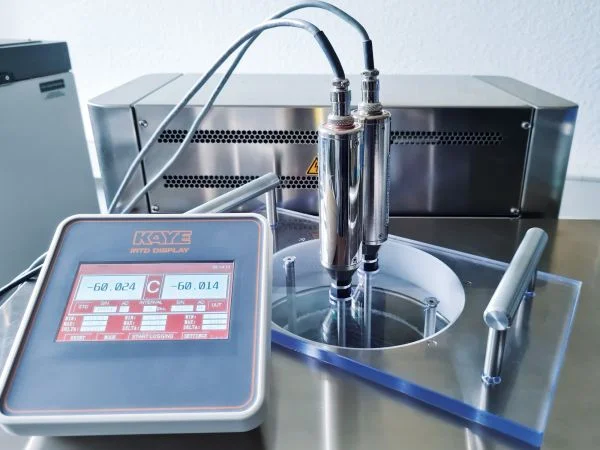

- Temperature sensor calibration
- Thermocouple calibration
- RTD calibration
- Autoclave validation
- Freeze dryer validation
- Stability chamber qualification
- Environmental chamber qualification
- Steam-in-place (SIP) validation
- Process temperature verification
- Calibration laboratories
- Pharmaceutical manufacturing
The Kaye IRTD combines precision temperature measurement with intelligent electronics to deliver reliable and repeatable calibration performance.
- Temperature range from -196°C to +420°C
- Accuracy of ±0.025°C
- Resolution of 0.001°C
- Integrated electronics eliminate external conversion errors

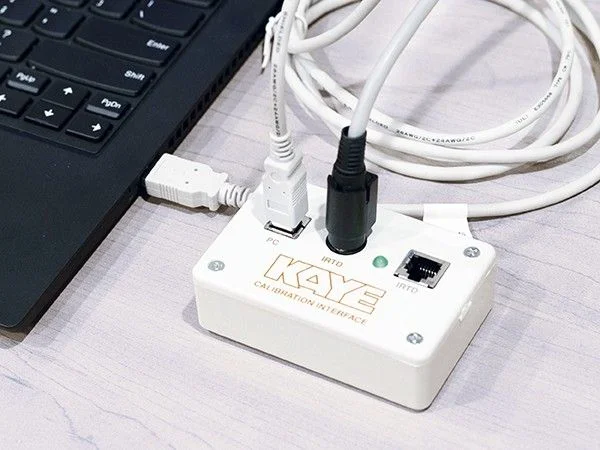

- Direct communication with Kaye validation systems
- Automatic sensor offset calculation
- Supports automated sensor calibration workflows

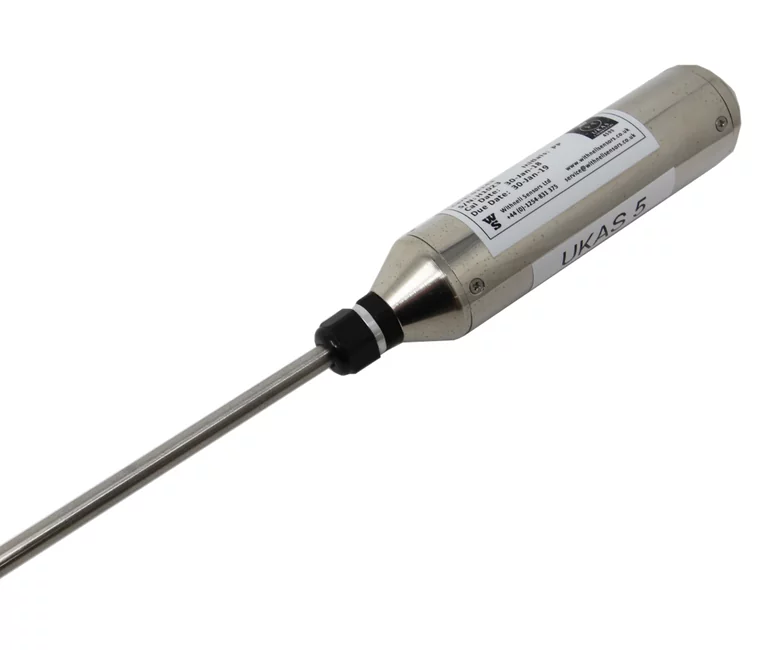

- 200 Ohm platinum RTD sensing element
- Inconel 600 sensor sheath
- NIST and DAkkS traceable calibration
- Typical recommended recalibration interval of one year

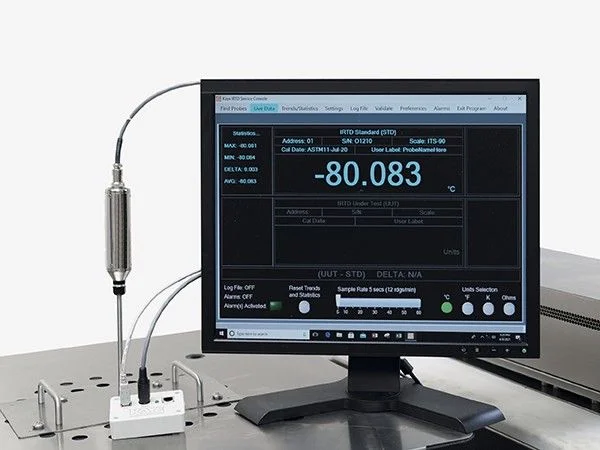

- IRTDWin software for probe stability monitoring and verification
| Specification | IRTD-400 |
|---|---|
| Temperature range | −196°C to +420°C |
| Accuracy across range | ±0.025°C |
| Resolution | 0.001°C |
| Sensor element | 200 Ω platinum RTD sensor |
| Sheath material | Inconel 600 |
| Minimum immersion depth | 101.6 mm (4 in) |
| Calibration | Traceable to NIST and DAkkS-calibrated in Europe |
| Recommended calibration interval | 1 year |
| Power to probe | Unregulated DC, 10–25 V |
| Probe power | First probe: 850 mW at 15 V Each additional probe: 550 mW |
| Power supply | 110 VAC US-style or 230 VAC VDE-approved adaptor |
| Measurement rate | 1 reading per second |
| Ambient operating temperature | 0°C to +60°C |
| Operating humidity | 0% to 95% RH, non-condensing |
| Overall length | 603 mm |
| Grip dimensions | 89 × 32 mm |
| Sensor sheath dimensions | 457 × 6.35 mm |
Accuracy applies for one year at an ambient temperature of 0–60°C. A NIST-traceable calibration certificate is included.
The power supply is not required when the IRTD-400 is used with the Kaye ValProbe system.
Why Choose the Kaye IRTD?
The Kaye IRTD has become the industry standard for precision temperature reference measurements in pharmaceutical thermal validation.
By integrating the sensor and calibration electronics into a single device, it removes many of the uncertainty sources associated with traditional reference thermometers while delivering faster, more reliable calibration workflows.
Whether you’re calibrating thermocouples, verifying RTDs or supporting complete thermal validation programmes, the Kaye IRTD provides exceptional traceability, repeatability and measurement confidence.
Supported by Withnell Sensors, you’ll also benefit from expert technical advice, UKAS calibration support and ongoing service throughout the life of your equipment.
