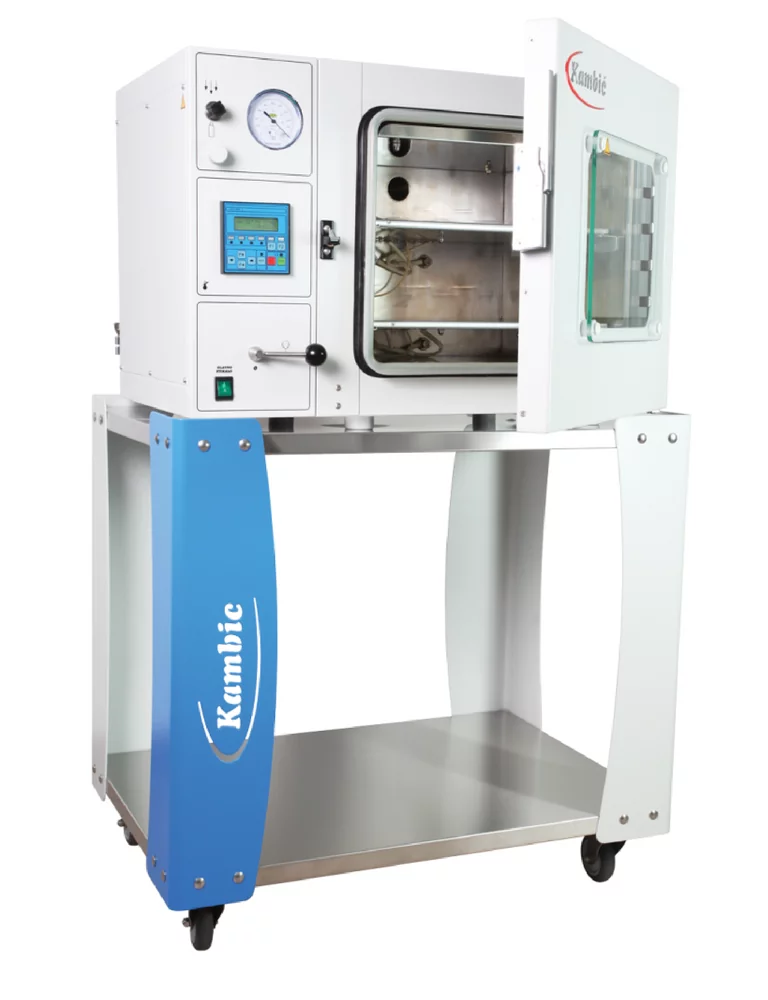

Kambic Laboratory Vacuum Ovens
[3 Models]Kambic Vacuum Ovens provide precise, low-pressure drying for heat-sensitive, hygroscopic and high-value materials.
By reducing atmospheric pressure, they enable moisture removal at significantly lower temperatures than conventional drying ovens, making them ideal for pharmaceutical, research and industrial laboratories.
Available in 8L, 25L, 50L and 130L chamber sizes, the range combines temperatures up to 200°C, heated shelves and programmable control to deliver fast, repeatable and efficient vacuum drying.
- Vacuum drying down to 1 mbar
- Heated shelves with independent temperature control
- Four chamber sizes from 8L to 130L
Vacuum Drying to 1 mbar
Efficient low-pressure drying for sensitive materials.
Temperatures up to 200°C
Precise heating for laboratory and industrial drying applications.
Heated Shelves
Uniform heat transfer for faster and more consistent drying.
Multiple Vacuum Pump Options
Choose from oil rotary vane, dry or chemistry vacuum pumps to suit your application.
Kambic Vacuum Ovens are suitable for a wide range of laboratory and industrial drying applications, including:
- Research and development laboratories
- Laboratory vacuum drying
- Pharmaceutical drying
- Low-temperature evaporation
- Dry mass determination
- Drying curve determination
- Hygroscopic material drying
- Heat-sensitive sample drying
- Food testing
- Chemical processing
- Materials research
- Pilot-scale vacuum drying
Designed for accurate, repeatable vacuum drying, Kambic Vacuum Ovens include:
- Compatible with multiple vacuum pump configurations for laboratory or chemistry applications
- Vacuum operation down to 1 mbar
- Operating temperatures up to 200°C
- Heated shelves with individual temperature control
- PLC controller with programmable drying profiles
- RS-232, USB and Ethernet communications
- AISI 304 stainless steel chamber with polished finish
- Hardened glass observation window with overpressure relief
- PT100 probe connection for direct sample temperature monitoring
- Manual vacuum break and leakage control valves
Choose from four standard Kambic Vacuum Oven models.

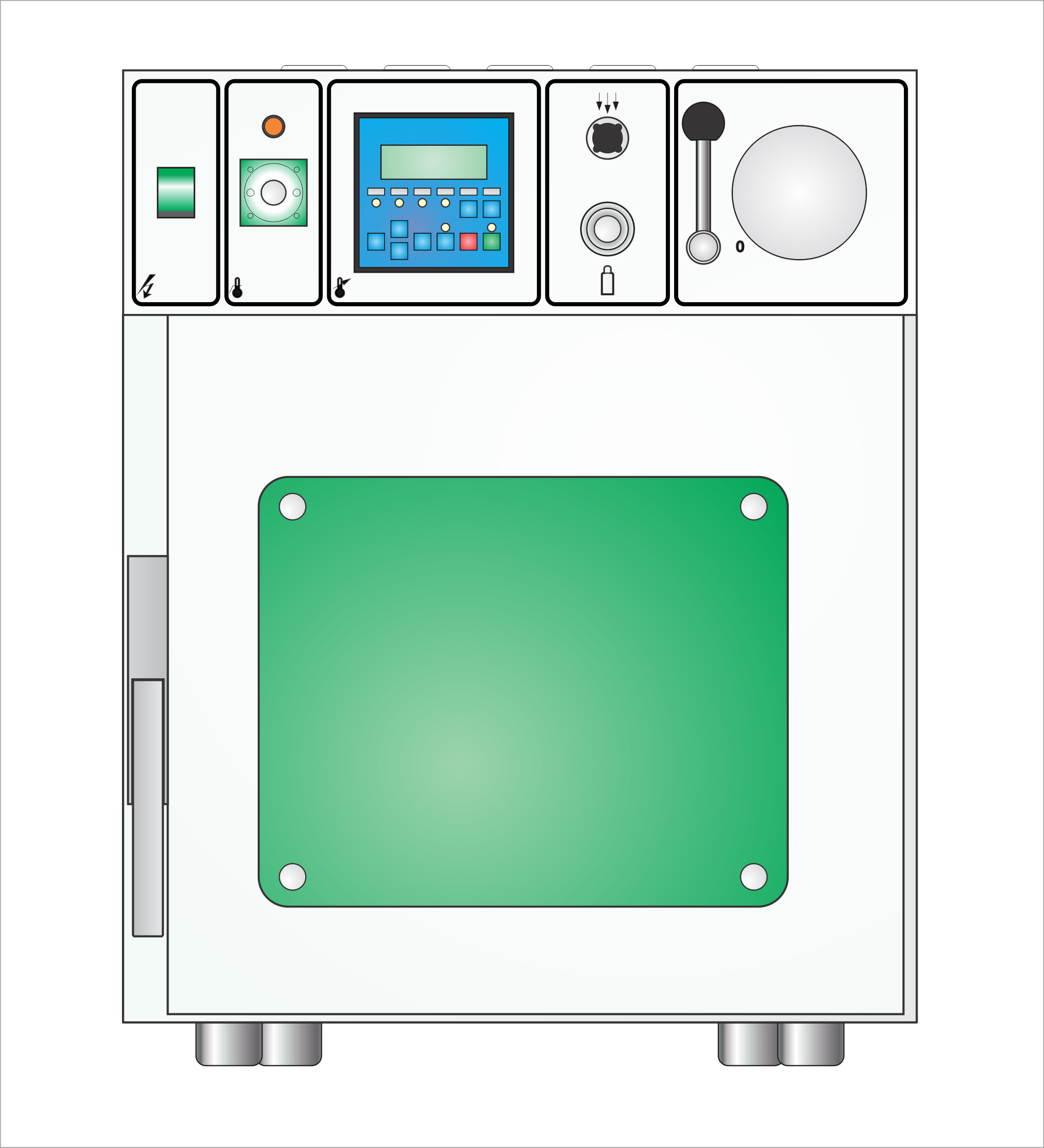

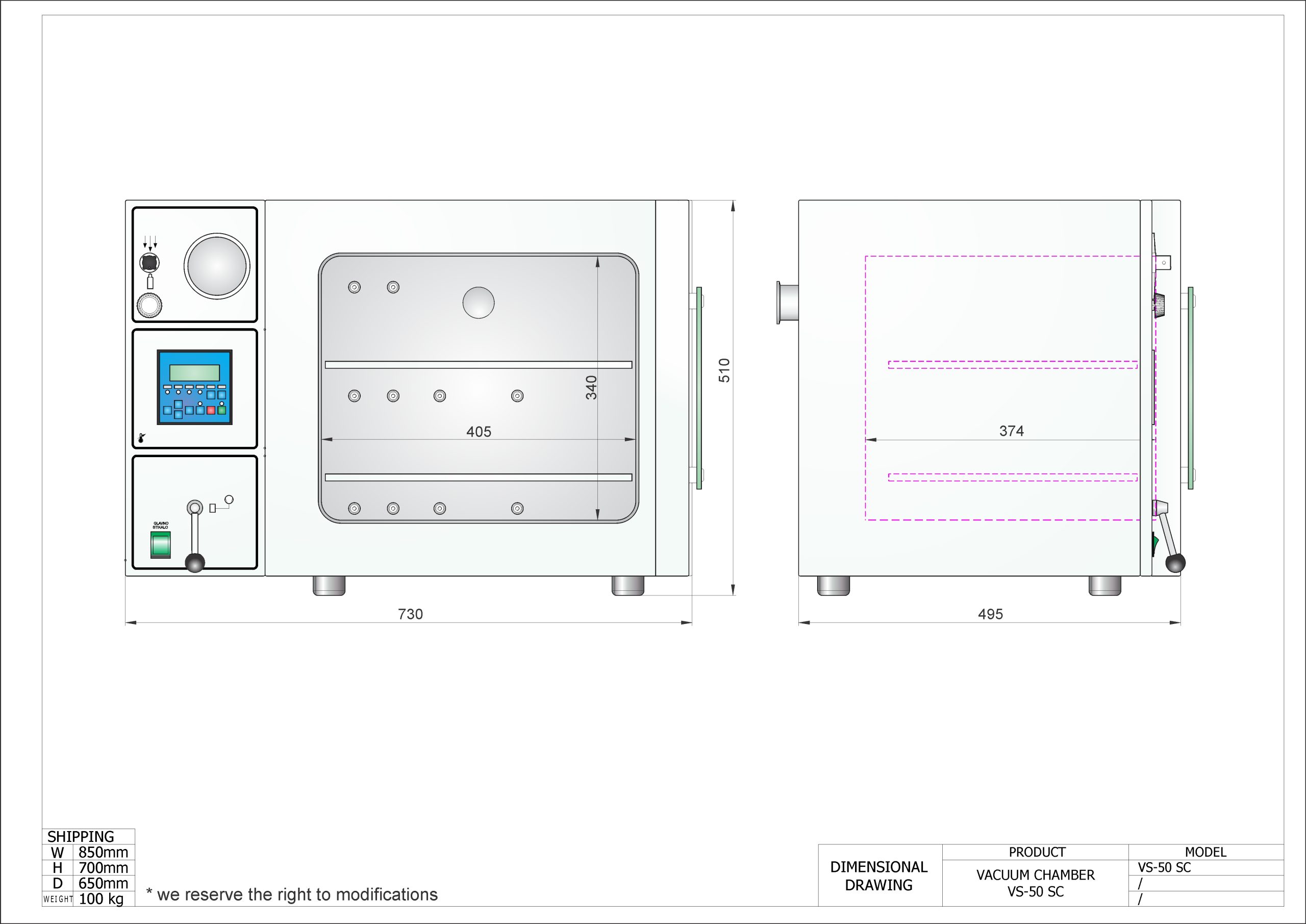

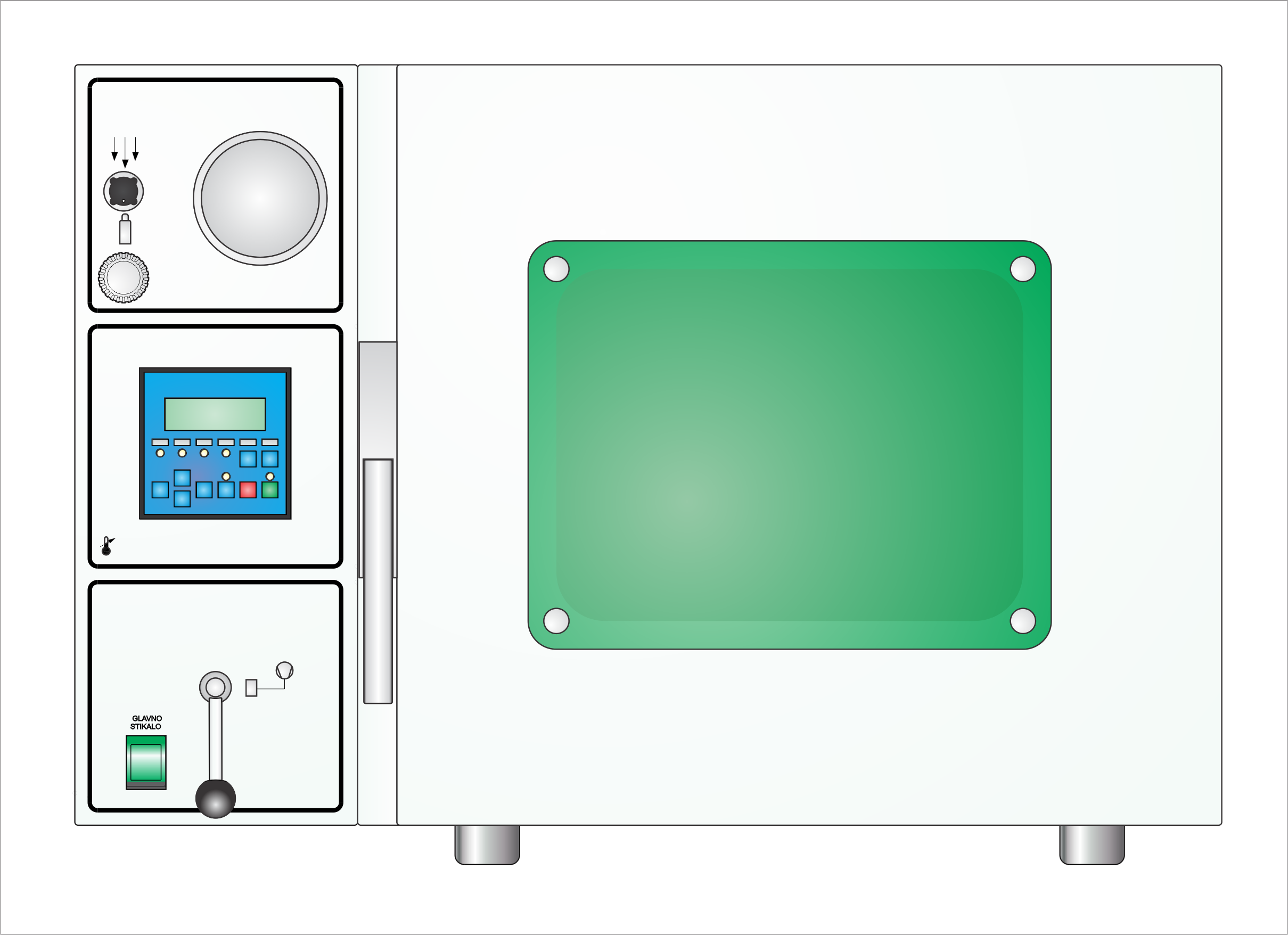

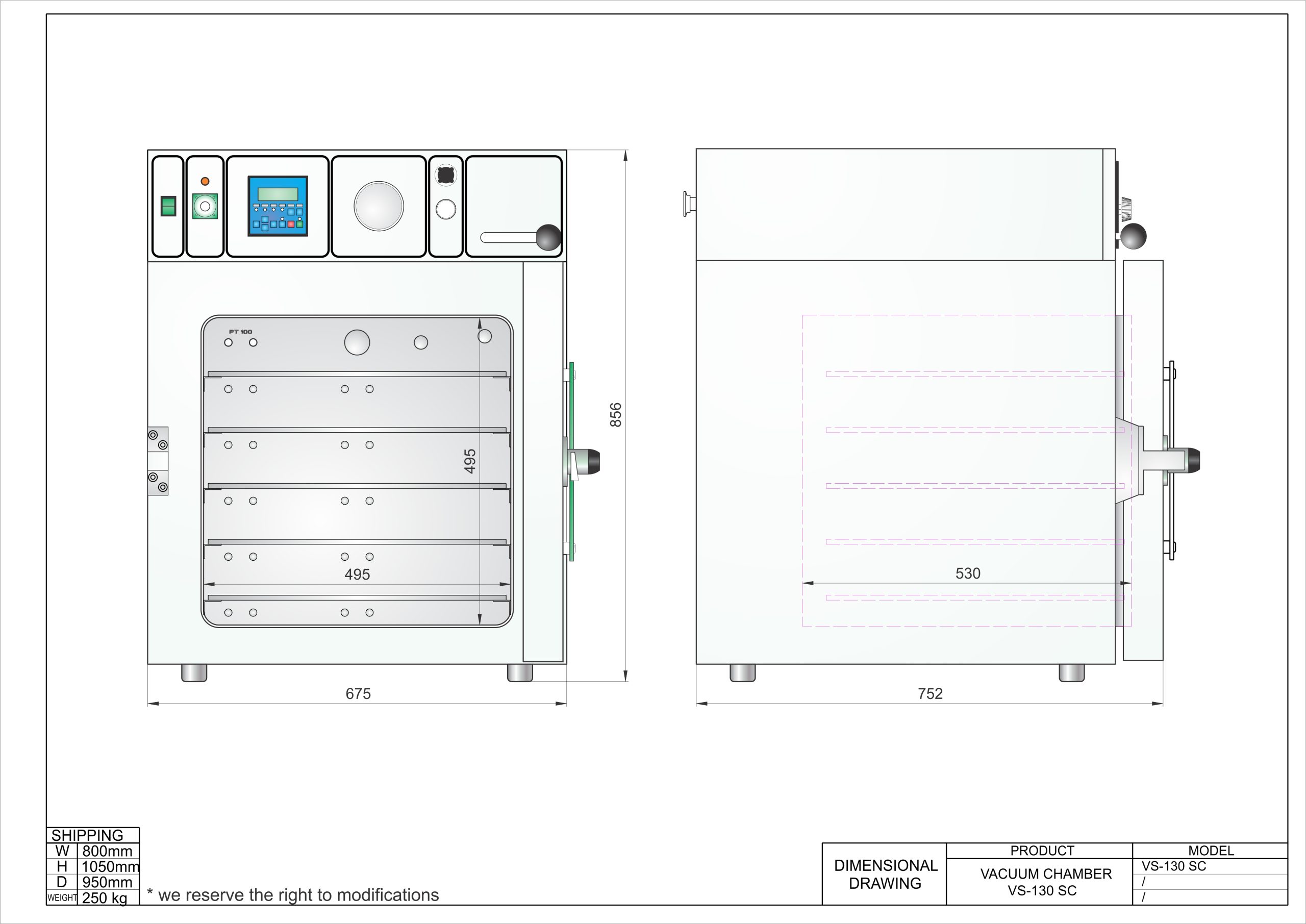

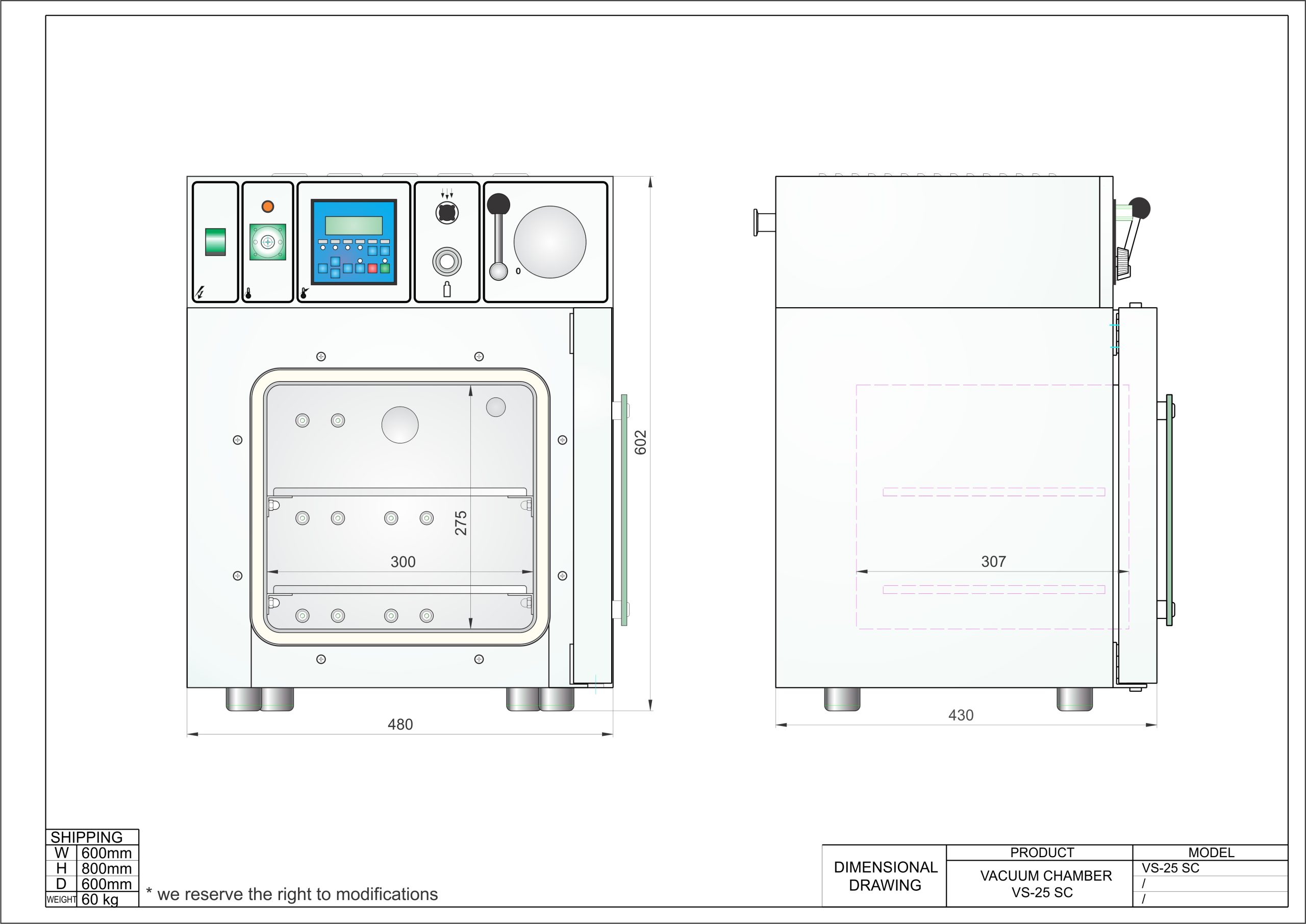

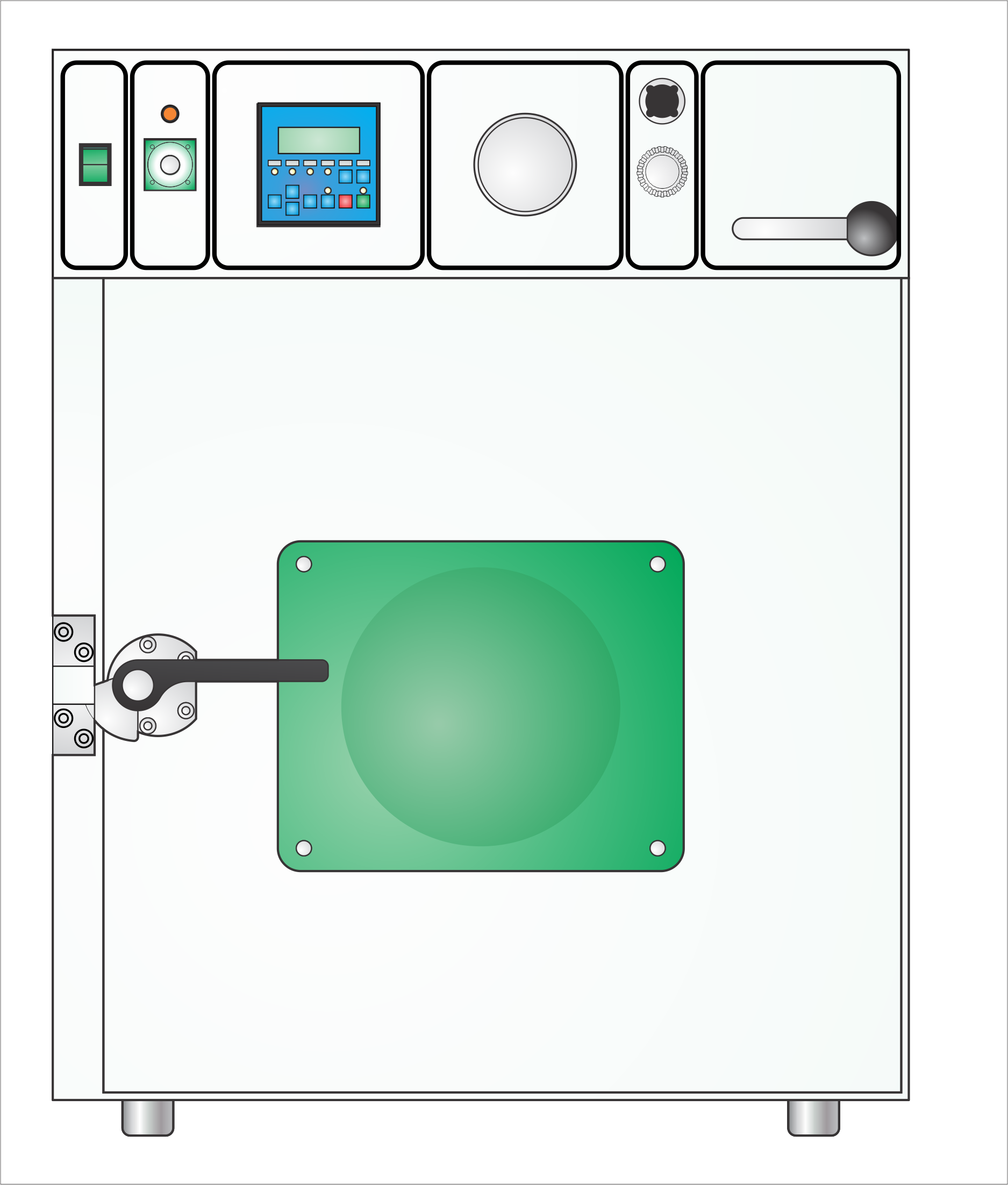

| Specification | VS-25 SC | VS-50 SC | VS-130 SC |
|---|---|---|---|
| Volume | 25 L | 50 L | 130 L |
| Temperature range | Ambient +5°C to +200°C | Ambient +5°C to +200°C | Ambient +5°C to +200°C |
| Wattage | 2,000 W | 2,500 W | 2,500 W |
| External dimensions (W×H×D) | 480 × 602 × 430 mm | 730 × 510 × 495 mm | 670 × 856 × 725 mm |
| Internal dimensions (W×H×D) | 300 × 275 × 307 mm | 405 × 340 × 370 mm | 495 × 495 × 530 mm |
| Temperature stability | ±0.1°C | ±0.1°C | ±0.1°C |
All models feature heated shelves, PID temperature control, programmable operation and communication interfaces for data logging and process monitoring.
Why Choose Kambic Vacuum Ovens?
Vacuum drying offers significant advantages when processing heat-sensitive materials.
By lowering pressure inside the chamber, moisture evaporates at lower temperatures, reducing thermal stress while improving drying speed and product quality.
Kambic Vacuum Ovens combine robust construction, precise temperature control and flexible vacuum pump options to support applications ranging from research laboratories to pharmaceutical production and industrial process development.
Withnell Sensors provides expert advice, installation support and ongoing technical service to help you select the right system for your application.
DOWNLOAD
Explore the Kambic Vacuum Oven Brochure
Download the brochure for technical specifications, model comparisons and available vacuum pump options.
