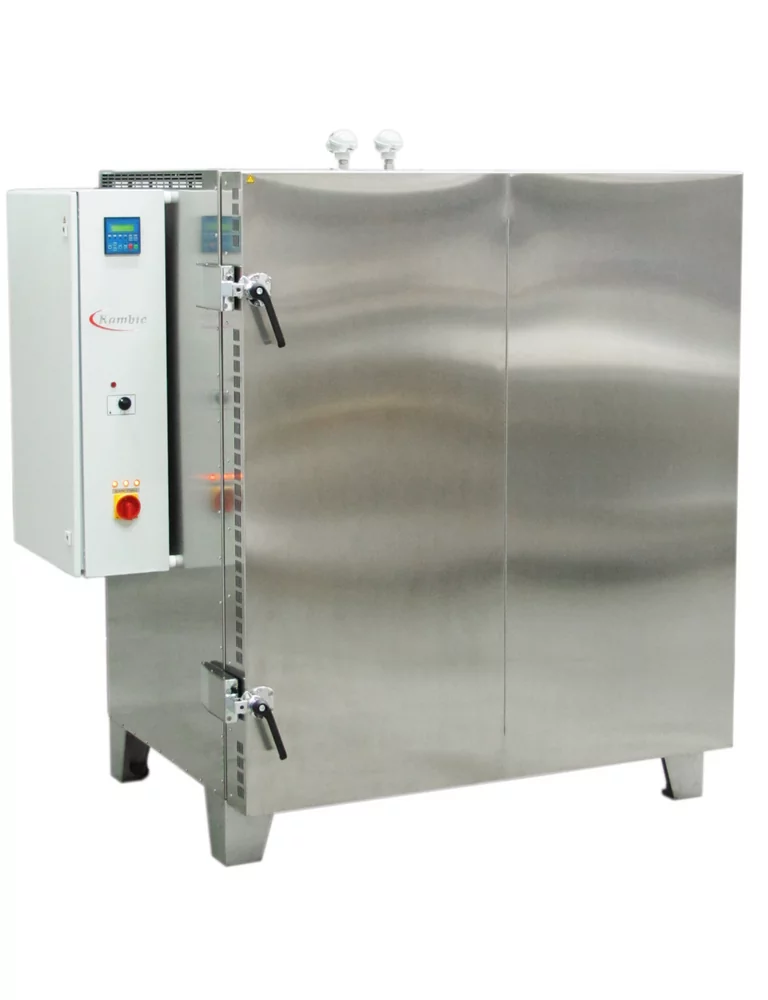

Kambic High Temperature Ovens
[4 Models]Kambic High Temperature Ovens are designed for laboratories and industrial manufacturers requiring reliable thermal processing at temperatures up to 600°C.
Whether you’re replacing a conventional laboratory oven or searching for a high or ultra high temperature oven for demanding applications, the range delivers exceptional temperature stability, intelligent programmable controls and dependable performance for heat treatment, drying and materials testing.
Available in four chamber sizes from 64 L to 875 L, Kambic High Temperature Ovens provide precise and repeatable thermal processing for research laboratories, manufacturing facilities and quality assurance environments where consistent high-temperature performance is essential.
- Maximum operating temperature of 600°C
- Four chamber sizes from 64 L to 875 L
- Designed for laboratory and industrial thermal processing
Temperatures up to 600°C
Operate at temperatures up to 600°C for demanding laboratory, industrial and materials testing applications.
Excellent Temperature Uniformity
Advanced air circulation delivers exceptional temperature stability and uniform heat distribution throughout the chamber.
Intelligent Process Control
Programmable PLC controls allow precise temperature profiles for repeatable thermal processing and testing.
Heavy-Duty Construction
Robust insulated construction with an AISI 304 stainless-steel chamber provides reliable long-term performance.
Kambic High Temperature Ovens are suitable for a wide range of laboratory and industrial heating applications, including:
- Heat treatment
- High temperature drying
- Materials testing
- Thermal ageing
- Stress relieving
- Annealing
- Sintering
- Component preheating
- Research and development
- Laboratory testing
- Industrial manufacturing
- Quality assurance
Kambic High Temperature Ovens combine precise temperature control with robust engineering for reliable laboratory and industrial operation.
Key features include:
- Heavy-duty insulated door with industrial locking system
- Operating temperatures up to 600°C
- Four chamber sizes from 64 L to 875 L
- PLC controller with programmable heating profiles
- Excellent temperature stability and chamber uniformity
- High-performance forced-air circulation
- AISI 304 stainless-steel chamber
- Adjustable over-temperature safety protection
- Adjustable stainless-steel shelves
- RS-232 connectivity with optional USB and Ethernet
The Kambic High Temperature Oven range is available in four standard chamber sizes, providing reliable thermal processing for laboratory, pilot-scale and industrial applications.

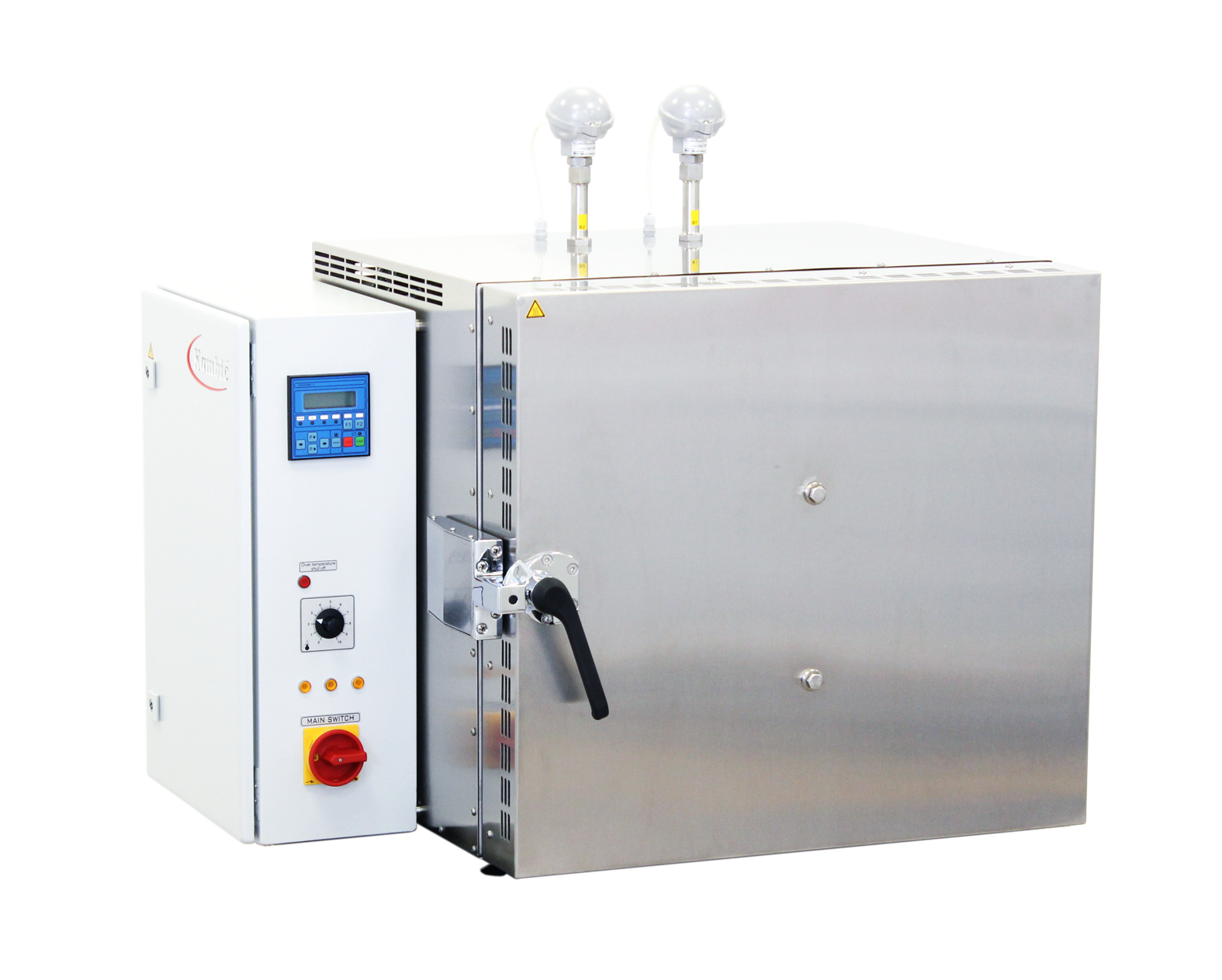

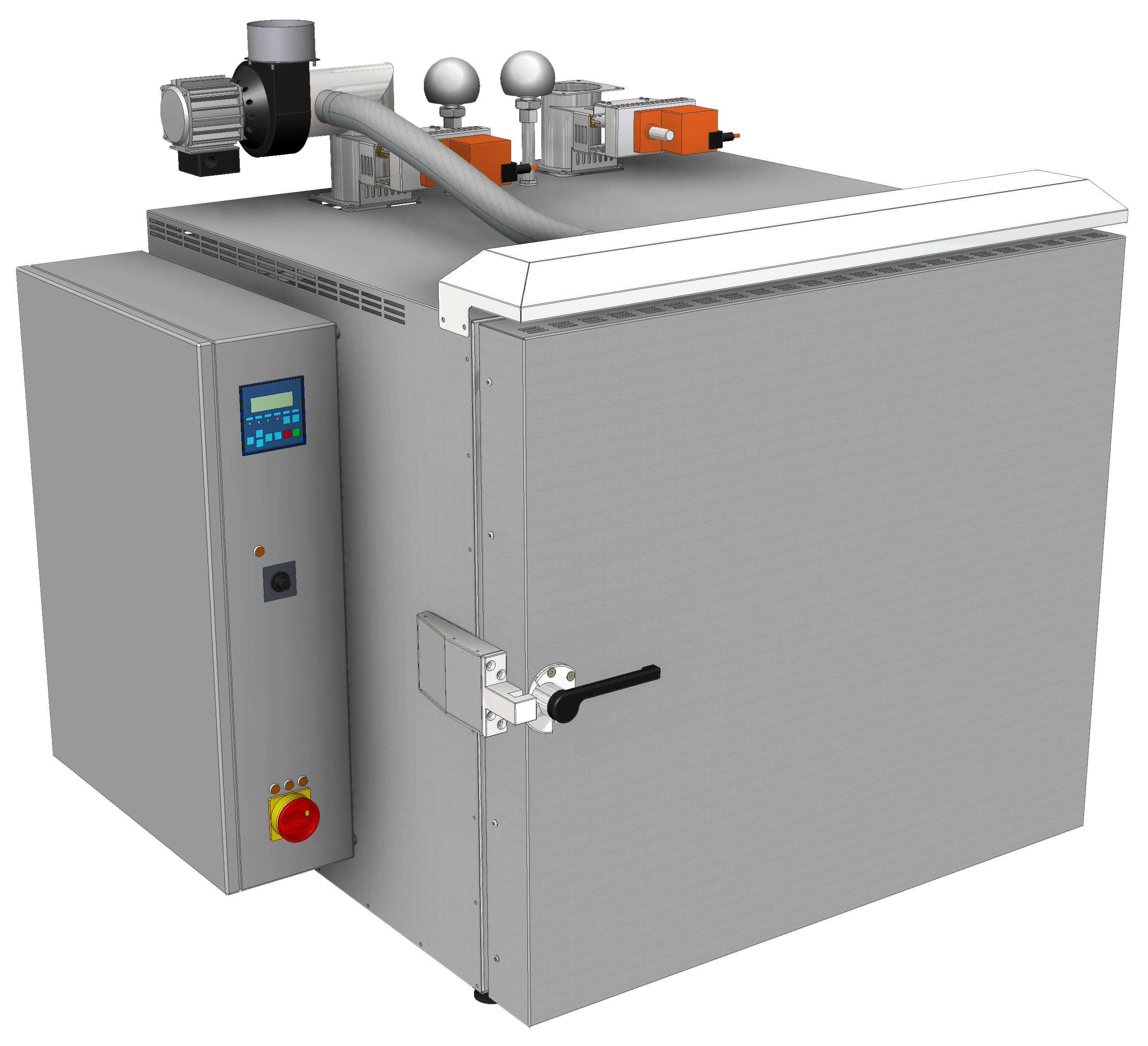

| Specification | SP-60C | SP-190C | SP-420C | SP-875 |
|---|---|---|---|---|
| Volume | 64 L | 190 L | 400 L | 875 L |
| Temperature range | Ambient +10°C to +600°C | Ambient +10°C to +600°C | Ambient +10°C to +600°C | Ambient +10°C to +600°C |
| Heat-up rate | 10°C/min | 10°C/min | 7°C/min | 5°C/min |

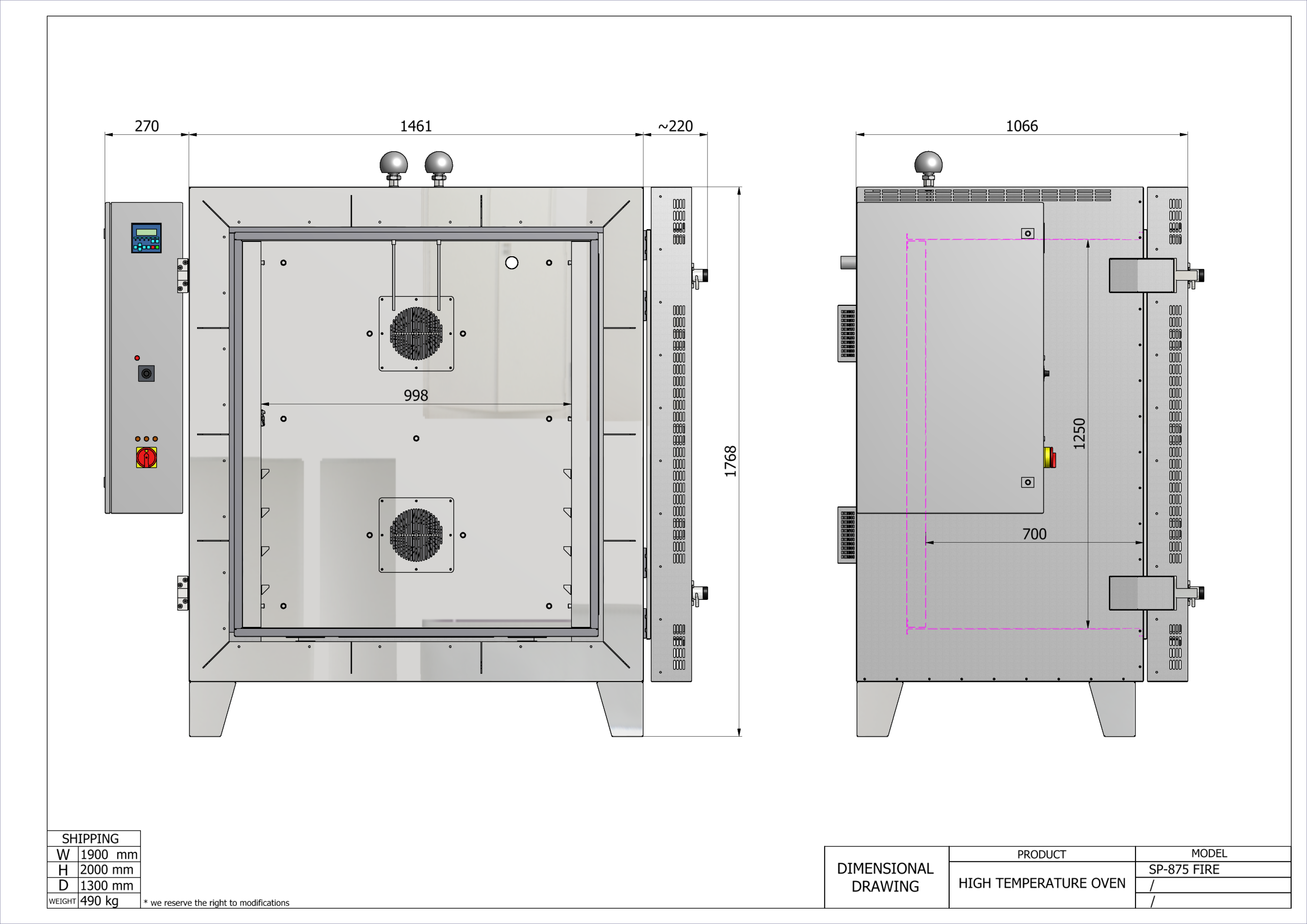

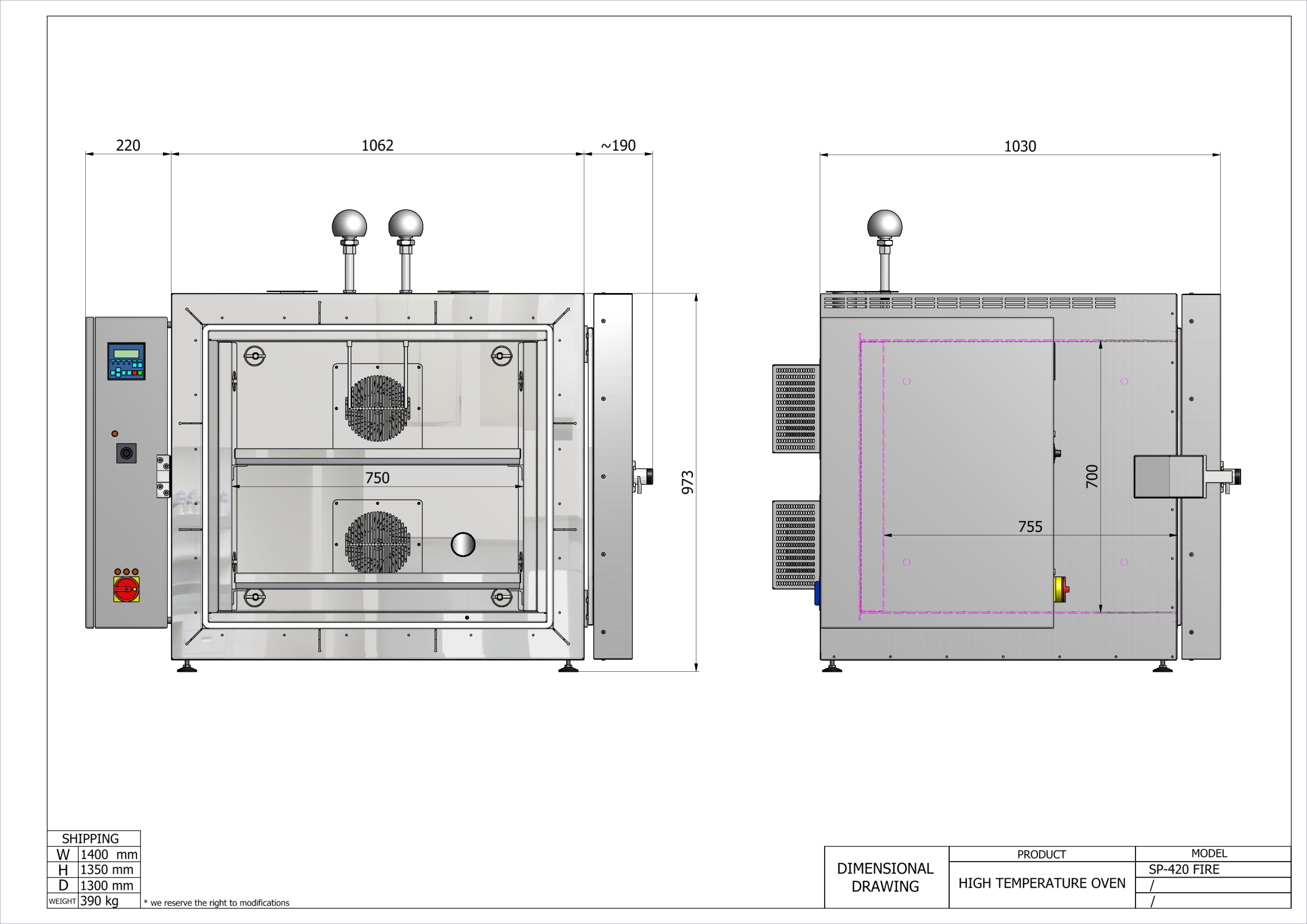

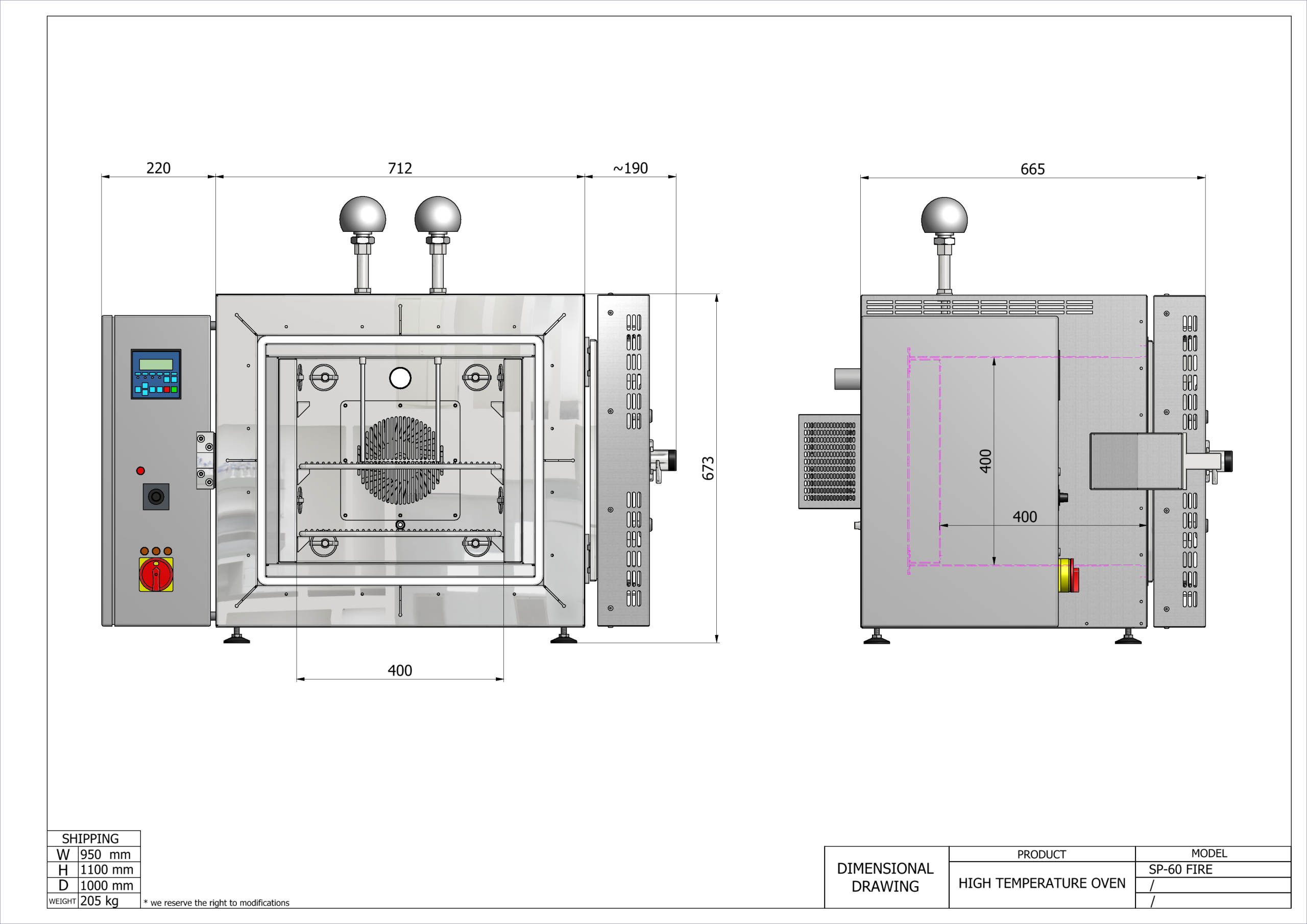

| External dimensions (W × H × D) | 712 × 673 × 655 mm | 942 × 883 × 836 mm | 1,062 × 973 × 1,030 mm | 1,461 × 1,768 × 1,066 mm |
| Internal dimensions (W × H × D) | 400 × 400 × 400 mm | 600 × 600 × 543 mm | 750 × 700 × 755 mm | 998 × 1,250 × 700 mm |
| Maximum load | 50 kg | 100 kg | 300 kg | 400 kg |
Why Choose Kambic High Temperature Ovens?
Kambic High Temperature Ovens are engineered for laboratories and manufacturers requiring accurate, repeatable thermal processing up to 600°C.
Combining intelligent PLC controls, excellent temperature stability and robust industrial construction, they provide dependable performance for heat treatment, drying, thermal ageing and materials testing across a wide range of laboratory and production environments.
For organisations evaluating high temperature ovens or comparing options alongside ultra high temperature ovens, the Kambic range offers an ideal solution for applications operating up to 600°C.
Available exclusively through Withnell Sensors, each oven is supported by expert technical advice, installation and ongoing after-sales support to ensure reliable performance throughout its lifetime.
DOWNLOAD
Download the Kambic High Temperature Oven Brochure
Download the brochure for technical specifications, model comparisons and configuration options.
