Haier LN₂ Cryogenic Freezers
[10 Models]Haier LN₂ Cryogenic Freezers provide secure long-term cryogenic storage for biological samples, stem cells, blood products and other valuable materials. Using liquid nitrogen and advanced vapour phase storage technology, they deliver reliable ultra-low temperature storage while helping to minimise cross-contamination and liquid nitrogen consumption.
- Reliable liquid nitrogen cryogenic storage for valuable biological samples
- Vapour phase storage to minimise cross-contamination
- Large-capacity biobanking solutions with excellent temperature uniformity
Vapour Phase Storage
Helps minimise cross-contamination while maintaining reliable cryogenic storage temperatures.
High Storage Capacity
Store up to 94,875 standard 2ml cryovials in selected models.
Excellent Temperature Uniformity
Advanced vacuum insulation and intelligent design provide consistent cryogenic storage conditions.
Safe & Intelligent Operation
Battery-backed controller, splash protection and one-touch defogging improve usability and sample security.
Haier LN₂ Cryogenic Freezers are designed for the long-term preservation of valuable biological materials where maintaining cryogenic temperatures is critical to sample integrity.
Typical applications include:
- Biobanking
- Stem cell storage
- Blood banks
- Cell therapy
- Clinical research
- Pharmaceutical research
- Biotechnology laboratories
- University research
- IVF and reproductive medicine
- Long-term biological sample preservation
Available in multiple capacities, the range supports everything from research laboratories to large-scale biobank facilities.
Haier LN₂ Cryogenic Freezers combine advanced cryogenic engineering with intelligent control systems to deliver dependable long-term sample preservation.
Key features include:
- Reliable long-term operation
- Liquid nitrogen cryogenic storage
- Vapour phase storage technology
- Excellent temperature uniformity
- Large-capacity cryovial storage
- Intelligent 800N controller with battery backup
- One-touch defogging
- Liquid nitrogen splash protection
- Vacuum insulation technology
- High-performance sample security
- Blood bag storage options available
13,000–38,000 Vial Capacity
| Model | 2 ml vial capacity | 5 ml vial capacity | LN₂ capacity | Outside diameter × height | Empty weight |
|---|---|---|---|---|---|
| YDD-350-326/PM | 13,000 | 5,360 | 350 L | 875 × 1,263 mm | 245 kg |

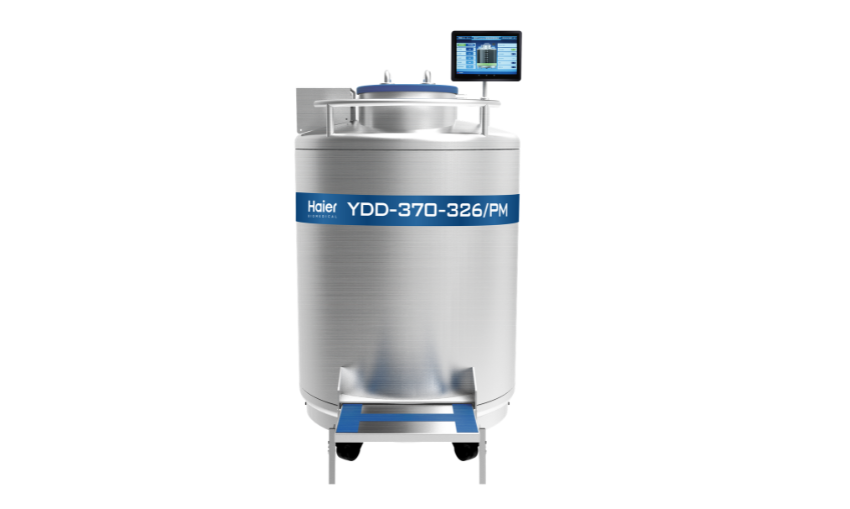

| YDD-370-326/PM | 15,600 | 6,432 | 370 L | 875 × 1,370 mm | 283 kg |

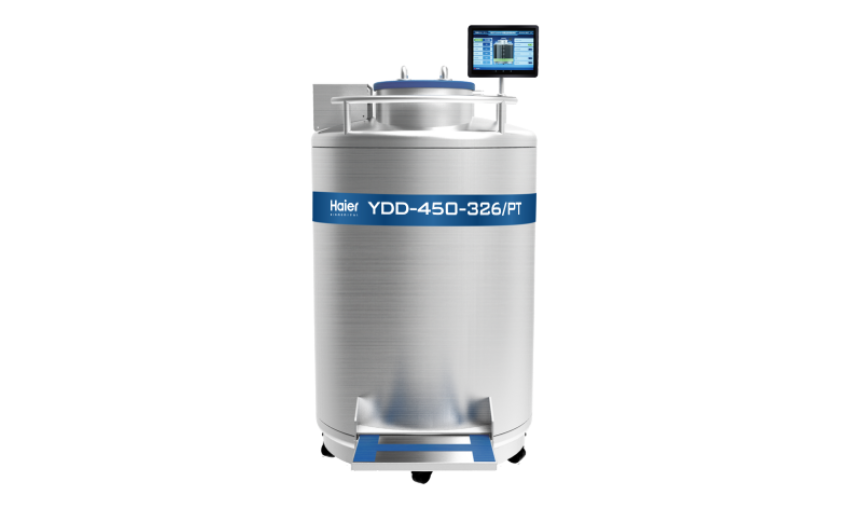

| YDD-450-326/PT | 21,000 | 10,548 | 480 L | 875 × 1,570 mm | 308 kg |
| YDD-550-445/PM | 27,000 | 11,220 | 587 L | 1,104 × 1,266 mm | 328 kg |

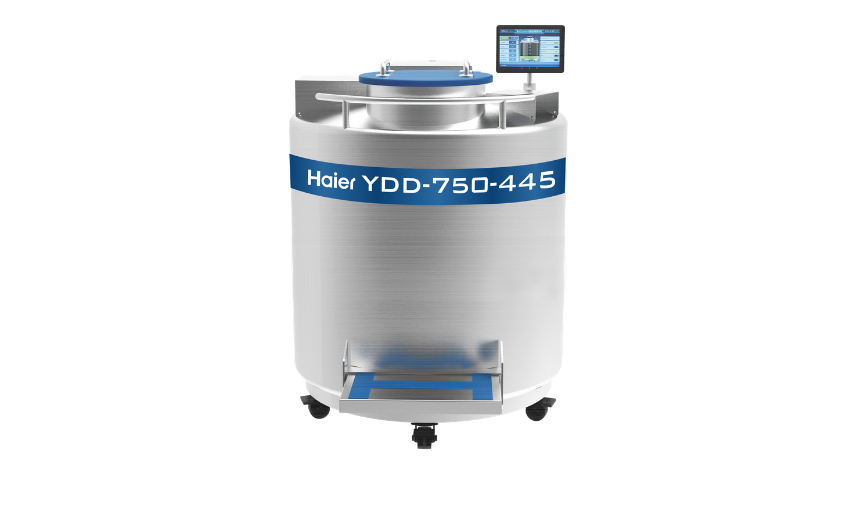

| YDD-750-445/PM | 37,800 | 17,952 | 783 L | 1,104 × 1,486 mm | 372 kg |
43,000–95,000 Vial Capacity
| Model | 2 ml vial capacity | 5 ml vial capacity | LN₂ capacity | Outside diameter × height | Empty weight |
|---|---|---|---|---|---|
| YDD-850-465/PM | 42,900 | 18,844 | 890 L | 1,190 × 1,499 mm | 441 kg |
| YDD-1000-465/PT | 51,000 | 25,470 | 1,014 L | 1,190 × 1,619 mm | 495 kg |

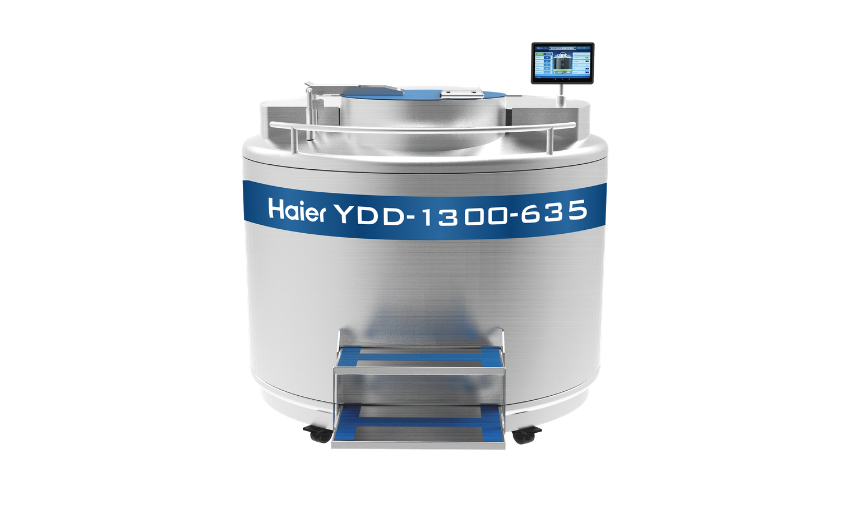

| YDD-1300-635/PM | 58,500 | 28,944 | 1,340 L | 1,565 × 1,341 mm | 851 kg |
| YDD-1600-635/PM | 76,050 | 33,768 | 1,660 L | 1,565 × 1,534 mm | 914 kg |
| YDD-1800-635/PT | 94,875 | 46,665 | 1,880 L | 1,565 × 1,661 mm | 985 kg |
Why Choose Haier LN₂ Cryogenic Freezers?
Long-term cryogenic storage demands exceptional reliability, temperature stability and sample protection. Haier LN₂ Cryogenic Freezers are designed to maximise storage capacity while reducing liquid nitrogen consumption through advanced insulation technology and intelligent system design.
The range supports both vapour and liquid phase storage, enabling laboratories to choose the most appropriate storage method for their application while helping to reduce the risk of cross-contamination.
Combined with intelligent monitoring, excellent temperature uniformity and flexible storage configurations, Haier Cryogenic Freezers provide dependable solutions for biobanking, cell therapy and life science research.
As an authorised Haier Biomedical partner, Withnell Sensors provides expert guidance to help you specify the right cryogenic freezer, alongside installation, validation and ongoing technical support.
DOWNLOAD
Explore the Haier Biobank Series Brochure
Compare the complete large-scale liquid nitrogen storage range, with capacities from 13,000 to more than 94,000 two-millilitre vials.
Service & Maintenance
Preventative maintenance, equipment health checks and repair support for Haier Biomedical, FARRAR and Kambic equipment supplied by Withnell Sensors.
- Inspecting doors, handles, gaskets and seals
- Checking backup batteries and electrical components
- Inspecting pipework and testing for refrigerant leaks
- Removing ice and cleaning key components
- Completing operational and safety checks
