DataTrace Temperature Data Loggers
[6 Models]DataTrace temperature data loggers provide accurate temperature monitoring across validation, sterilisation, thermal processing, storage and controlled manufacturing applications.
The range includes compact MPIII loggers for self-contained data collection, wireless MPRF loggers for real-time process visibility and specialist probe configurations for vials, sealed containers, pipework and difficult-to-access measurement points. Depending on the selected model and thermal protection, temperatures from -80°C to +400°C can be monitored.
- Specialist configurations for diverse products, equipment and processes
- High-accuracy temperature monitoring across an extensive operating range
- Choice of self-contained logging or real-time wireless data
High-Accuracy Monitoring
Capture reliable temperature measurements during critical validation and thermal processes.
Standalone or Wireless Data
Choose self-contained MPIII logging or real-time wireless MPRF monitoring.
Specialist Probe Options
Monitor vials, containers, pipework, products and difficult-to-access locations.
Built for Validation
Designed for demanding pharmaceutical, food-processing and industrial applications.
DataTrace temperature data loggers support applications ranging from low-temperature storage to high-temperature processing. The choice of compact, wireless and specialist probe configurations allows measurements to be taken close to or directly inside products, containers and processing equipment.
- Autoclave and steriliser validation
- Pasteurisation and thermal processing
- Chilling, freezing and controlled storage
- EtO sterilisation and depyrogenation
- Lyophilisation and freeze drying
- Vial and bottle temperature monitoring
- Canning and pouch processing
- Steam-in-place and clean-in-place systems
- Product and ambient temperature comparison
- Pharmaceutical and food manufacturing
Withnell Sensors can help you select the appropriate logger, probe format and thermal protection for your process and operating temperature.
Extensive Temperature Range
Monitor temperatures from -80°C to +400°C, depending on the selected logger, probe and thermal protection configuration.
Standalone or Real-Time Data
Choose compact MPIII loggers for self-contained data collection or wireless MPRF models for real-time process visibility.
High Measurement Accuracy
Selected models provide accuracy down to ±0.1°C, supporting reliable validation, qualification and process-monitoring studies.
Application-Specific Configurations

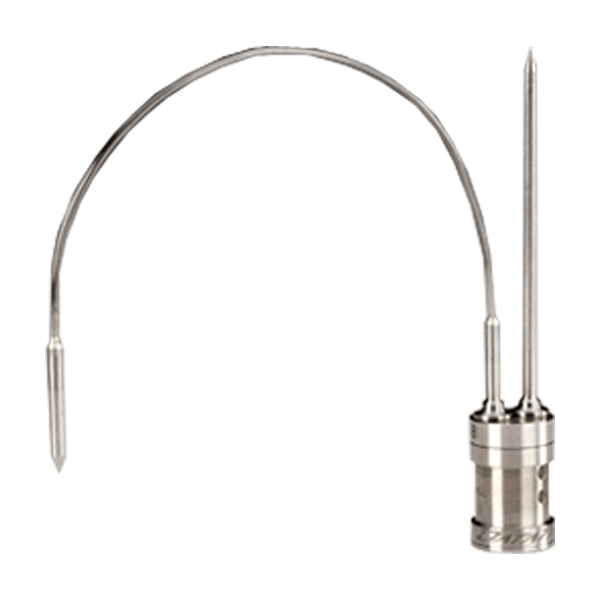

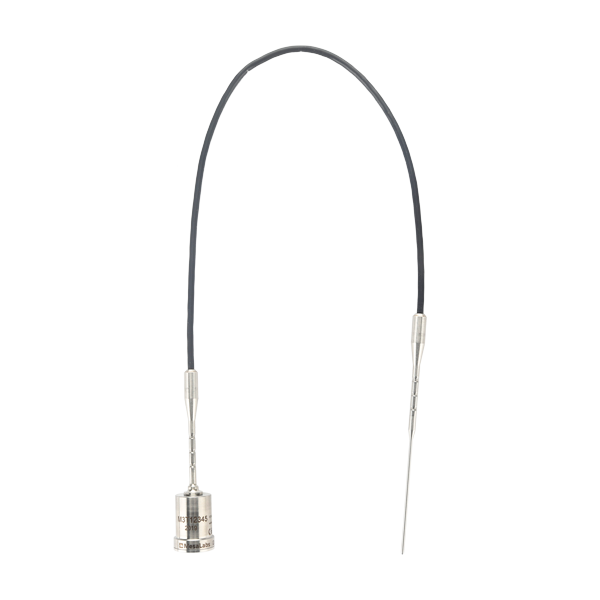

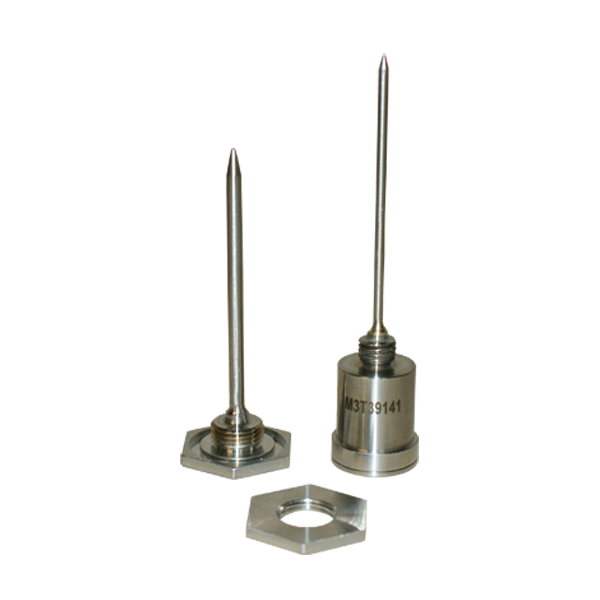

Choose Micro Flex, Thermowell, Dual Probe or Needle Tip configurations for vials, sealed containers, pipework and challenging measurement locations.
NIST-Traceable Calibration
Factory calibration provides traceable measurement data to support quality control, validation and regulatory requirements.
Durable Construction
Stainless-steel construction and suitable thermal protection enable reliable monitoring in demanding low- and high-temperature processes.
Secure Data Management
DT Pro software supports study configuration, data analysis and secure reporting in accordance with FDA 21 CFR Part 11 requirements.
Intrinsically Safe Options
ATEX certification supports suitable use within applications where intrinsic safety is required.

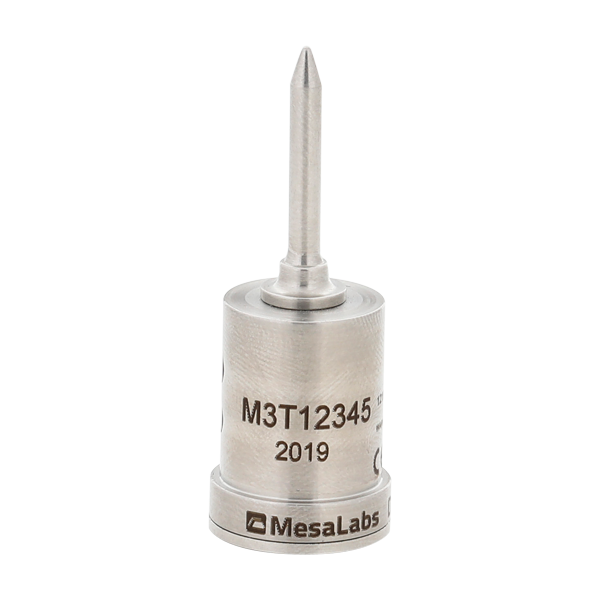

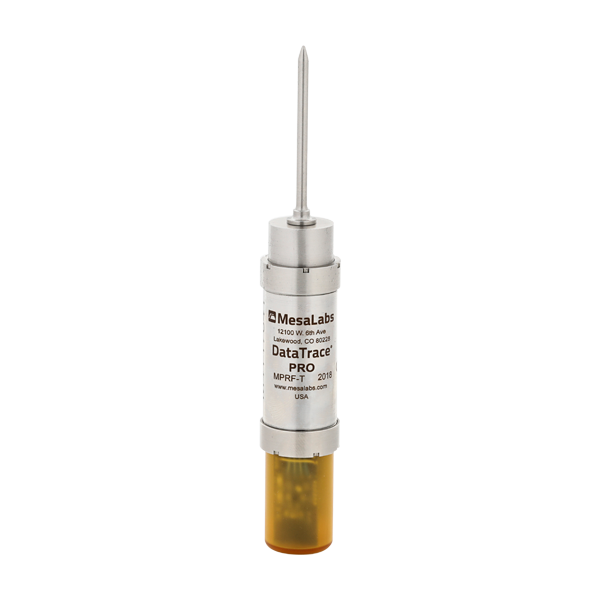

Core Temperature Data Loggers
| Specification | MPIII Temperature Data Logger | MPRF Temperature Data Logger |
|---|---|---|
| Data collection | Internal logging | Real-time wireless or internal logging |
| Operating temperature | Down to -20°C Up to +400°C with MPIII HiTemp EXT | -80°C to +140°C +100°C to +360°C with HiTemp EXT thermal pack -40°C to +400°C with thermal protection |
| Temperature accuracy | ±0.1°C for MPIII Temp ±0.5°C for MPIII HiTemp | ±0.3°C from -80°C to -40°C ±0.1°C from -40°C to +140°C |
| Wireless range | Not applicable | Up to 30 m line of sight |
| Radio frequency | Not applicable | 2.4 GHz ISM band |
| Memory | 16,000 temperature observations | 8,192 observations 16,384 in compressed mode |
| Sampling interval | 1 second to 1 hour | With radio: 5 seconds to 1 hour Without radio: 1 second to 1 hour |
| Resolution | 0.001°C | Not specified |
| Dimensions | 18 × 20 mm, excluding probe | 23.2 × 94 mm |
| Weight | 15 g | 66 g |
| Construction | 316 stainless steel with sapphire IR windows | 316 stainless steel with ULTEM or PCTFE |
| Calibration | NIST-traceable factory calibration | NIST-traceable factory calibration or field calibration |
| Battery | Field-replaceable lithium battery | Field-replaceable AA lithium battery |
| Battery life | Not specified | 6 months to 1 year, depending on use |
| Clock accuracy | 26 seconds per 24 hours | 10 seconds per 24 hours at +25°C |
| Certification | ATEX for intrinsic safety | ATEX for intrinsic safety; FCC Part 15 compliant |
| Compatible software | DT Pro | DT Pro |
Specialist Temperature Logger Configurations
| Specification | Micro Flex | Thermowell | Dual Probe MPIII | Needle Tip MPIII |
|---|---|---|---|---|

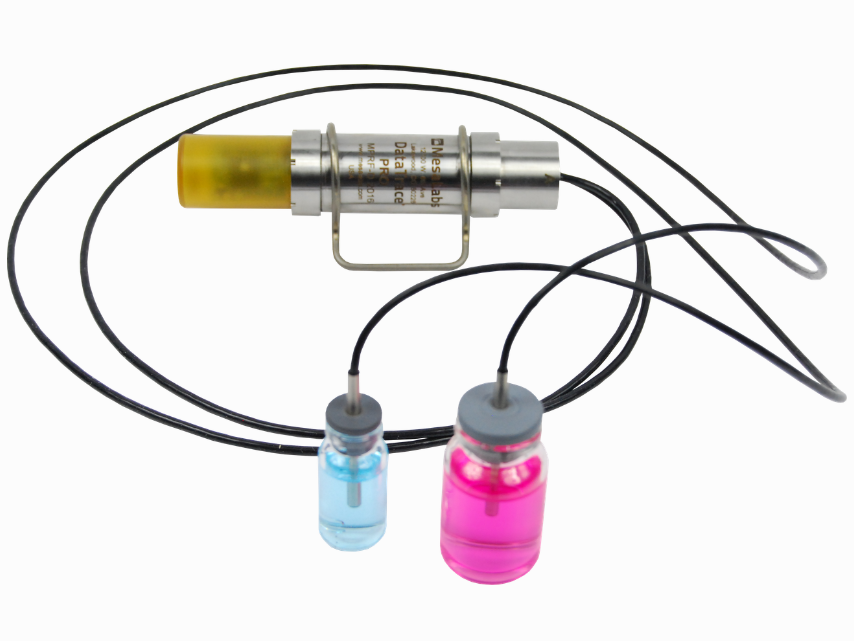

| Primary application | Lyophilisation, freeze drying and vial monitoring | Canning, sealed containers, SIP and CIP | Two-point product and ambient monitoring | Autoclave cycles, vials and restricted spaces |
| Data collection | Real-time capable | Internal logging | Internal logging | Internal logging |
| Operating temperature | -80°C to +140°C | -20°C to +140°C | Down to -20°C Up to +400°C with HiTemp EXT | Down to -20°C Up to +400°C with HiTemp EXT |
| Temperature accuracy | ±0.35°C from -80°C to -40°C ±0.2°C from -40°C to +140°C | ±0.1°C | ±0.1°C for MPIII Temp ±0.5°C for MPIII HiTemp | ±0.1°C for MPIII Temp ±0.5°C for MPIII HiTemp |
| Number of measurement points | Up to two | One | Two | One |
| Memory | 8,192 observations 16,384 in compressed mode | 16,000 observations | 16,000 observations | 16,000 observations |
| Sampling interval | With radio: 5 seconds to 1 hour Without radio: 1 second to 1 hour | 1 second to 18 hours | 1 second to 1 hour | 1 second to 1 hour |
| Resolution | Not specified | Not specified | 0.001°C | 0.001°C |
| Logger dimensions | 23.2 × 94 mm | Not specified | 18 × 20 mm | 18 × 20 mm |
| Weight | 170 g | 15 g | 15 g | 15 g |
| Construction | 316 stainless steel with ULTEM or PCTFE | 316 stainless steel with sapphire IR windows | 316 stainless steel with sapphire IR windows | 316 stainless steel with sapphire IR windows |
| Calibration | NIST-traceable factory or field calibration | NIST-traceable factory or field calibration | NIST-traceable factory calibration | NIST-traceable factory calibration |
| Battery | Field-replaceable AA lithium | Field-replaceable lithium | Field-replaceable lithium | Field-replaceable lithium |
| Certification | ATEX; FCC Part 15 compliant | ATEX | ATEX | ATEX |
Why Choose DataTrace Temperature Data Loggers?
DataTrace temperature data loggers combine accurate measurement with a wide choice of logger and probe configurations. From compact standalone devices to wireless real-time systems, the range can support monitoring across products, containers, equipment and complete thermal processes.
Specialist Micro Flex, Thermowell, Dual Probe and Needle Tip options make it possible to collect meaningful measurements from vials, sealed systems, pipework and restricted locations. NIST-traceable calibration and FDA 21 CFR Part 11-compliant software support dependable results and auditable records in regulated environments.
As an authorised DataTrace supplier, Withnell Sensors can help you select the correct logger, probe configuration and thermal protection, then provide system configuration, training and ongoing technical support.
DOWNLOAD
Download the DataTrace Temperature Data Logger Brochure
Download detailed specifications, model comparisons and application guidance for the complete DataTrace temperature logger range.
Talk to a technical specialist
We are always on hand to offer expert and impartial advice and technical support.
